Model Number: 80mm;Launch Date: 2015;Brand Name: NEKING;Style: Black And White;Supports Network Printing: Wired/Wireless;Max. Resolution: 203dpi;After-sale Service: National Joint Guarantees;Use: Receipt Printer;Black Print Speed: 260mm/Seconds;Internal Memory: 4MB;Double-sided Printing: No;Application: For Commercial;Color Print Speed: NO;Type: Dot-matrix;Consumable Type: Separate Toner;Dot Matrix Printer Type: Ticket printers;Weight: 1.5kg;Print Speed: 40ppm;Voltage: 100-240V;Paper Feed Mode: Roll Feed;Size: 183mmX141mmX139mm;Interface Type: USB+Ethernet+Serial port;Max Paper Size: Width: 80mm;Color: Black;

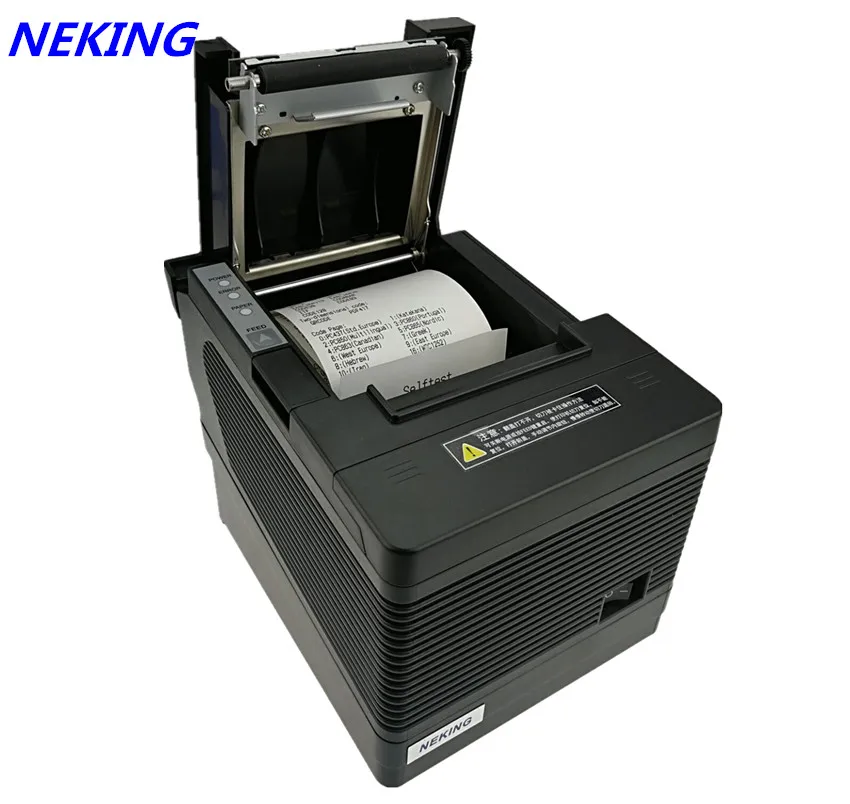

80mm receipt POS printer Automatic cutter bill Thermal printer USB Ethernet Serial Three ports are integrated in one printer
80mm thermal printer receipt bill POS printer USB Ethernet Serial port Three ports are integrated in one printer Automatic cutter
core thermal receipt printer, is a high-end appearance, new varieties of high cost, there are beautiful shape, but also has excellent quality.To meet your various printing needs, provide strong support.
Functional characteristics
--Support for a variety of international languages and scripts
-- Support print job tips and error alarm function
-- driving high-speed download and print mode, supports Linux system drive
--Support black mark detection function
--Increase avoid "missing orders" function
--Supports Ethernet and Serial port monitoring function
--download store and print Logo trademark
--Support 256K Bytes NV Logo download store and print Logo trademark
Technical parameters:
Print
Printing method Direct thermal line
Print width 72mm paper width
Point density 576 dots / line, or 512 dots / line
Printing speed 260mm/s
Paper 79.5 ± 0.5 mm × φ80 mm
Line spacing 3.75 mm (available command to adjust line spacing)
Number of columns
80mm paper: 80mm Paper: Font A - 42 columns or 48 / Font B - 56 columns or 64 / Jane, Traditional --21 column or 24
Character size
ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 dots)
Simplified / Traditional: 3.0 × 3.0mm (24 × 24 points)
Barcode characters
Extended character table PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic),
West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
CODE39 / ITF / CODABAR / CODE93 / CODE128
Cutter
semi-automatic cutter cut
Buffer
Input buffer 2048k bytes
NV Flash 256k bytes
Power supply
Power Adapter Input: AC 110V--240V, 50 ~ 60Hz
Power Output: DC 24V / 2.5A
Cash Drawer Output DC 24V / 1A
Physical Characteristics
Weight 1.3 kg
Dimensions 183mmX141mmX139mm (L × W × H)
Environmental Requirements
Working temperature: 0 ~ 45 , Humidity: 10 ~ 80%
Storage temperature: -10 ~ 60 , Humidity: 10 ~ 90% (non-condensing)
Lifetime
Cutter life one million times
100 km printhead life
Interface Type: USB Ethernet Serial Three ports are integrated in one printer
driver system: win 7/ Win 8 / Win 10 / Win XP/ Win 9X/ Win ME/ Win 2000/ Win 2003/Win Vista
A. USB port B. serial port C. network(LAN) port D. Cash drawer port E. Power port
1. Printer 2. Power adapter 3. USB cable 4. Plug 5. Install the driver CD and instructions 6. Print paper 7. Serial port line
