Features Of 4CH DVR
1. P2P Cloud Easy Remote View by Device Serial Number.
2. 4 Channel H.264 Pentaplex DVR with VGA
3. Video Input/Output: BNC 4CH / BAN 1CH
4. Audio Input/Output: RCA 1CH / RCA 1CH
5. Video Compression: H.264
6. Display Frame Rate:NTSC:120fps/ PAL:100fps,Recording Frame Rate:120fps / PAL:100fps
7. Pentaplex Function: Live View, Video Recording, Playback, Mobile Phone View & Network Monitoring
8. 1×USB Mouse, 1x power adapter 12v2a
9. 1 SATA Hard Disk interface
10. Dimension: 23cm * 19.5cm * 4.5cm; Net weight: 510g
Specifications:
| OPERATION SYSTEM | Linux |
| VIDEO | |
| VIDEO SYSTEM | NTSC/PAL Switch Selectable |
| INPUT | BNCx4,1.0Vp-p,75ohm |
| Video Output | 1BNC/1 HDMI / 1 VGA |
| SPOT | NO |
| AUDIO | |
| INPUT | 4CH , RCA |
| OUTPUT | 1CH, RCA |
| CONTROL | |
| MOUSE | USB2.0 |
| IR CONTROLLER | No |
| STORAGE | |
| BUILD IN INTERFACE | SATA 3.5\'\' HDD: 1 HDD up to 2TB (No HDD Included) |
| DISPLAY | |
| DIVISION | 1, 4 |
| OPERATIONAL | |
| COMPRESSION | H.264 Main Profile |
| RECORDING MODE | Manual/Schedule/Motion Detection/Sensor |
| RESOLUTION | NTSC:D1(704x480),HD1(704x240),CIF(352x240) |
| PAL:D1(704x576), HD1(704x288), CIF(352x288) | |
| RECORD FRAME RATE | NTSC:12FPS@960H 41 |
| PAL:12FPS@960H 41 | |
| 4CH D1 Realtime Recording | |
| QUALITY | Worst, Worse, General, Good, Better, Best |
| MOTION DETECTION | YES |
| PLAYBACK | |
| PLAYBACK FRAME RATE(PAL) | 120(100)FPS@HD1; 4CH HD1 |
| MULTI CHANNEL PLAYBACK | 1, 4 |
| SEARCH METHOD | Time, Event, Channels and Calendar |
| COMMUNICATION | |
| REMOTE SOFTWARE | Remote Client, IE Brower, Mobile, CMS, Firefox, Google Chrome |
| REMOTE OPERATION | Remote view, remote playback, remote setup |
| NETWORK SERVICE |
|
| MOBILE PHONE | Support Windows OS, Symbian OS, iPhone ,Blackberry and Android operation system Mobile phone |
| WAN RJ45 | 10/100 Mbit/s |
| GUI INTERFACE | Supported GUI 16 Bit True Color |
| PTZ PROTOCOL | Yes, RS485 |
| BACKUP | |
| EXTERNAL | 2*USB2.0 |
| NETWORK | YES |
| GENERAL | |
| ALARM IN/OUT | NO |
| OPERATION TEMPERATURE | 10°~55° |
| WORKING HUMIDITY | 10% ~ 90% |
| POWER CONSUMPTION | DC 12V 2A |

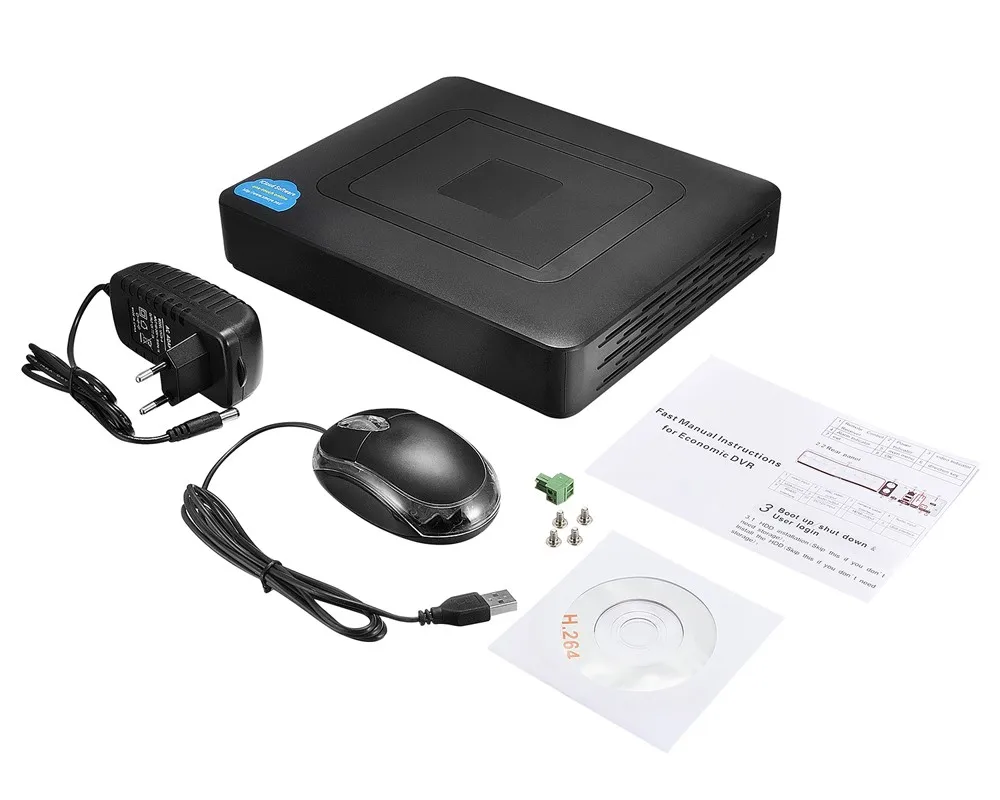

Package including:
DVR x 1,
User Manual x 1,
CDx1,
USB Mouse x 1,
Power Plug 12v2a x 1
Features of 8CH DVR :
1. 8 Channel H.264 DVR with VGA, support 8CH D1 real-time recording
2. Hexaplex Functions: Live, Recording, Playback, Backup, Control & Net transmission
3. Support always, schedule and motion detection recording mode
4. Supports remote view by 3G Mobile phone, Mobile Phone view based on Symbian, Windows OS Mobile phone, iPhone, Blackberry & Android operation system
5. Multi-language OSD (27 kinds of languagess):Arabic, Czech, English, Finnish, Greek, Indonesian, Italian, Japanese, Portuguese, Russian,Thai, T-Chinese,
S-Chinese, Turkish, Brazilian, Bulgarian, Farsi, French, German, Hebrew, Hungarian, Polish, Romanian, Spanish, Swedish, Vietnamese etc..
6. Video & Audio back-up to USB 2.0, USB flash disk ,USB hard disk, USB CD/DVD-RW & Network
7. System self-recovery with recording & settings memory after power restores
8. Remote access view, recording, playback, DVR setup and video file back-up via IE
9. One SATA HDD, Capacity up to 2TB
10. Supports Motion Detection and Email Notification
11. Support one IE browser centralized monitoring and CMS Software for multiple DVR (up to 20 DVR simultaneously)
12. Dimension: 23cm*20cm*4.5cm; net weight: 0.6kg
Specification:
| Product Category | 8CH Standalone DVR | |
| Model No. | AP-BH08E-B | |
| System | Compression Format | H.264 |
| OS | Embedded Linux | |
| Video | Input | 8CH BNC (1.0Vp-p, 75Ω) |
| Output | 1*BNC Mainout,1*VGA | |
| Audio | Audio Input | 4CH |
| Audio Output | 1CH | |
| Recording | Resolution | NTSC:D1(704×576),HD1(704×288),CIF(352×288) PAL:D1((704×480),HD1(704×240),CIF(352×240) |
| Frames | 200/240fps @HD1,100/120fps@ D1 | |
| Recording Mode | Schedule, Manual, Motion, Sensor | |
| Playback | Playback Channel | 1/4/8CH |
| Search Mode | Time, Event list | |
| Backup | USB Disk | USB2.0 device |
| Remote Application | Browser | IE Browser |
| CMS | YES | |
| User Access | 10 users online with professional authority management | |
| Alarm | Alarm Input | No |
| Alarm Output | No | |
| Storage | HDD | 1SATA HDD, up to 2TB(HDD not included) |
| PTZ | PTZ | YES |
| PTZ Control | YES | |
| Network | Ethernet | 10 / 100 Mbps Ethernet (RJ-45) |
| Protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | |
| Mobile phone | Support Windows OS, Symbian OS, iPhone, Blackberry and Android operation system Mobile phone | |
| Others | IR Remote Control | NO |
| Power Supply | DC12V / 2A | |
| Operating Temperature | 0°C ~50°C | |
| Humidity | 10% ~ 90% Humidity | |
| Dimension | L x W x H(DVR) | 230x200x45mm |
| Weight | KG | 0.6KG |

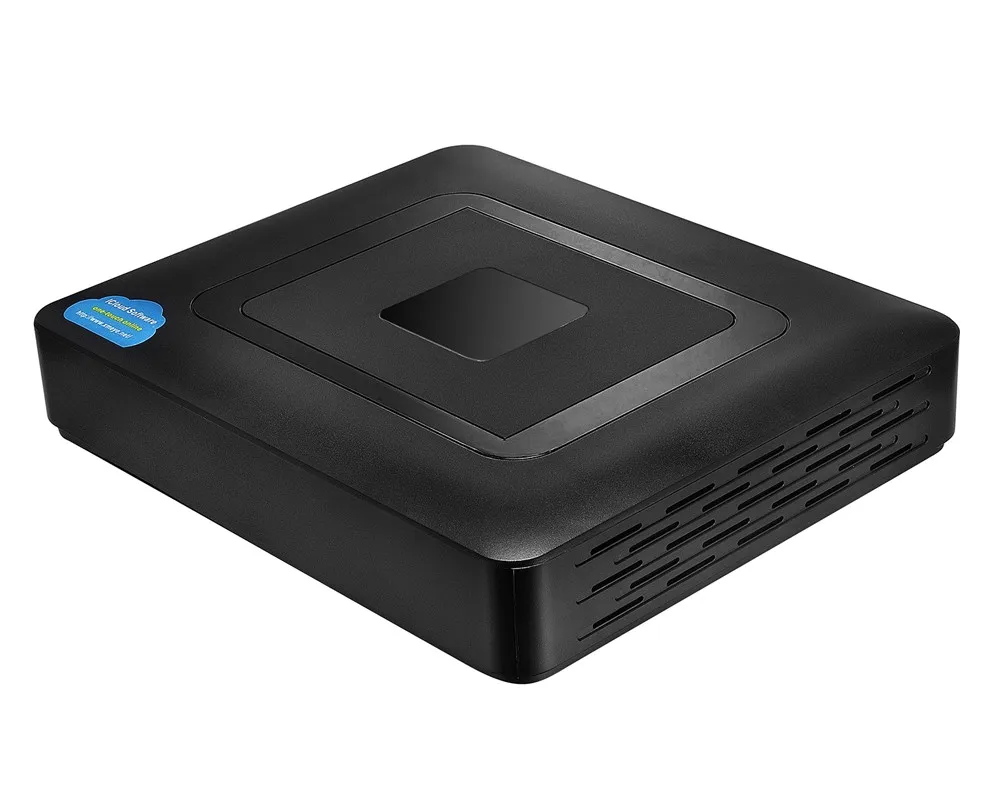

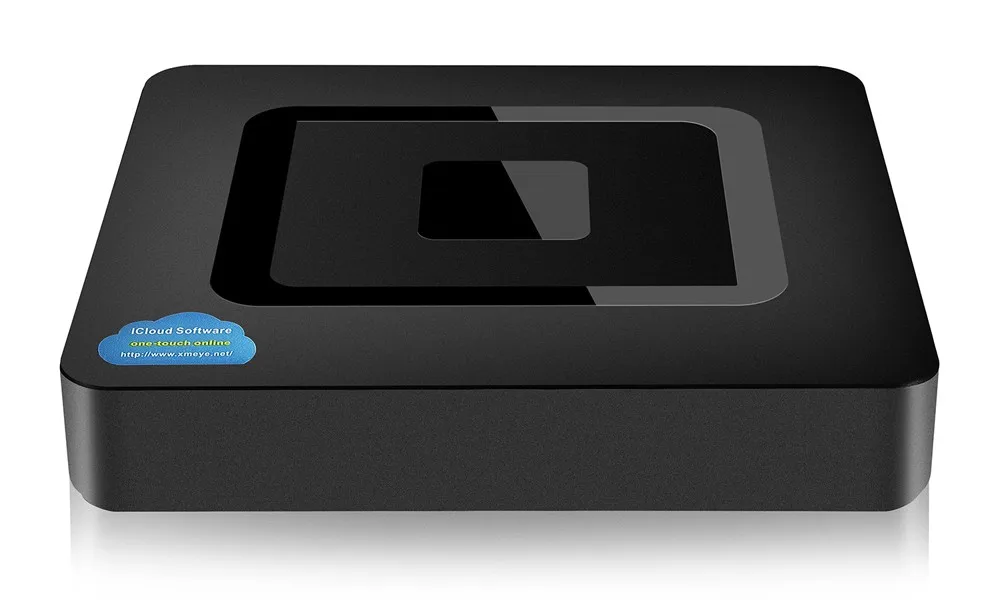

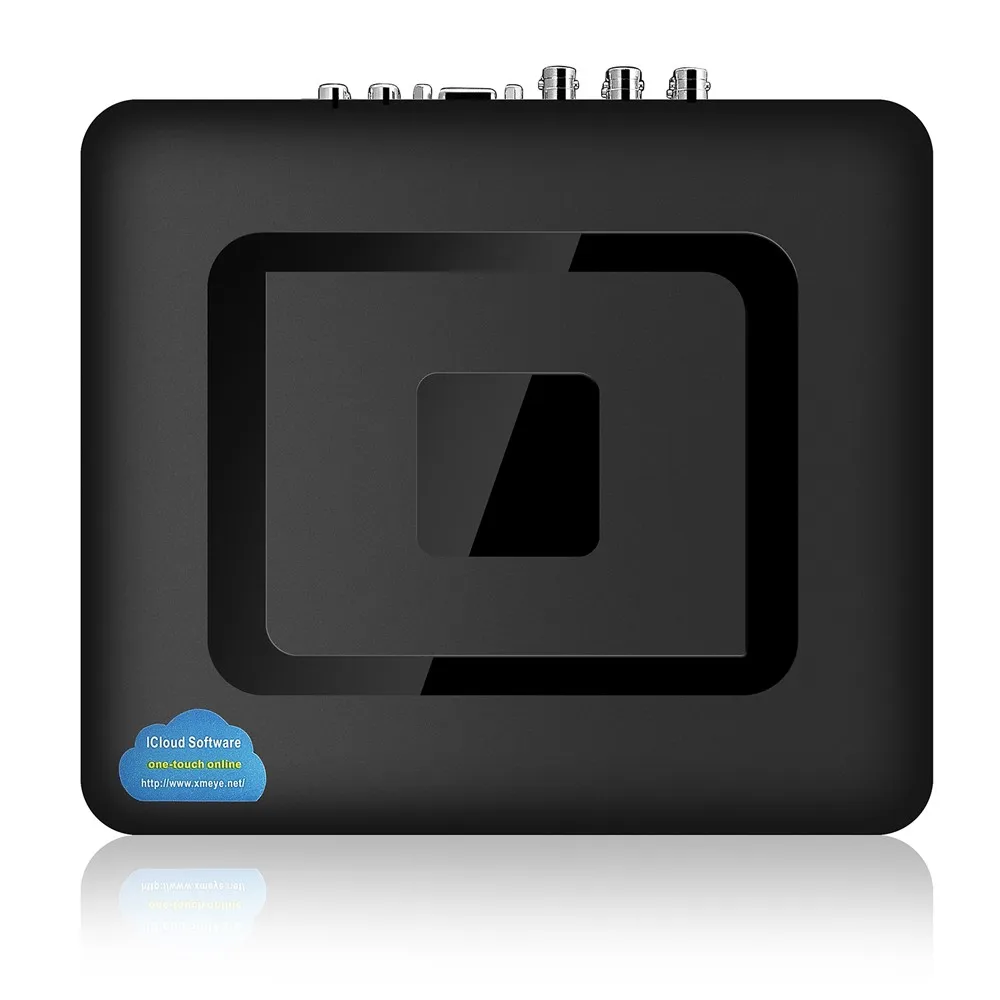

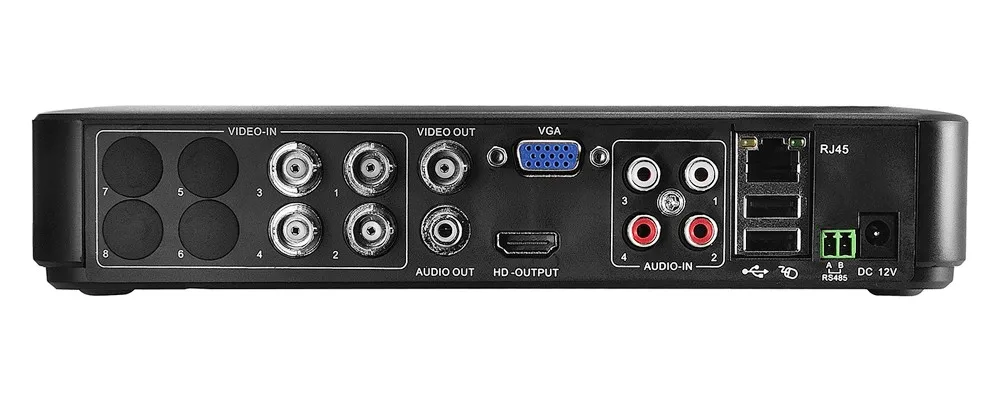

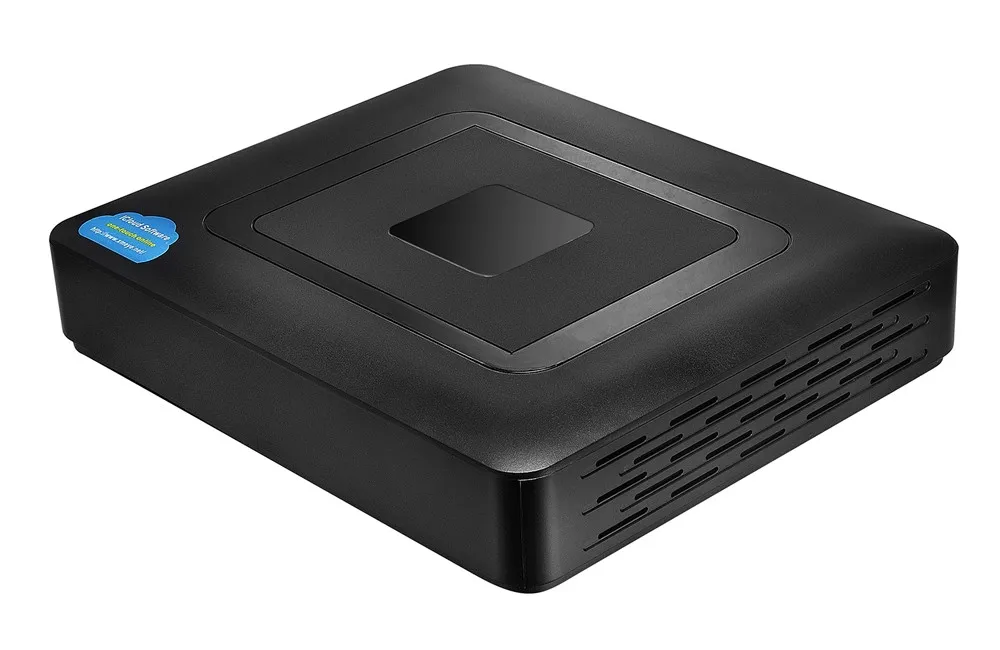

Product pictures of 4CH DVR :

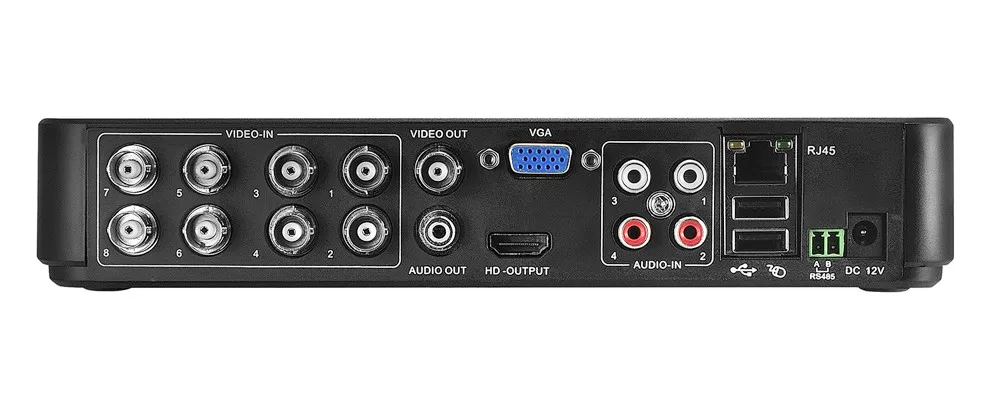

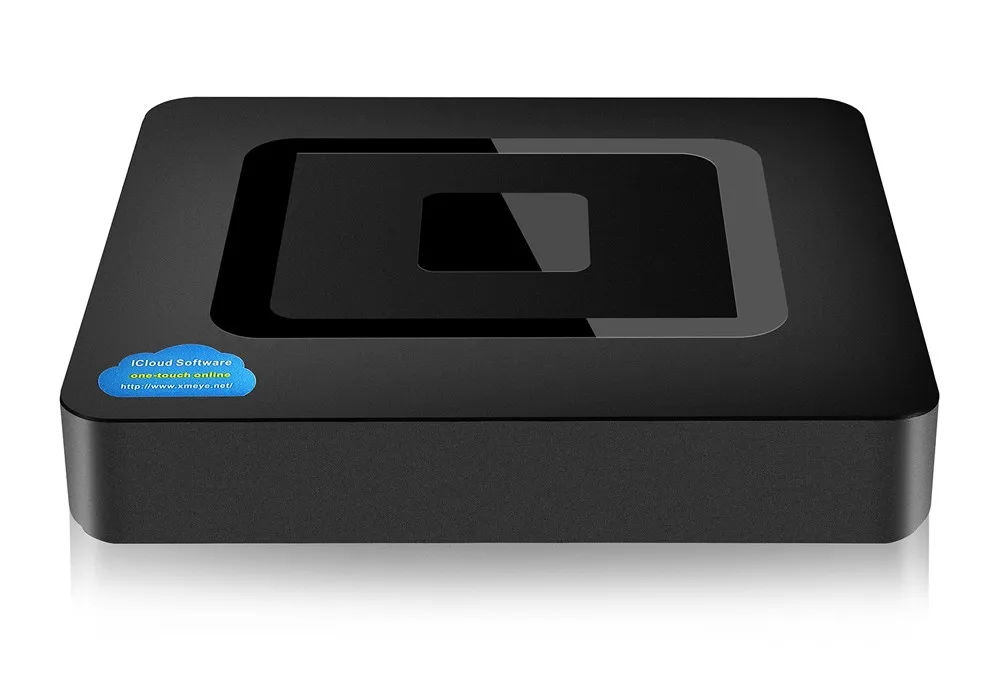

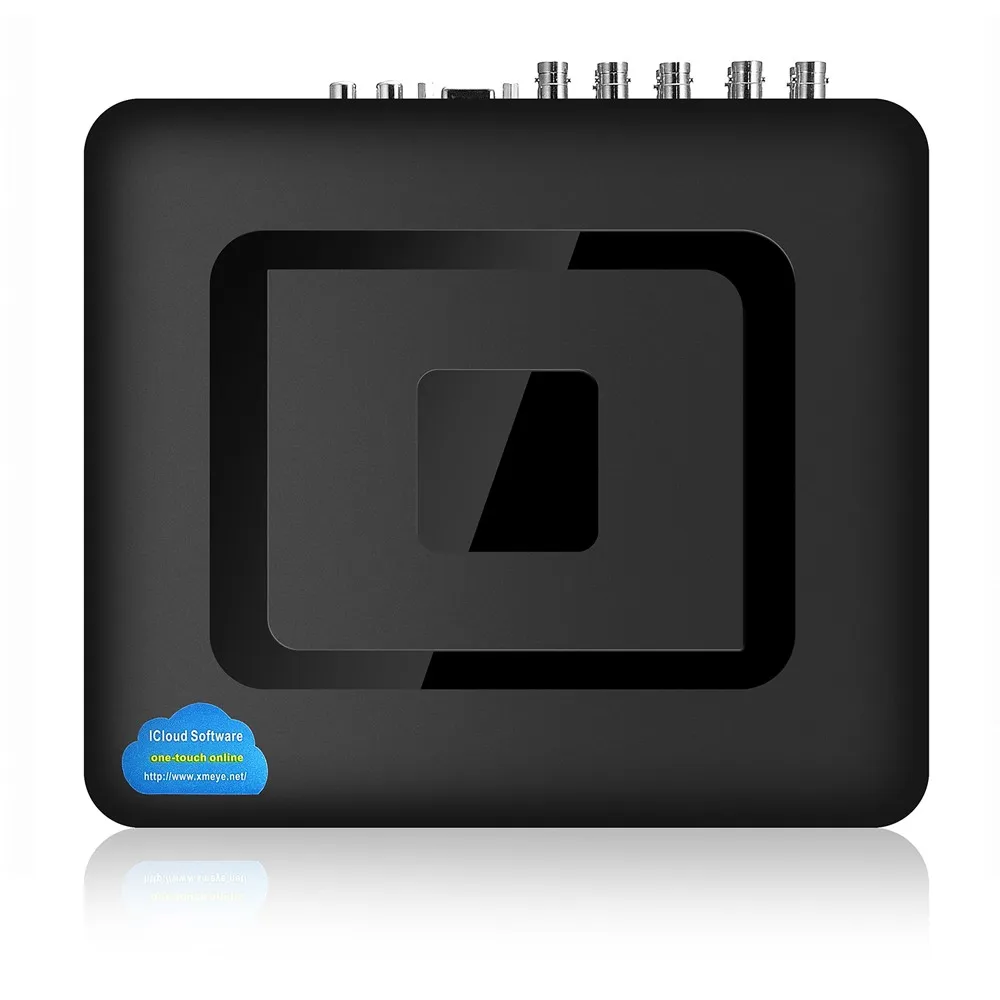

Products Pictures for 8CH DVR :
Note :

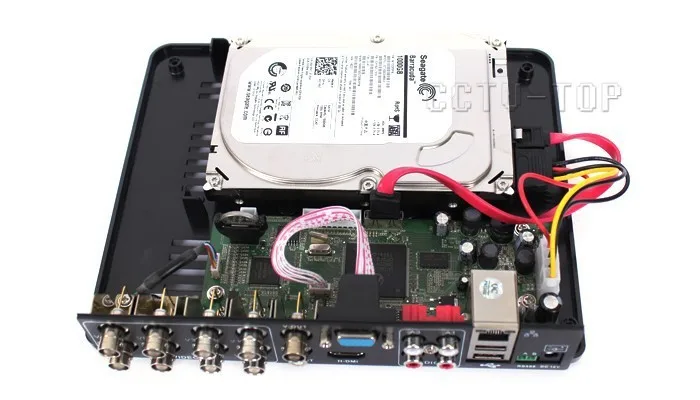

This DVR request the 3.5\'\' HDD ,below picture is for reference ,HDD NOT included in the device !
To save the shipping cost,we not attach the retail package box for 1pcs !
If you need retail package box,then leave us message in the order remark !
CMS Client :
Cloud Viewing via IE ,Chrome ,Firefox and so on

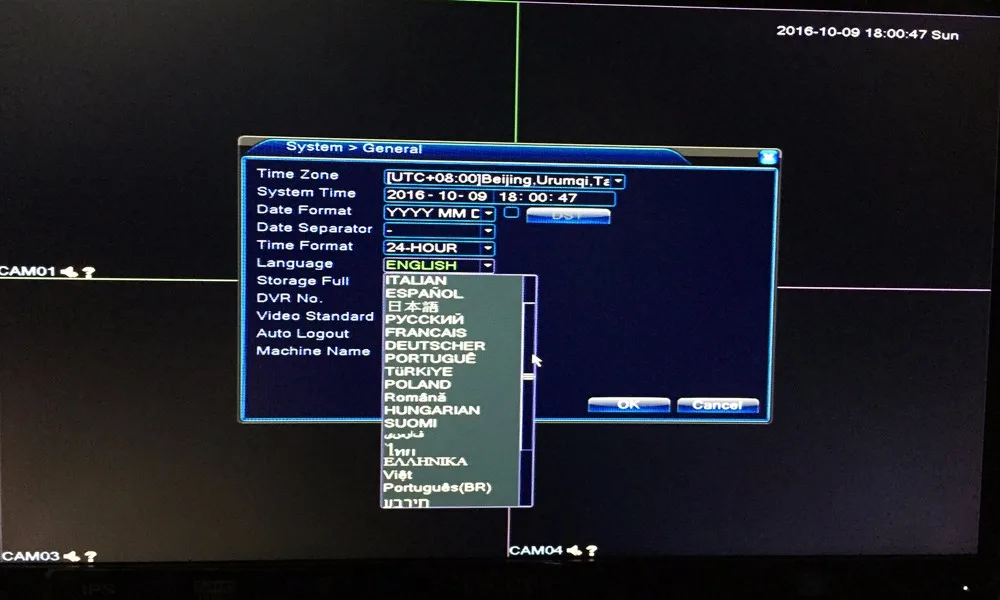

Multi Language :

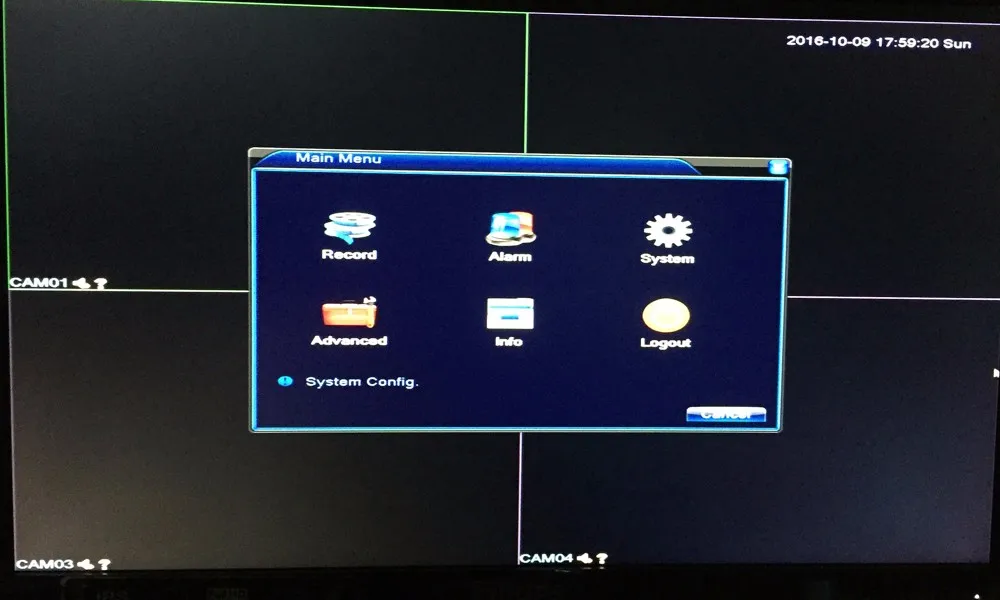

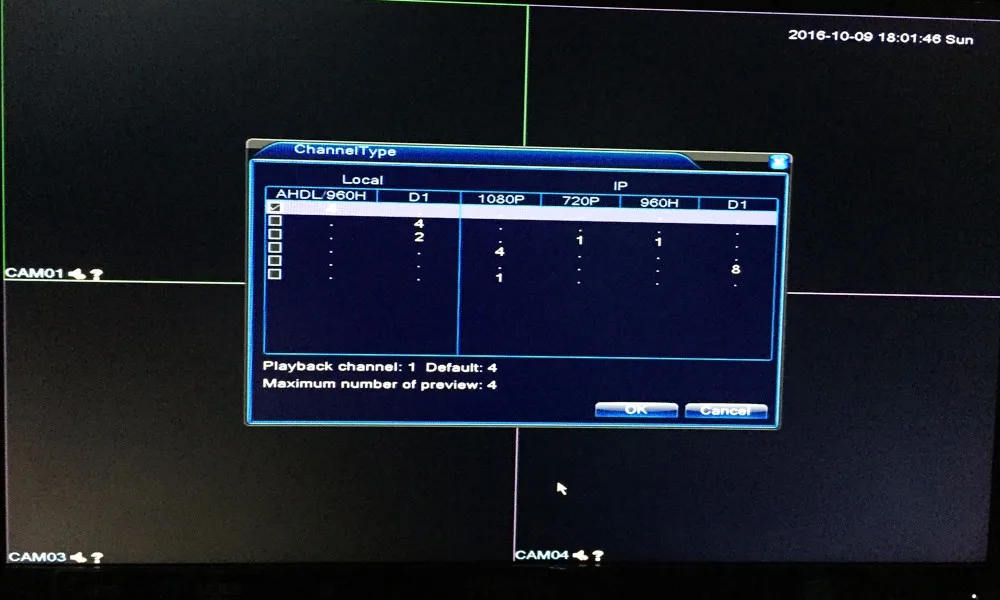

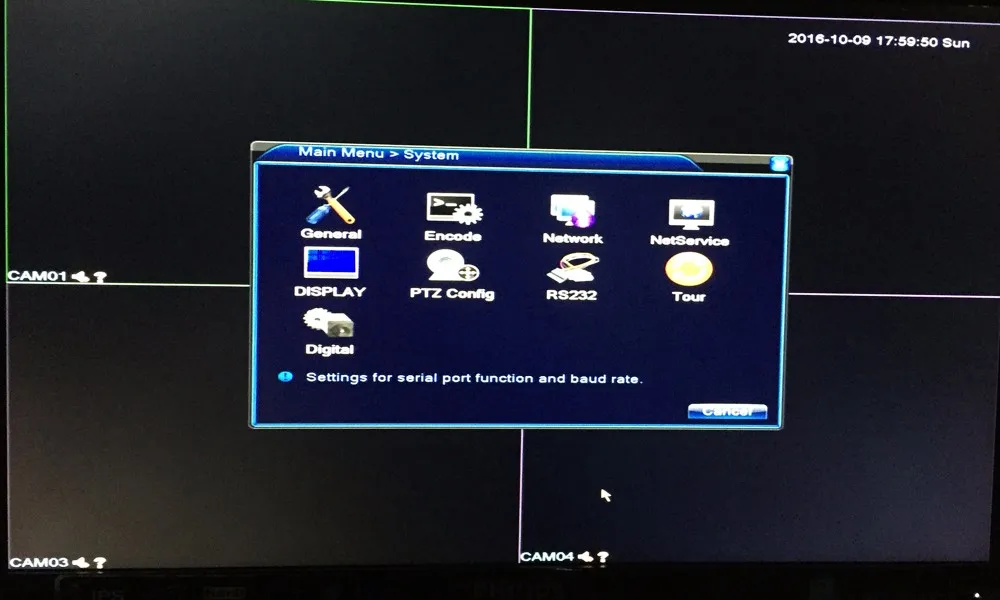

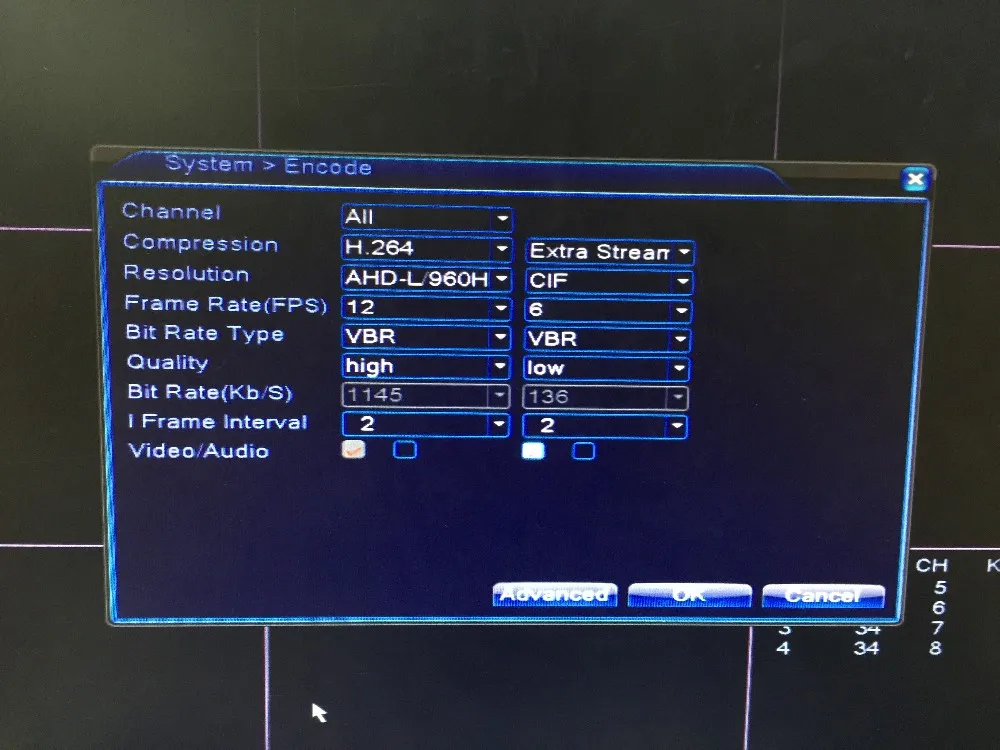

4CH MENU :
8CH MENU :
