Product description:
Andonstar AD206S digital microscope is an upgraded version of AD206. The highlight of this upgradation consists in its double lens and screen. AD206S is able to connect with an endoscope and display the image captured by it at the time when the big screen is showing the image photographed by the microscope lens. Its 2 LED lights on both sides of AD206S is very flexible and they can be adjusted forward and backward, which helps to reduce reflection. Moreover, its stand and screen are also adjustable, which offers more working space and permits users to observe the object from any angle. To protect the digital microscope lens from greasy dirt and damage, Andonstar AD206S uses a UV filter and cone lens to ensure the quality of soldering work. With an ergonomic design, users can keep a comfortable and relaxed posture and reduce physical pain in the spine. It's an ideal tool to observe the component, parts of electronic products, solder joint, solder stitch, solder wire, etc., while users are soldering and DIY making electronics.
Features:
Adjustable LED light: the microscope comes with 2 adjustable LED lights, allowing you to adjust the lights to any angle you like to reduce the reflection of images.

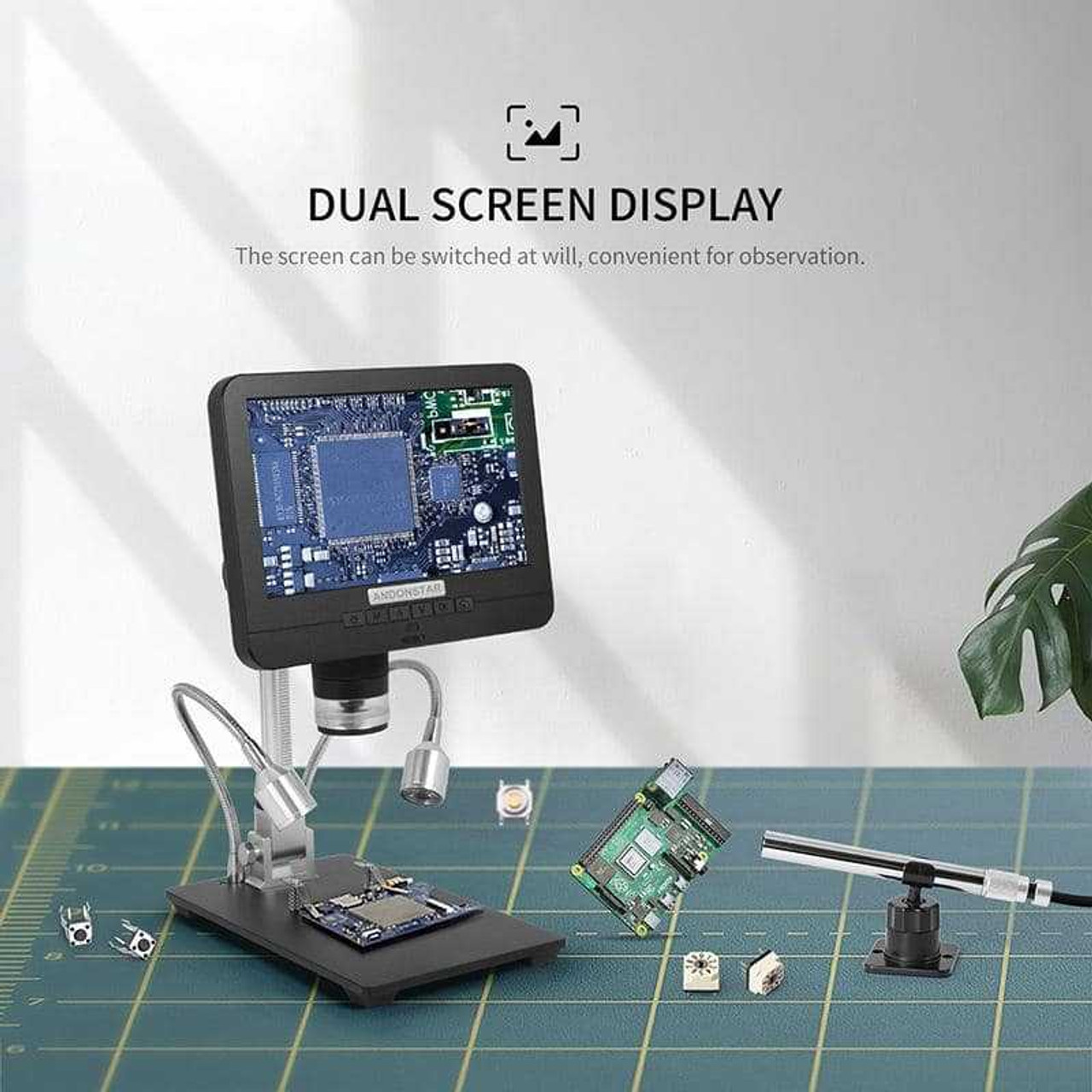

Double lens and double screen: users can use the microscope lens and endoscope lens and view images captured by the two cameras at the same time.

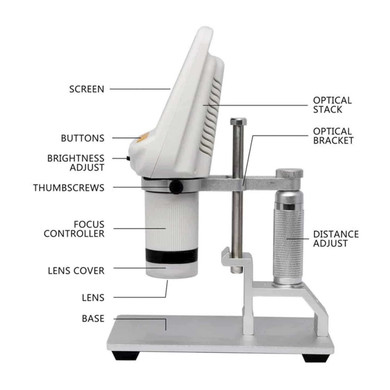

Height-adjustable stand and adjustable display: with more working space, you can adjust the stand and screen to any angle you like to view the object without any dead angle.
UV filter：it not only protects the lens from greasy dirt and damage but also reduces the reflection and stray lights.
Ergonomic design: users can reduce physical pain in the spine.
7 inches adjustable LCD screen: Amazing images and videos will show up on 7 inches display.
Specifications:
Material: metal+plastic
Main color: black
Image sensor: 2 MegaPixels
Video output FHD 1920x1080 30FPS; 1080P 1440x1080 30FPS；
720P 1280x720 30FPS;
Video format:AVI
Magnification:Up to 50 times
Photo resolution:Max 12M（4032x3024)
Photo format:JPG
Focus range:2cm-17cm
Frame rate:Max 30f/s
Storage:Micro-SD card,Up to 32G
Pc support:No
Power source:5V DC
Light source:8 built-in LED& 2 LED with the stand
Screen size:7 inch
Stand size:20cm*12cm*19cm
Certification:CE/FCC/ROHS
Packaging data:32*22*10cm/1.5kg
Warranty: 1 year
Package contents:
Microscope×1
Endoscope×1
Metal stand×1
Endoscope black stand x1
IR remote×1
Instructions×1
Switch cable×1
Power adapter×1
UV filter ×1 ( installed, on the lens bottom)
Lens cover ×1 (installed, on the lens bottom)
Endoscope accessory x 5
Warranty:
1-year warranty.
