Specifications:
Input voltage: DC 12V-40V
Power: 0.01-400W
Current: rated current 8A, large, the maximum current 10A, static current 0.02A (standby)
Frequency: 13Khz
PWM pulse width regulation range: 10%-100%
With 10A fuse (5 x 20mm standard size), with power supply reverse, control voltage over-voltage protection function
With high quality potentiometer
If the forward and the reversal function is required, you can connect the positive and negative switch.
Size: 60 x 55 x 28mm, the positioning hole is 5mm from the edge of the board, and the diameter of the locating hole is 3.2mm.
Package included:

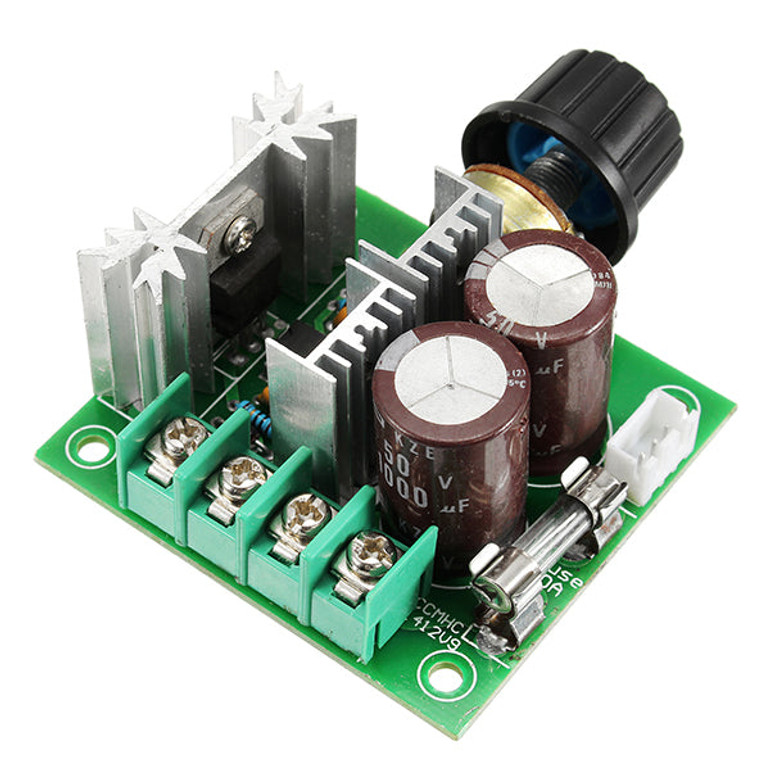

1 x DC 12V-40V 10A 13Khz motor speed controller
