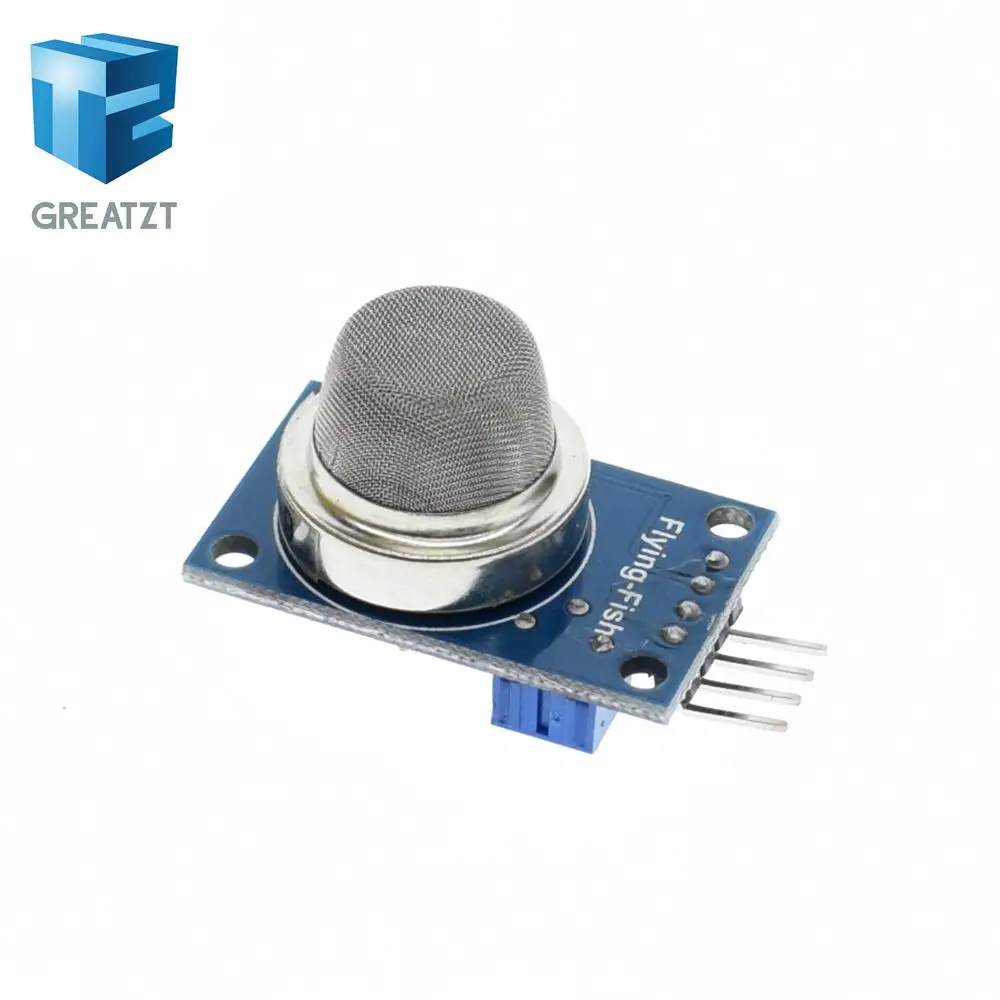

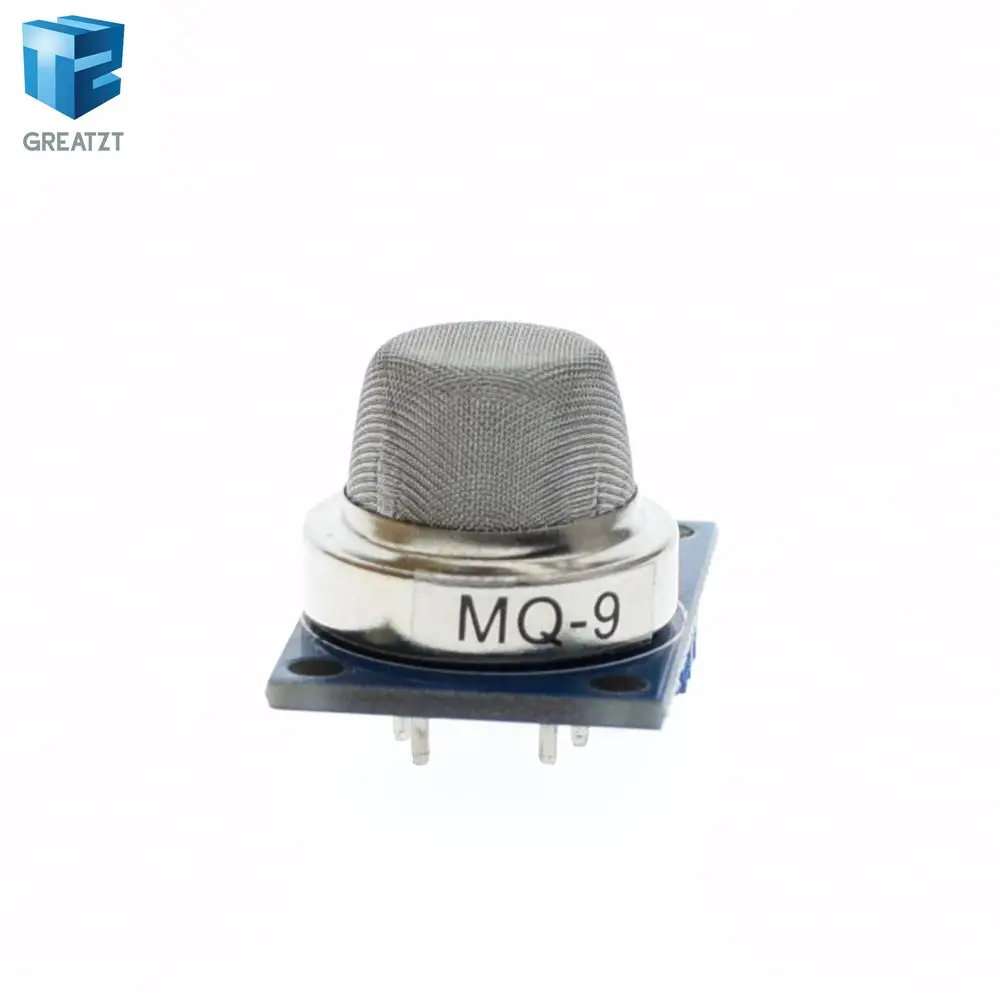

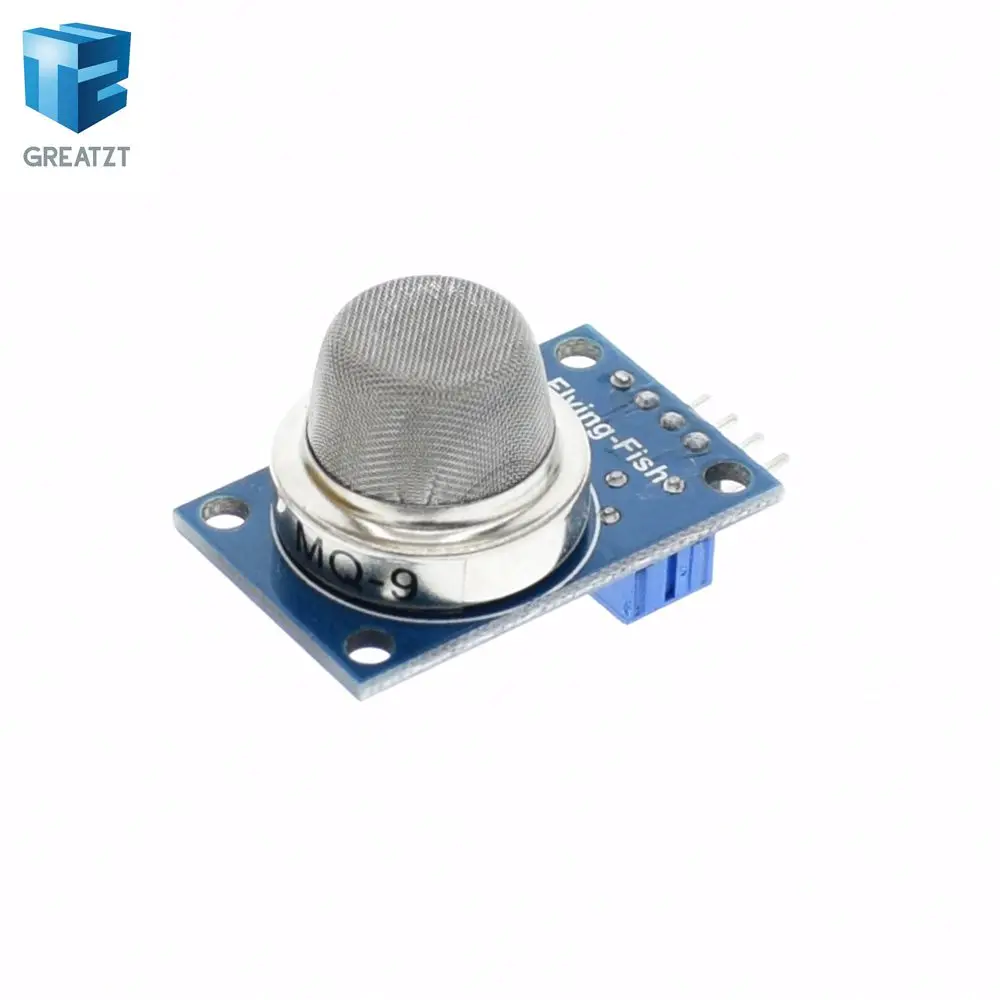

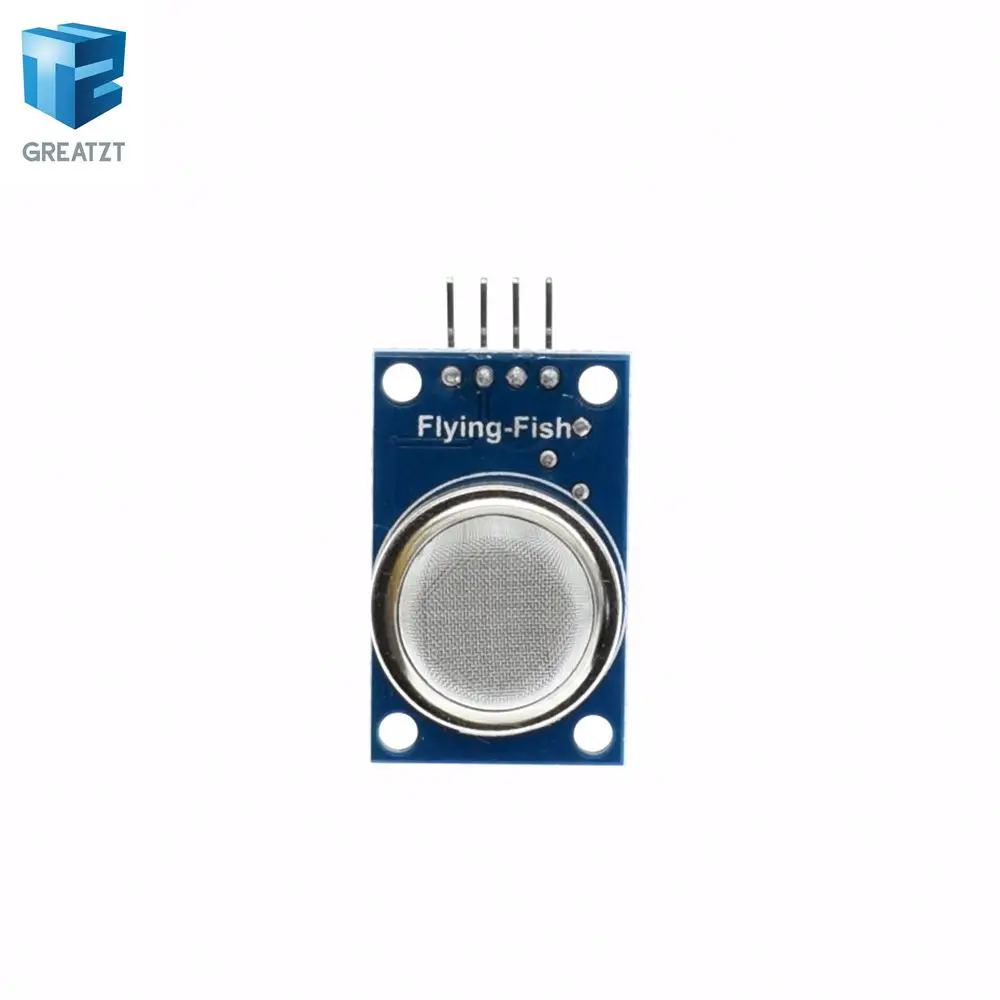

Product Overview:
Features:
- Using high-quality dual-panel design,with power indicator and TTL signal output instructions.
- The switching signal having a DO (TTL) output and analog output AO.
- TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
- Analog output voltage with the higher concentration of higher voltage
- There are four screw holes for easy positioning.
- Has a long life and reliable stability
- Rapid response and recovery characteristic
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ),the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

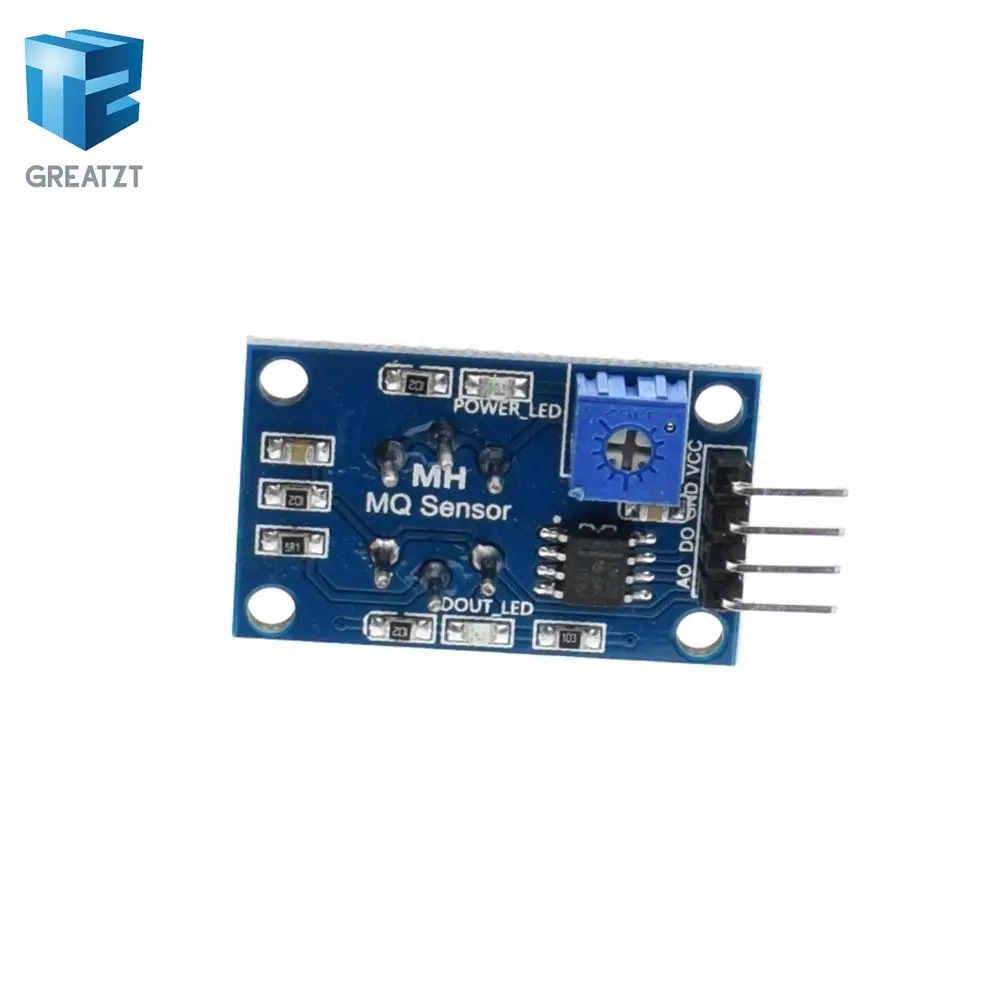

Wiring:
- VCC: positive power supply (5V)
- GND: power supply is negative
- DO: TTL switching signal output
-
AO: analog signal output
NOTE:
After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normalSize:
Test program:Function: This version of the test program supportingUse chip: AT89S52Crystal: 11.0592MHZBaud rate: 9600Compiler Environment: Keil[Statement] This procedure is used only for study and reference, please indicate the copyright and author information!************************************************** ******************* // ************************************************* *******************Note: 1, when the measured concentration is greater than the set density, single-chip IO port output low************************************************** ******************* /# Include // library files#define uchar unsigned char // macro definition unsigned char#define uint unsigned int // macro definition unsigned int/ ************************************************* *******************I / O definitions************************************************** ******************* /sbit LED = P1 ^ 0; // define microcontroller P1 port of the first one (ie P1.0) to indicate the endsbit DOUT = P2 ^ 0; // define the microcontroller P2 port first one (ie P2.0) as an input sensor/ ************************************************* *******************Delay function************************************************** ******************* /void delay () // delay procedure{uchar m, n, s;for (m = 20; m> 0; m--)for (n = 20; n> 0; n--)for (s = 248; s> 0; s--);}/ ************************************************* *******************The main function************************************************** ******************* /void main (){while (1) // infinite loop{LED = 1; // off P1.0 port lightsif (DOUT == 0) // When the concentration is higher than the set value, the implementation of the Con{delay (); // delay interferenceWhen if (DOUT == 0) // determine the concentration higher than the set value, the implementation of the Con{LED = 0; // P1.0 port lights lit}}}}/ ************************************************* *******************End************************************************** ****************** /
