Brand: DIGITBLUE®
Features:
- ★【Wide Device Compatibility】: Suitable for various HDMI source devices like Amazon Fire Stick, Roku, Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Apple TV, PS3/4, PS4 Pro, Xbox, PC/laptop, HD camera, HD DVR, etc.
- ★【Support ARC Function】: Extractor the audio from the TV to soundbar or amplifier. When the HDTV directly receives audio and video content, the audio of the HDTV is directly transmitted to the display device with the speaker through the HDMI cable, and no additional cable needed. (Note: ARC does not support headphones when connecting to a network TV, only supports fiber-optic audio).
- ★【Add extra two audio ports】: Optical Toslink SPDIF digital + 3.5MM stereo analog to streaming media player, game consoles or projector, solved no audio output jack issue.
- ★【3 Kinds of Audio Separation Mode】: Through the switch, you can select PASS, 2.1CH, 5.1CH output. PASS → audio output from HDMI. 2.1CH, 5.1CH → audio output from SPDI or 3.5 MM AUDIO. Comes with a 3.5mm to RCA L / R audio cable for external speakers with RCA L / R jacks. (※ There will be 3-5 seconds pause when the audio is switched)
- ★【HDMI 2.0】: Supports 4K@ 60 Hz resolution and 3D display. Supports HDR10 and Dolby audio output (*output devices need to support HDR10 and Dolby sound) to output beautiful HD 4K signals (video/audio) without delay.
Publisher: DIGITBLUE
Details: DIGITBLUE HDMI Audio Extractor is designed for solving no audio output issue on various HDMI source devices.
FEATURES:
- One HDMI input converted to one HDMI Audio(SPDIF R/L) output HDMI to achieve the synchronization of audio signal separation
- There are PASS/2 OCH/5.1CH three kinds of audio mode options
- Supports 4K x 2K @60Hz(YUV:4:4:2) ARC functions
- Support digital audio format：DTS-HD/Dolby-True HD /DTS/DSD
- Support blue-ray 24/50/60fs/HD-DVD/XVYCC
- Digital audio format. as DTS-HD/Dolby TrueHD/LPCM7.1/DTS/Dolby-ac371s
- Support signal retiming
- Supporting device: connect to TV, display or projector via
- No loss of quality stalls in minutes

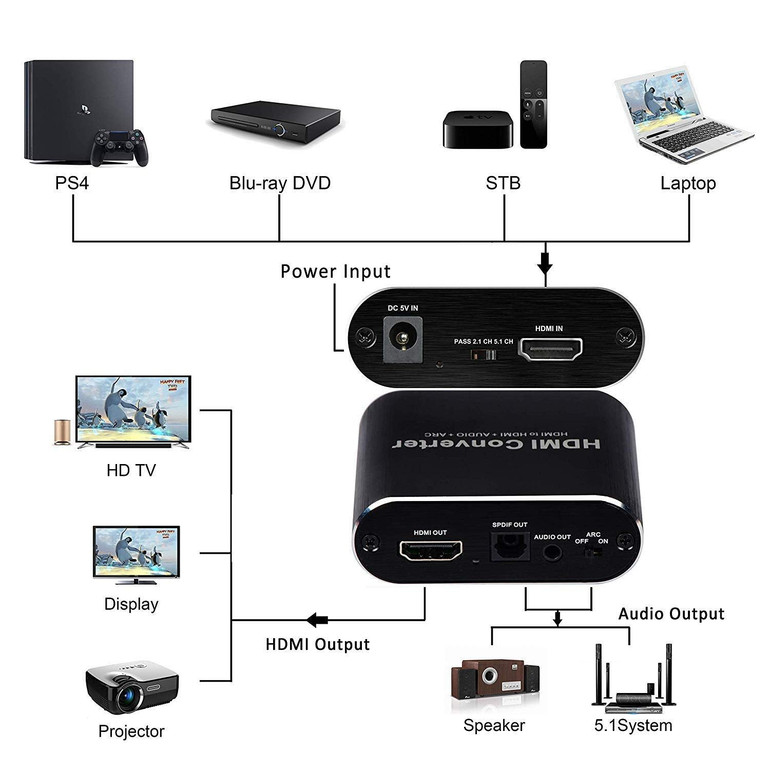

OPERATING AND CONNECTING:
1.to use one HDMI cable to cable the HD sources with the input HDMI ARC port.
2. To connect the converter HDMI output port with HD Display.
3. To use the optical cable to connect the SPDIF port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.
6. you must plug in the HDMI ARC port when starting the ARC function.
KINDLY NOTE:
1. Please set your PS4 Pro to 2160P - YUV4:2:0 when you use it.
2. Please make sure your HDTV has HDMI(ARC) Port if you want to use ARC function.
3. ARC function is only available from the Optical Port, 3.5mm headphone port will no sound if you open the ARC.
4. Please open the ARC function on your TV and this ARC converter when you use it.
5. Dolby/ DTS Issue - Check your display compatibility about those formats. Our device does not decode audio only pass it to your device. If your Amplifier does not support Dolby, please set your HDMI Source audio format to PCM/LPCM.

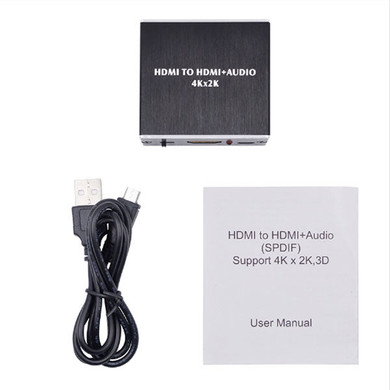

PACKAGE INCLUDE:
1 x 4K HDMI Audio Extractor
1 x Optical Audio Cable
1 x 3.5mm to L/R Audio Cable
1 x Power Adapter
1x user manual
UPC: 707772676562
EAN: 707772676562
Package Dimensions: 5.8 x 5.0 x 3.0 inches
