Item specifics:
Connector A: HDMI
Type: HDMI Cables
Outer Diameter: -
Gender: Female-Female
Shielding: Combination
Packing: Polybag
Connector B: HDMI
Bundle: Bundle 1
Application: Multimedia
Model Number: -
Package: No
Feature: HDMI1.4
Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K x 2K
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA
model: HDMI Audio Extractor
Product Description:
This hdmi audio splitter can extract the audio signal embedded in HDMI sources and convert it to 3.5 mm analog audio output and SPDIF output at the same time. The SPDIF out supports both 2 CH audio and 5.1 CH audio including Dolby Digital 5.1 CH and DTS 5.1 CH.
Key Features:
• Input ports: 1 x HDMI, 1 x Micro USB power port, 3 x EDID Audio (pass, 2 CH, 5.1 CH)
• Output ports: 1 x HDMI, 1 x SPDIF (optical), 1 x 3.5 mm jack.
• HDMI resolutions: 4K x 2K, 24/50/60/1080P/1080i/720p/576p/576i/480p/480i
• Supported color formats: 24 bit/deep color 30 bit, 36 bit
• Max bandwidth: 225 MHz
• Max baud rate: 6.74 Gbps
• Max working current: 190 mA
• Audio and video can be converted from the HDMI output
• HDMI pass mode: Audio and video can be converted from the HDMI output. SPDIF and L/R do not have sound
• 2 CH mode: Extract digital 2CH PCM stereo audio signal from the HDMI input. HDMI/SPDIF and L/R output stereo audio
• 5.1 CH Mode: Extract 5.1 Dolby Digital/DTS and output via HDMI/SPDIF.

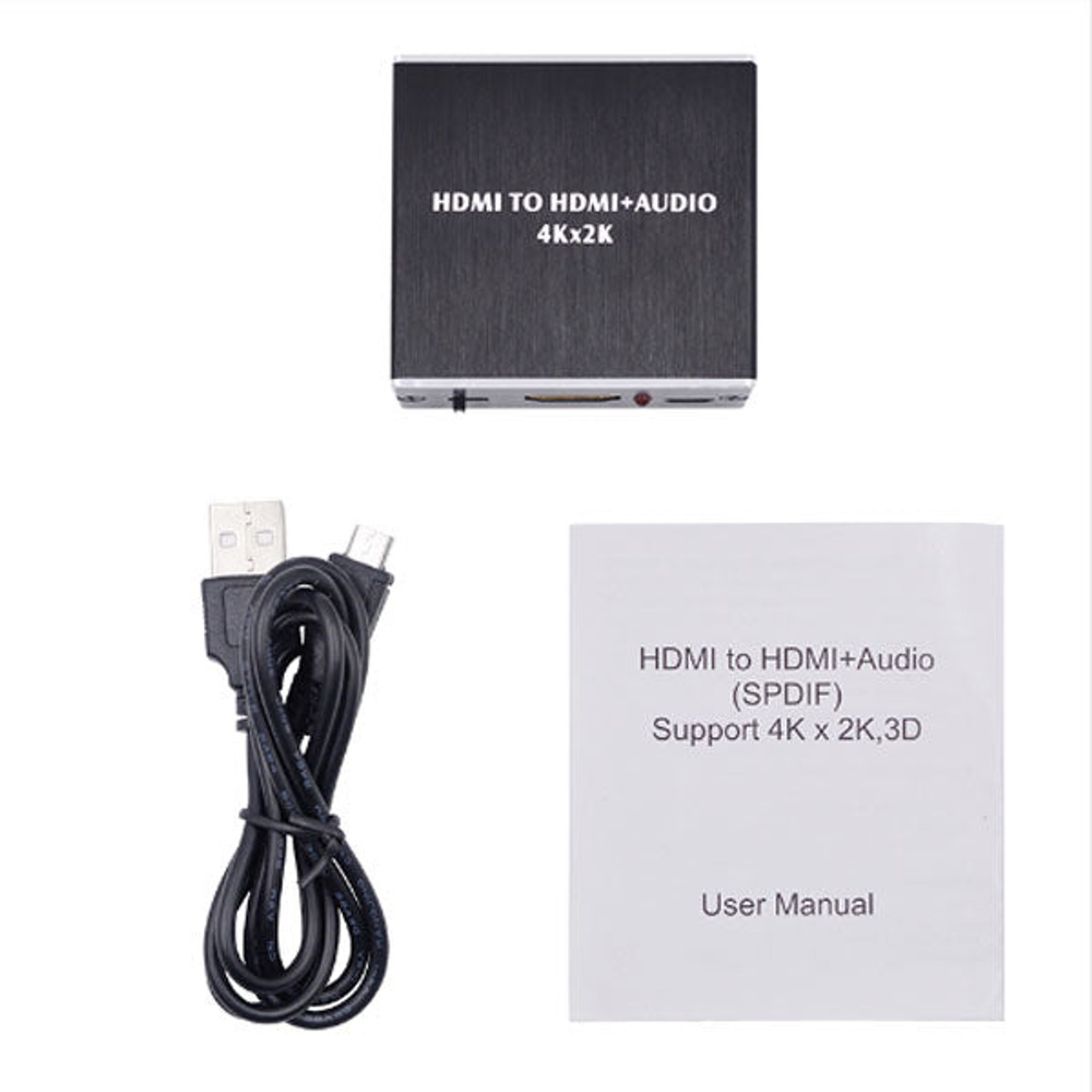

Packaging :
1 X HDMI audio extractor
1 x micro USB cable
Warnings:
• Device does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
• For devices with low power HDMI ports, a 5V/1A phone adapter can be used to power the device.
• Device does not support copyright protected content.
Showcase
Packaging Details
- Unit Type: piece
- Package Weight: 0.12kg (0.26lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
