DIGITBLUE High Quality 120m/400ft HDMI Extender | KVM Transmitter Receiver System | 1080P HDMI KVM IR Extender | Via RJ45 Cat5e/6 Cable

Item specifics:

Connector A: HDMI,USB

Application: Projector,For iPod,Camera,Computer,Amplifier,Multimedia,Television,Telephone,DVD Player,Monitor,TV BOX,MP3 / MP4 Player
Connector B: USB,HDMI
Packing: Carton Box
Gender: Male-Female
Bundle: Bundle 1
Feature: None
Outer Diameter: 1mm
Type: Twisted Pair
Shielding: Non-Shielded
Package: Yes
Model Number: ZY-DT103KM
Resolution: 1920*1080@60HZ
Transmission distance: 120m/400ft
Video standard: HDMI1.3 and HDCP1.2
Support TCP/IP: YES
Support Keyboard and mouse: YES
Support undirectional IR: YES
Humidity: Operating: 5% ~ 90%
Temperature: Operating: -5 ~ +70
Dimension: 92*70*25mm
Warranty: one year

Product Description:

ZY-DT103KM, extender provides extension of HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1080P, Keyboard mouse signal(HID signal) and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

• Transmission Distance:up to 120m/400ft over a single CAT5e CAT6 cable;
•  Video resolution: up to 1920*1080P@60Hz;
• Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;
• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
• USB KVM function:Support keyboard and mouse(HID signal) romote control;
• High-speed USB 2.0: up to 480Mbps
• Male to male: one TX to one RX applicataion;

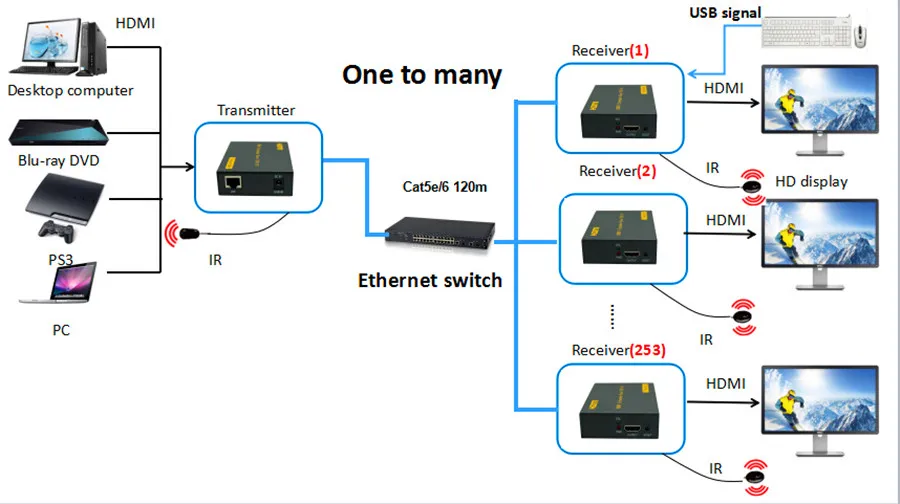

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;
• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;
• Infrared control:unidirectional 20~60 KHz IR romote control;
• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
• Copy EDID function : match many kinds of display devices;
• Built-in automatic adjustment system: make the image smooth, clear and stable;
• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
• Simple to install, plug and play

Note:

USB port :

1.It  can transmit HID signal,It is unicast!It only support one to one application.When you use it for one to many application,you only can use one set keyboard mouse to control the HDMI source.

2.It can connect USB port to Scanner,Touch screen,keyboard and mouse.

3.If you want to connect to other device,please contact me!We will give you the best reply timely!

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------38kHz ;

UTP
Interface-----RJ45
Transmission distance--------CAT5e:100m,CAT6:120m

Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------100*60*25mm
The warranty--------1 year free warranty

Package:

HDMI KVM transmitter ……………………….……. 1 pcs

HDMI KVM receiver …………………………………. 1 pcs

Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs

1.Q: What is local EDID with HDMI KVM IR Extender?

A: EDID:  It is extended display identification data,Press the button 3 seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again.

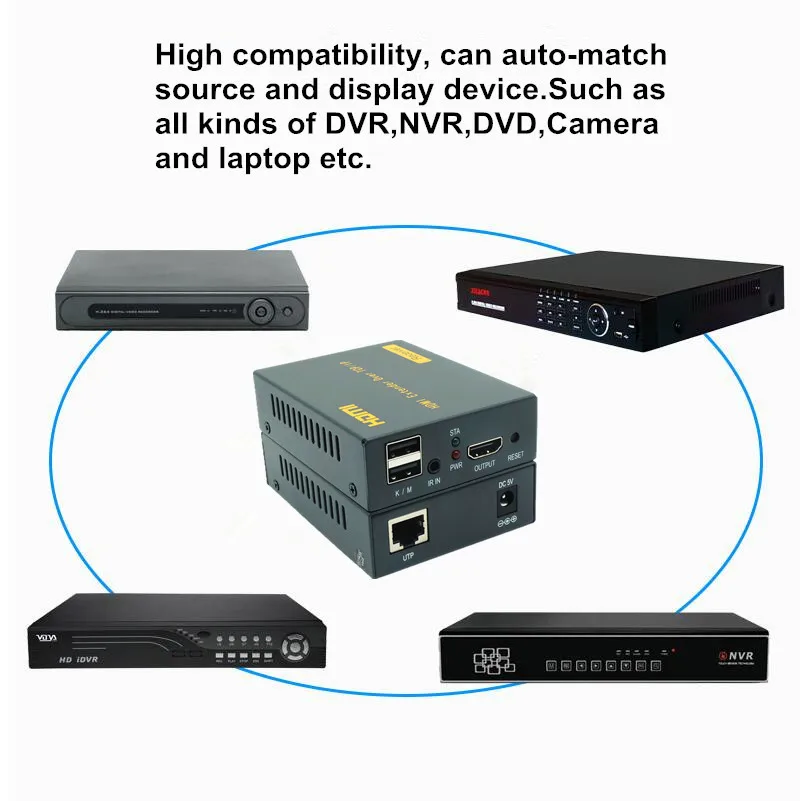

2.Q: What kind of video signal device is compatible with HDMI KVM Extender?

A: DVR, PC, Tablet, Monitor etc(please let us know the brand and models of the device)

3.Q: What is the resolution of input video signal?

A: 720P@60Hz, 1024x767@60Hz,  1080P@60Hz,  etc.

4.Q: What kind of cables in need ?

A: Input cable: HDMI cable,Output cable: HDMI Cable,CAT5e/6 cable

5.Q: What kind of output device is compatible with HDMI KVM Extender?

A: TV, Monitor, DVR,NVR etc (please let us know the brand and models of the device)

6.Q: Mouse and Keyboard Brand?

A: Logitech, Microsoft, AOC,A4TECH, HID device (please let us know the brand and models of the device),But it can not support wireless keyboard and mouse.

7.Q: What is the required bandwidth? Is it working on a 100MB LAN ?

A:  It required bandwidth is 70~80 MB. So, it can work on a 100 MB LAN.


8.Q: Can it be transmit through network to remote area?

A: Yes, it can be transmit through LAN(Local Area Network) to remote area,But it can not work over Internet.
