Specifications:
Socket Type: LGA1150
Item Condition: New
Ports: Ethernet
Ports: SATA
Ports: USB 2.0
Ports: VGA
Memory Type: DDR3
Application: Server/Workstation
Chipset: Intel H77
Memory channel: Single
CPU Type: Intel
Form Factor: CEB
Graphics Card Type: Integrated
Form Factor: Mini-ITX
Package: No
Memory Bank: 1 DDR3 DIMM
With CPU: Yes
Model Number: Intel Celeron J1900
Maximum Ram Capacity: 8 GB
Hard Drive Interface: mSATA, 2.5inch SATA
Chipset Manufacturer: Intel
Memory Types: DDR3L 1.35V 1333/1600MHz
Processor: Intel Celeron J1900
Processor Frequency: 2.0GHz, up to 2.42GHz
USB: 2*USB 2.0
Console: RJ45 to RS232
Display: 1x VGA
LAN: Intel 211AT 1000Mbps
Working Voltage: DC 12V 5A
Dimension: 134x124x30mm
Overview:

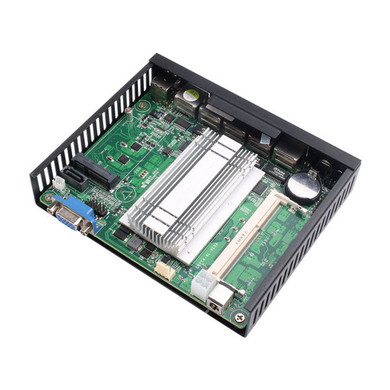

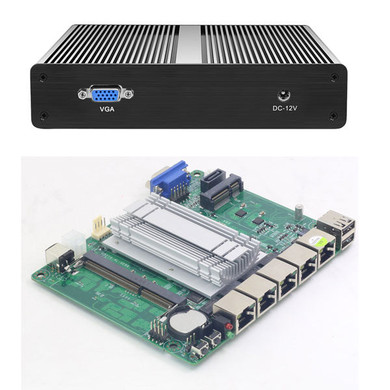

Intel Celeron J1900 Mini ITX motherboard with 4x LAN ports Intel WGI211AT Gigabit Ethernet Controller, RJ45 to RS232 console, Pfsense Firewall VPN Appliance
Reminds: package not include power adapter, buyer please use DC12V/5A power adapter, and we free send 2.5 inch SATA power & data cables
| Specification | |
| Onboard CPU | Intel Celeron Processor J1900 |
| (Quad-Core 2 MB L2, 2.00GHz) | |
| Memory | 1* SO-DIMM Solt |
| Support DDR3L 1333/1600 MHz, 1.35V | |
| Max support up to 8GB Memory | |

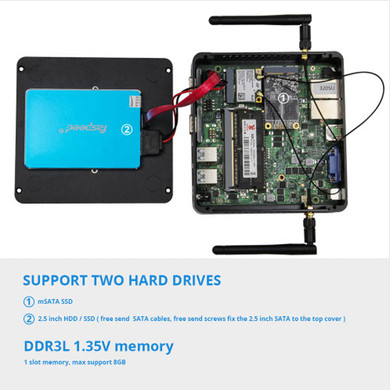

| Hard Disk | Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD |
| Integrated Graphics | Intel HD Graphics |
| (Base Frequency 688.00 MH, Max Dynamic Frequency 854.00 MHz) | |
| Onboard LAN | 4 x Intel 82583V or Intel i211AT 10/100/1000 Controller |
| Audio Card | Realtek ALC662 HD Audio CODEC |
| Front-Panel Connectors | • Power on/off |
| • Power LED ( POWER/ SSD) | |
| • 2 x USB 2.0 Ports | |
| • 4 x Lan port (RJ45) | |
| Internal Connectors | • 1 x Mini PCI-E port (only for mSATA SSD) |
| • 1 x 2.5 inch SATA connector | |
| • 1 x DDR3L SO-DIMM Memory Slot | |
| • 1 x Automatically boot jumper | |
| Back-Panel Connectors | • 1 × DC 12V 5A input |
| • 1 x VGA Port | |
| Operating System | Support Windows, Linux, Pfsense, etc |
| RAM(optional) | 2GB / 4GB / 8GB DDR3L SO-DIMM |
| SDD/HHD(optional) | mini SATA/2.5" SATA |
| Power Consumption | TDP 10W |
| Case Color | Black (Other Color Can Be Customized) |
| Power Supply | Input 100-240V AC/50-60Hz; Output DC 12V-5A |
| Operating Temperature | （-10°C~70°C ） |
| Storage Temperature | （-20℃-80℃） |
| Relative Humidity | 10%~90% (non-condensing) |
| Dimension | 14.5 x 12.2 cm |
| Gross Weight | 0.5Kg |
