Specifications:
Model Number: X34
Type: Mini Desktop
Hard Drive Capacity: 64GB
Processor Model: Celeron J1900 J1800
Memory Capacity: ≥ 4GB
Graphics Card Type: Integrated Card
Type: Mini PC
Processor Main Frequency: 2.0GHz, up to 2.42GHz
Processor Brand: Intel
Use: Multimedia
Storage: mSATA SSD
RAM: DDR3L 1333/1600MHz 1.35V

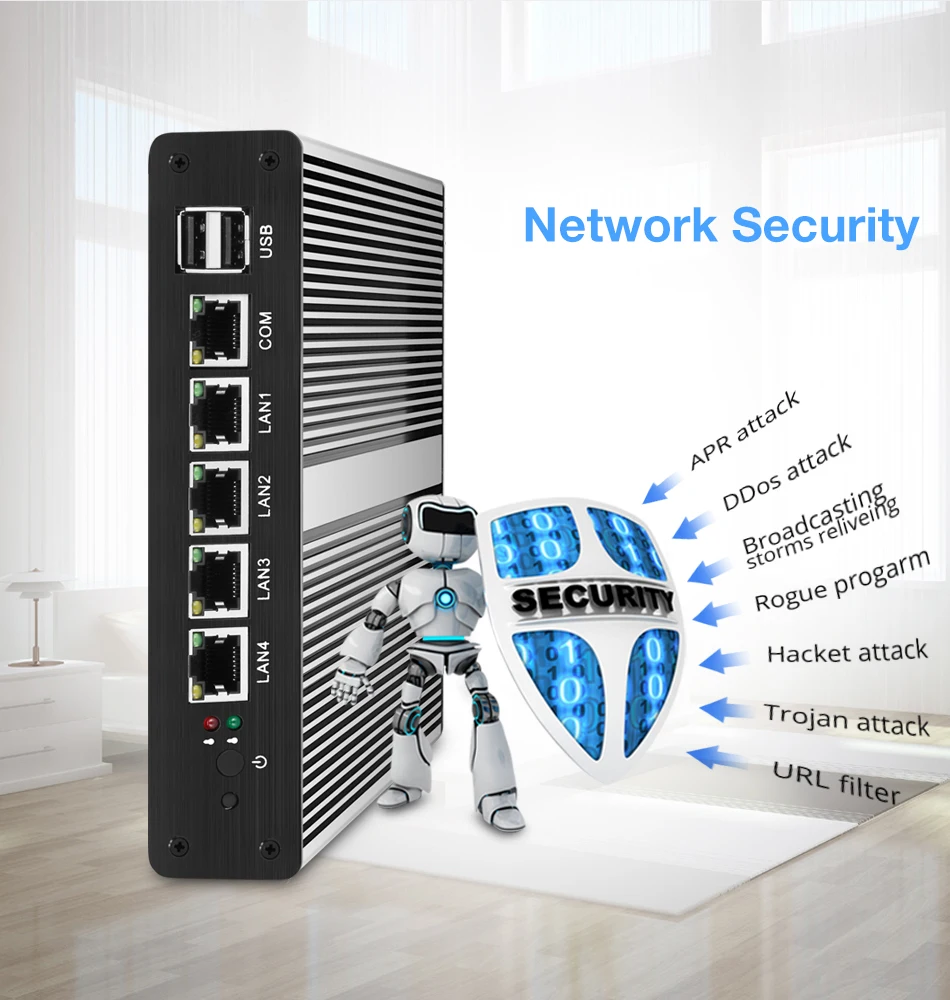

I/O Ports: 4x LAN, 1x COM, 1x VGA, 2x USB, DC 12V IN
Graphics: Intel HD Graphics

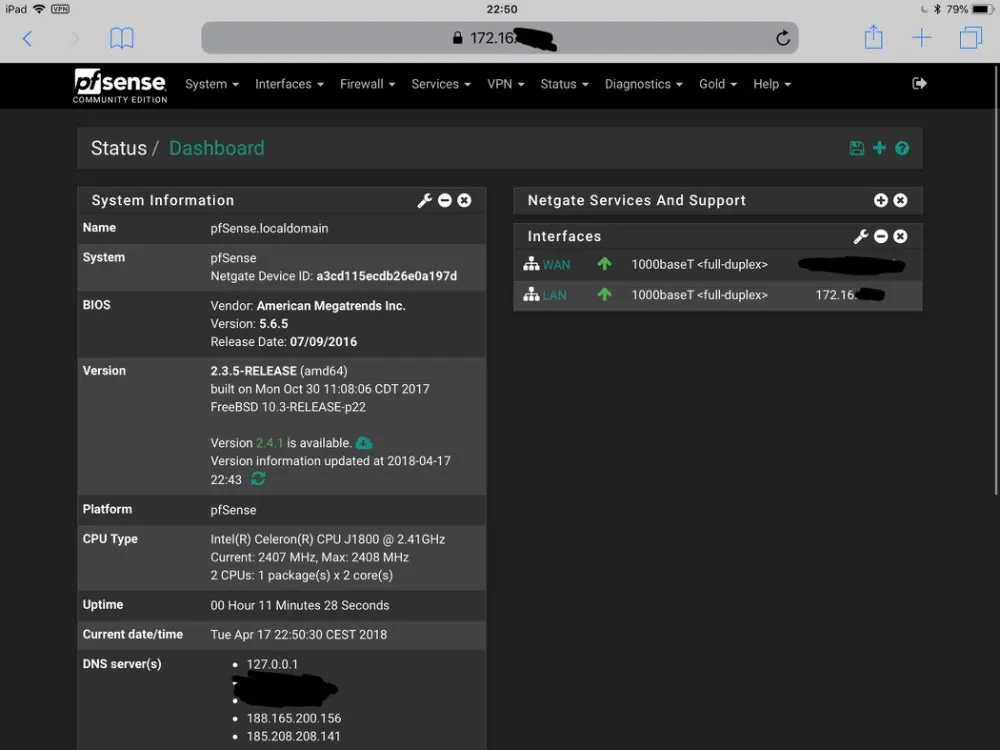

Supported OS: pfSense, Sophos UTM, VyOS, Linux iptables, Untangle, Windows
Ethernet: 10/100/1000M Gigabits Ethernet
NIC: Intel i211AT Gigabit Ethernet Controller
Dimension: 175x127x39mm
N.Weight: 0.65kg
Case Material: Aluminum alloy
Overview:

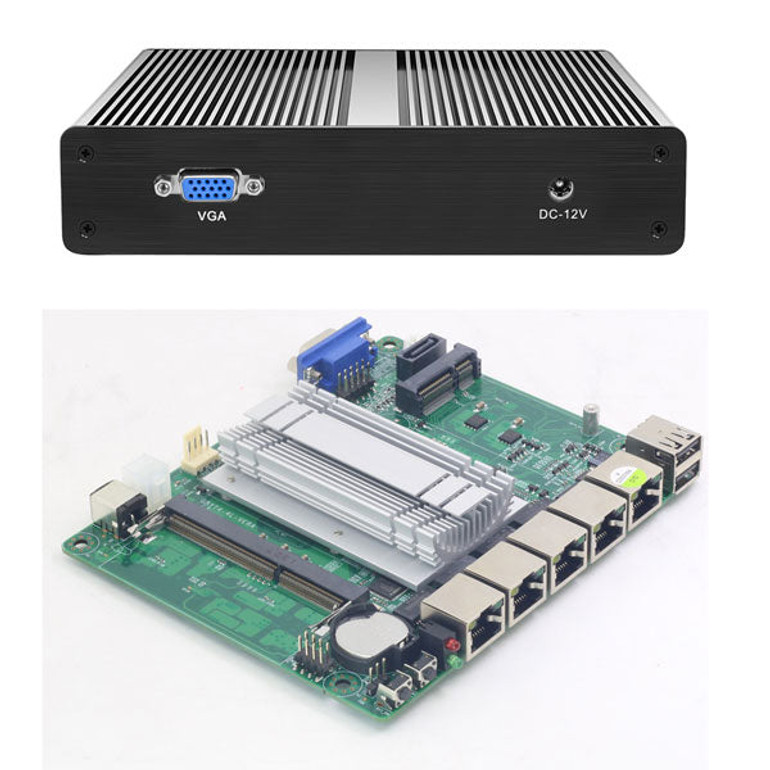

X34 Fanless Mini PC Intel J1800 J1900 Procesors, 4x LAN ports, RJ45 to RS232 Console, Firewall Router Appliance
Features:
① Support Windows server, Pfsense, Sophos, VyOS, Linux iptables, Untangle, Endian, CENTOS;
② With Intel i211AT Gigabit Ethernet Controller;
③ Compatible with 1x DDR3L 1.35V memory, up to 8GB; allow 1x mSATA SSD hard drive;
④ Fanless construction, aluminum radiator, zero noise experience;
⑤ Support virtualization, wake-on LAN, automatically power on when power failure.
Buyer's Guide
1) Buyer please select memory and hard drive capacity from " Color " option, and select processor from " Bundle " option ; If you need other combination, please leave us message and we will offer quotation.
2) Buyer select DHL/Fedex shipping method, should be sure your address is belong to normal delivery area, otherwise there will be extra cost for delivery, if your address is remote area, our salesman will inform you asap; or we will ship out by other shipping method;
3) All items price NOT include destination custom taxes and VAT.
| TECHNICAL SPECIFICATIONS | |
| CPU | Intel Celeron J1900, 4 cores, 2.0GHz, up to 2.42GHz Intel Celeron J1800, 2 cores, 2.41GHz, up to 2.58GHz |
| Memory Types | DDR3L 1.35V 1333MHz/1600Mhz Support 1x DDR3L |
| Storage Types | mSATA SSD Support 1x mSATA SSD |
| BIOS | AMI BIOS, ACPI supported, support automatically power on, Wake-On-LAN, virtualization |
| Network Card |
4x Intel i211AT Gigabit Ethernet Controller |
| Ethernet | 10/100/1000 BaseT LAN |
| VGA Ports | 1x VGA |
| USB Ports | 2X USB 2.0 |
| Power | Input AC 100-240V, 50-60 Hz Output DC 12V 5A |
| Dimensions | 175x126x37mm |
| Cooling | Fanless passive |
| Operating Temperature | 0°C (32°F) to 60°C (140°F) |
| Power Consumption | 20W (idle) |
| Package Box | 1x Mini PC 1x Power Adapter 1x Power cord 1x User Manuel |
