Brand Name: FQ777;Material: Metal,Plastic,Carbon Fiber;Package Includes: Original Box,Batteries,Operating Instructions,Charger,Remote Controller,Camera,USB Cable;Remote Control: Yes;State of Assembly: Ready-to-Go;Remote Distance: 30 meters;Dimensions: 9.5x9.5x5cm;Power Source: Electric;Charging Voltage: As Description;Charging Time: 30~50 mins;Features: Model;Warranty: As Description;Warning: NO;Plugs Type: As Description;Motor: Brush Motor;Controller Battery: 3.7V 45C 150MAH (included);Control Channels: 4 Channels;Action Time: about 3.5 mins;Controller Mode: MODE1,MODE2;Age Range: 8-11 Years,12-15 Years,Grownups,> 8 years old,> 14 years old;Model Number: Eachine E010C;Type: Helicopter;Aerial Photography: No;
Reviews:

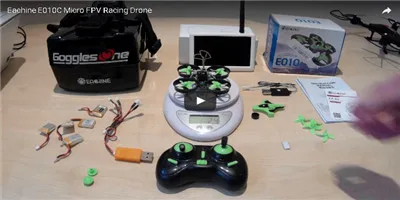

https://youtu.be/i--Mo0d-WY4 https://youtu.be/eajNyNrcFgo
https://youtu.be/s2nB59dLE_E https://youtu.be/DB8JuQWVrHM
Return:
Reviews:
https://youtu.be/i--Mo0d-WY4 https://youtu.be/eajNyNrcFgo
https://youtu.be/s2nB59dLE_E https://youtu.be/DB8JuQWVrHM
Notice:（Important！！）
Only the Mode 2 version (Left Hand Throttle) comes with Camera Cap. (Updated on July 20, 2017)
User Manual,Please Click:Eachine E010c Manual
Description:
Brand name:Eachine E010c
Only the Mode 2 version (Left Hand Throttle) comes with Camera Cap. (Updated on July 20, 2017)
User Manual,Please Click:Eachine E010c Manual
Description:
Brand name:Eachine E010c

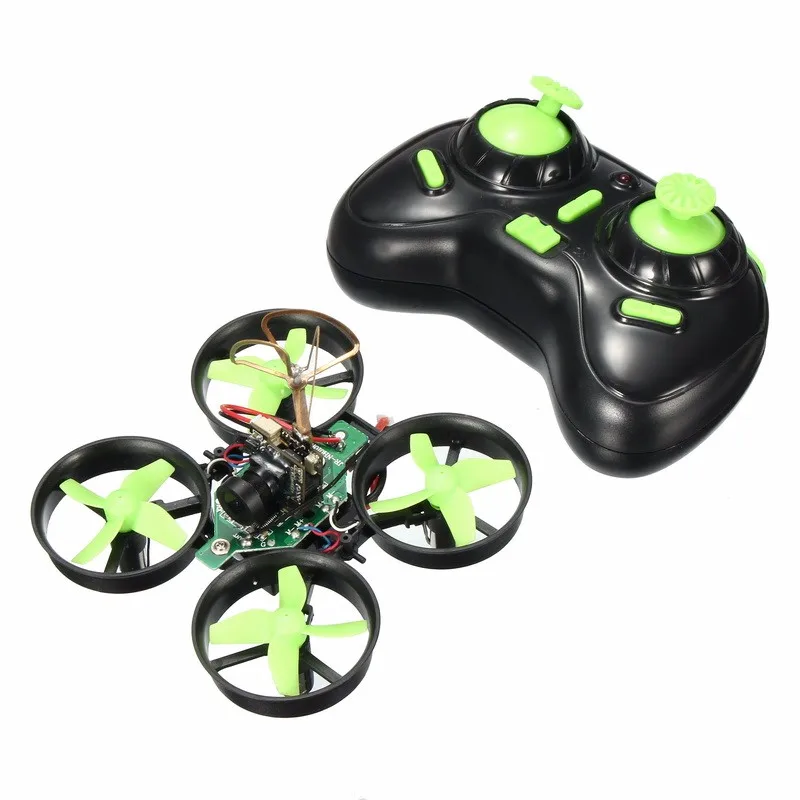

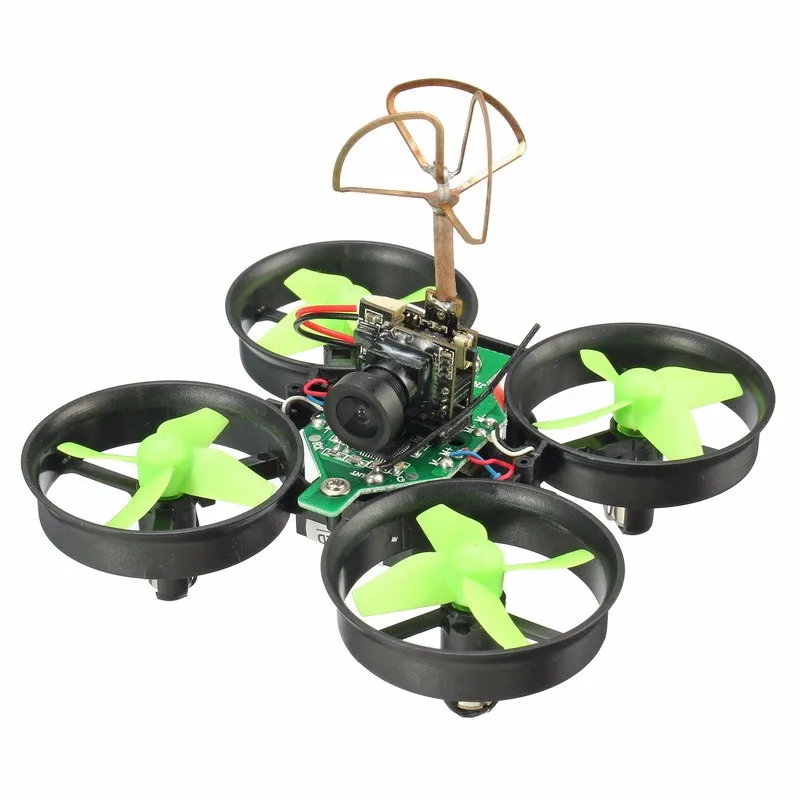

Item name: Micro Racing Quadcopter With 800TVL 40CH 25MW VTX 1/3 "CMOS FPV Camera
Quacopter size:9.5*9.5*5cm
Box size:14*8.6*11cm
Gyro: 6-axis
Frequency: 2.4G
Channel:4CH

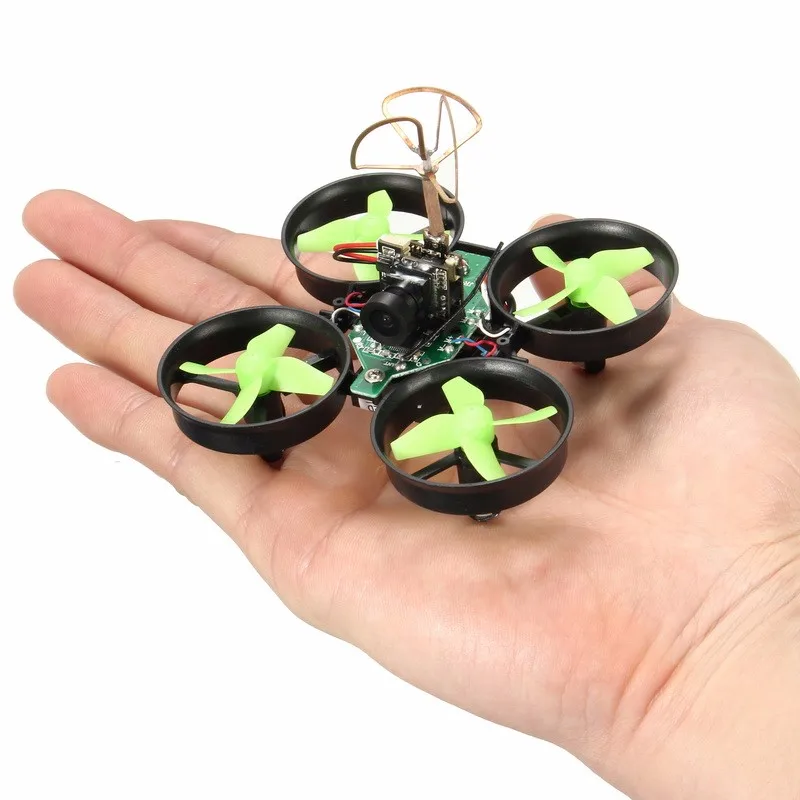

Body weight:21.5 g (with battery)
Camera VTX weight:3.8g

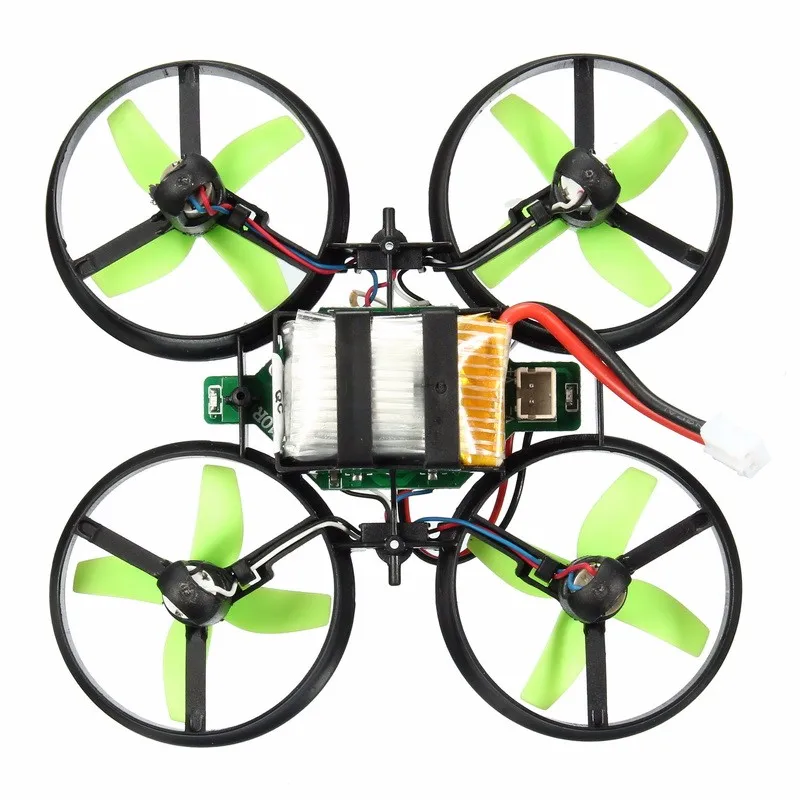

Body battery:3.7V 45C 150MAH (included)
Transmitter battery:2*1.5AA (not included)
Transmitter battery:2*1.5AA (not included)
Charging time:30~50 mins
Flight time:about 3.5 mins
Remote control distance:30 meters
Color:Black red,Black green
NOTE:The camera needs your own installation.
NOTE:The camera needs your own installation.

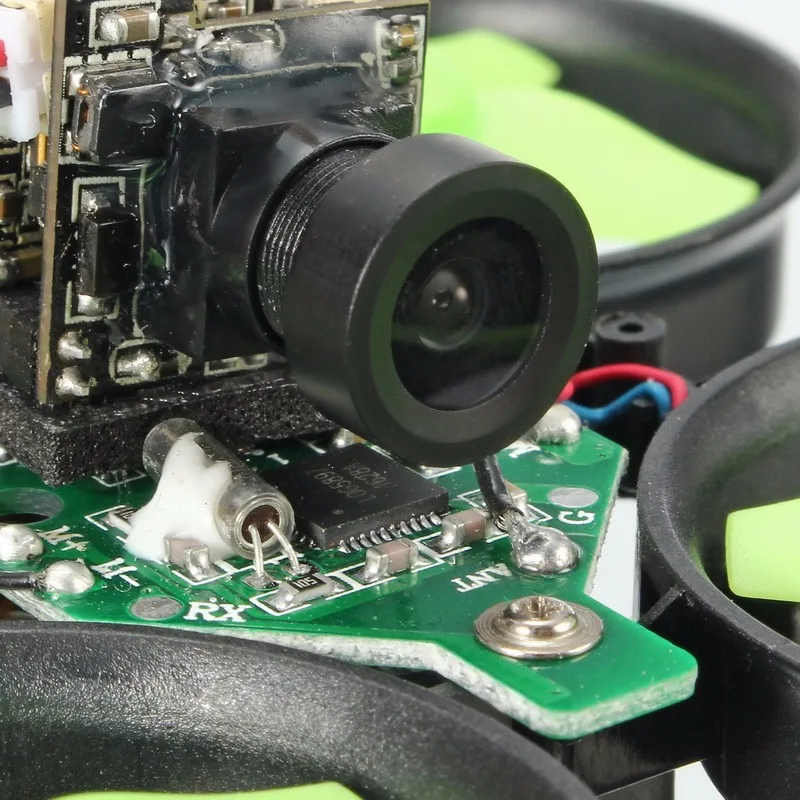

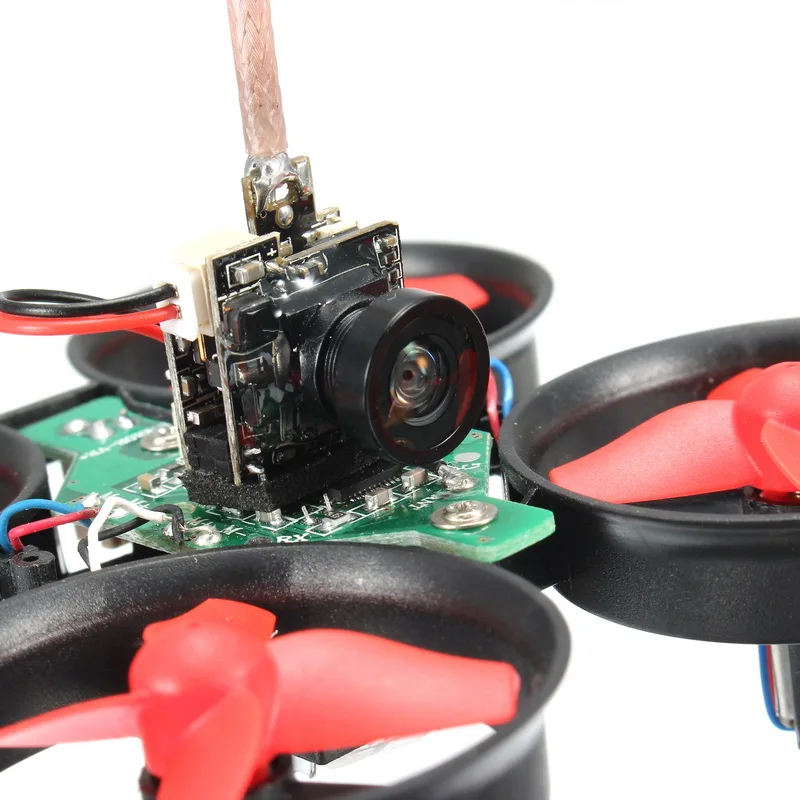

| 800TVL 40CH 25MW VTX 1/3 "CMOS FPV Camera | ||
| Camera: | Sensor: | 1/3 "CMOS |
| Clarity: | M7 800TVL camera | |
| View Angle: | 150° FOV horizontal view angle 170° DFOV opposite view angle | |
| Signal system: | NTSC/PAL (one-button switch) | |
| Power consumption: | 380mA@ 3.7V | |
| Operating voltage: | 3.6-5.5V | |
| Lens mirror diameter: | 2.1mm IR coated FOV150(Level) | |
| Transmitter: | Supporting video system: | NTSC/PAL |
| Output impedance: | 75 Ohm | |
| Operating signal intensity: | 23~24dBm | |
| Output power: | 25mW | |
| Wireless channel: | 40CH | |
| Operating voltage: | 3.6V~5.5V | |
| Current: | 100mA | |
| Sound carrier: | 6.5MHz | |
| Transmit Frequency Table: | band- A : | 5865,5845,5825,5805,5785,5765,5745,5725 |
| band- B : | 5733,5752,5771,5790,5809,5828,5847,5866 | |
| band- E : | 5705,5685,5665,5645,5885,5905,5925,5945 | |
| band- F : | 5740,5760,5780,5800,5820,5840,5860,5880 | |
| band- R : | 5658,5695,5732,5769,5806,5843,5880,5917 | |
| Weight: | 3.8g | |
| Size: | 26x20x18mm (without antenna) | |
| Function: | 1.Camerapicture comparable to CCD | |
| 2.True wideangle lens 150° FOV Horizontal viewing angle 170° DFOV diagonal viewing angle | ||
| 3.Ultra-low power, ultra-lightweight, extremely suitable for smaller aircraft | ||
| 4.Turn to the R channel,ABEF 4 indicator lights bright,can choose1.2.3.4.5.6.7.8 | ||
Features:
- FPV first-person view(indoor racing drone)
- Up / Down / Forward / Backward / Left Turn / Right Turn / Left Fly / Right Fly
- Rudder speed( high and slow speed)
- Up / Down / Forward / Backward / Left Turn / Right Turn / Left Fly / Right Fly
- Rudder speed( high and slow speed)
- 360° turning, Pattern tumbling
- One key return, easily recalled
- Headless mode ,compass- headless ,flight with remote control
- Lithium battery and USB cable with protection
- Breakthrough conventional wind blades, the flight stability is more powerful

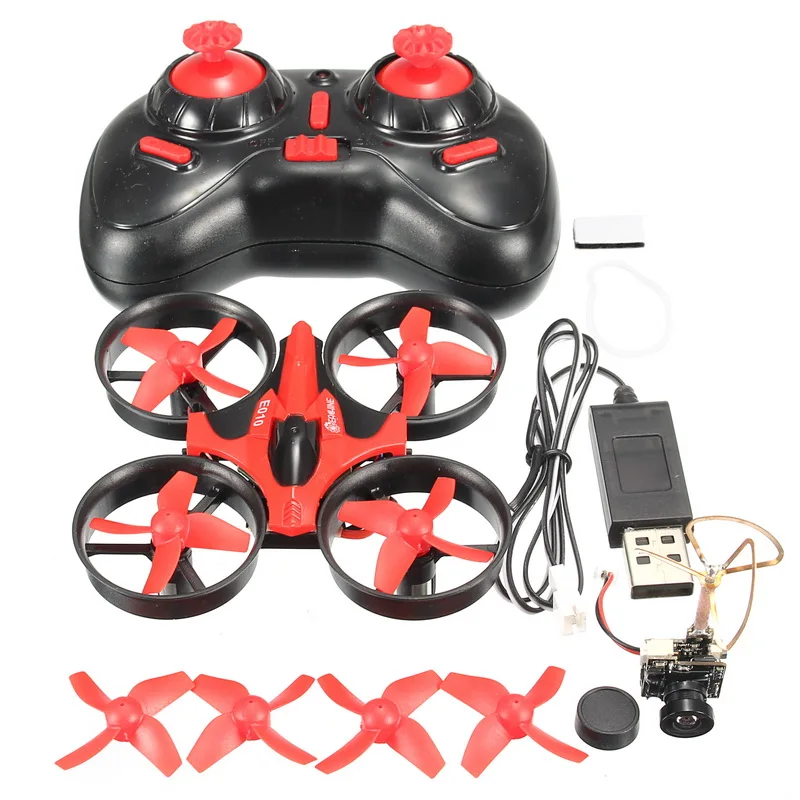

Package included:
1x Quadcopter
1x Transmitter
1x Quadcopter
1x Transmitter
1x 800TVL + 40CH 25MW VTX 1/3 "CMOS FPV Camera
1x USB Charging cable
1x 3.7V 150MAH 45C battery
4x Blades
1x Body cover
1x Body cover
1x Manual

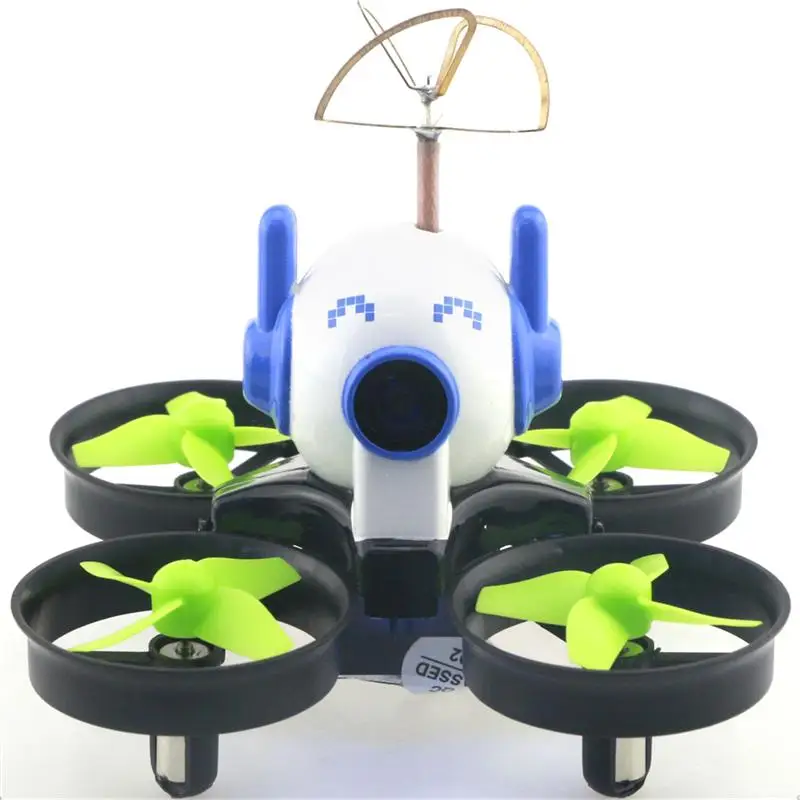

1x Camera Cap (only the Mode 2 included) Updated on July 20, 2017
1x Camera Cap (only the Mode 2 included) Updated on July 20, 2017
