specifics
-
Place of Origin: China (Mainland)
-
Brand Name: DC Converter
-
Size: 24x18mm
-
Output Current: Rated 1A-1.5A
-
Output Power: 1 - 50W
-
Type: DC/DC Converters
-
Input Voltage: 1-5V
-
Output Voltage: 5.1-5.2V
-
Model Number: Converter
-
Weight: 0.03g
-
Efficiency:: Up to 96%
-
Switching frequency:: 500KHz
-
Output ripple:: 30mV (MAX) 20M bandwidth
-
Voltage indication:: LED lights with load
-
Operating Temperature:: Industrial (-40°c to +85°c)
-
Output:: USB Output
Feature:
-

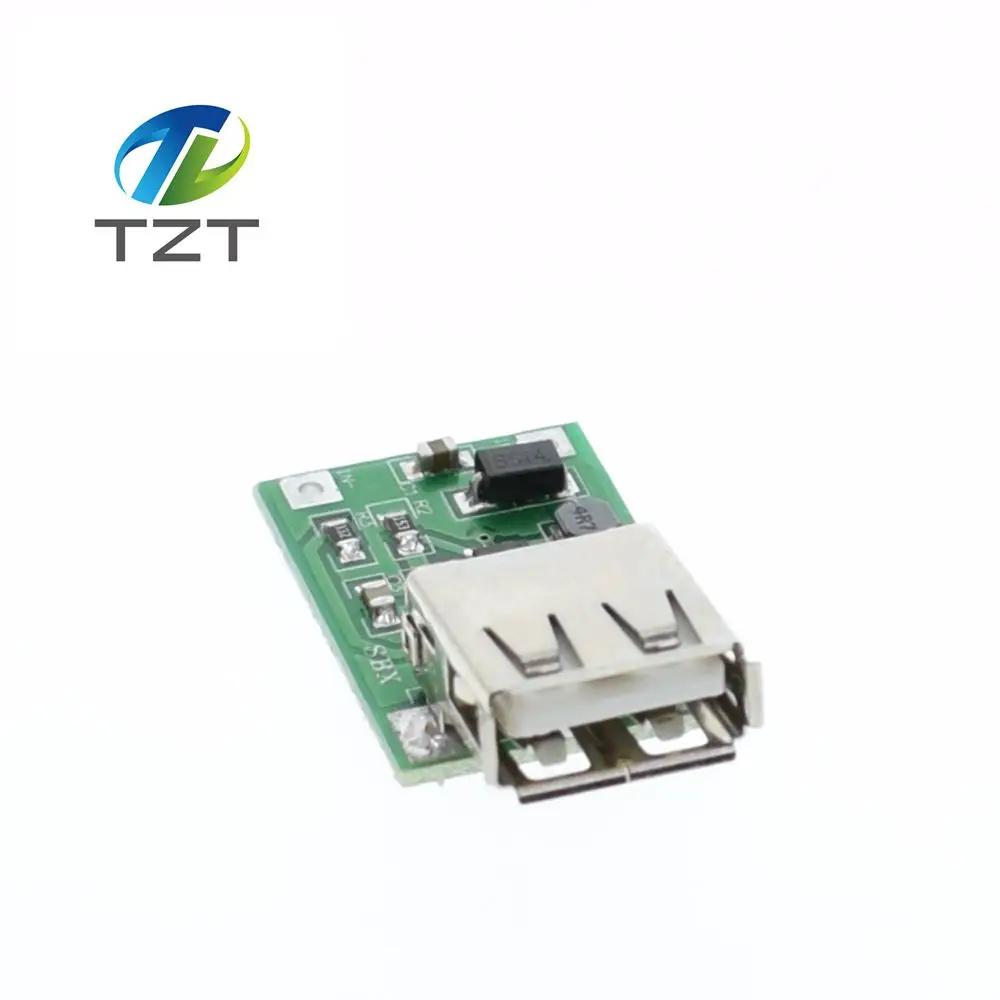

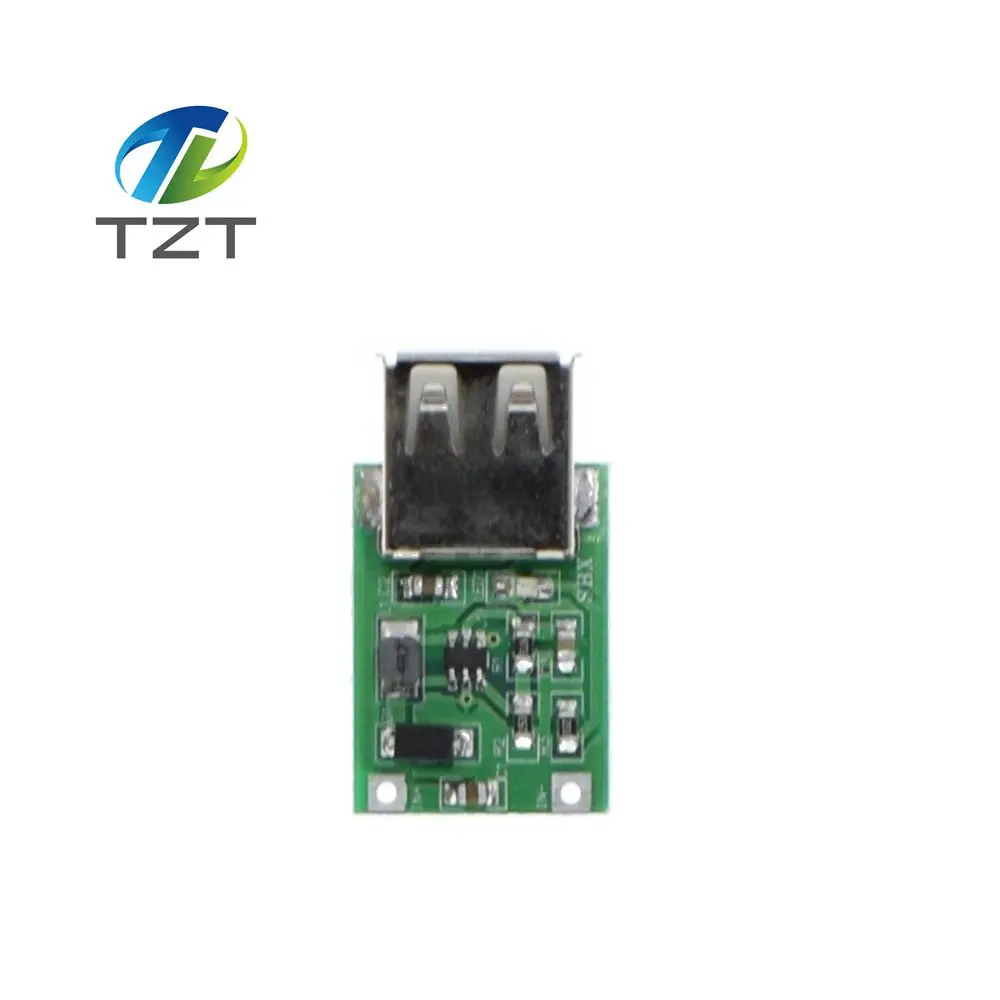

Module Properties: non-isolated step-up module (BOOST)
-
input voltage: 1-5V
-
Output voltage: 5.1-5 .2 V
-
Output Current: Rated 1A-1.5A (single lithium input), the maximum 1.5A (single lithium input)
-
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
-
Switching frequency: 500KHz
-
Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
-
Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
-
Operating Temperature: Industrial (-40°c to +85°c)
- Full load temperature rise: 30°c
-
Quiescent Current: 130uA
-
Load regulation: ± 1%
-
Voltage regulation: ± 0.5%
-
Dynamic response speed: 5% 200uS
-
Short circuit protection: None (Please use the lithium battery with protection.)
-
Input Reverse Polarity Protection: None
-
Connection: Welding
-
Input: IN + Postive, IN-Negative
-
Output: USB Output
