Product information:
Thread size: male thread, 10/24" .
Material: brass with nickel plating, ceramic orifice
Spray angle: 30-90 degree

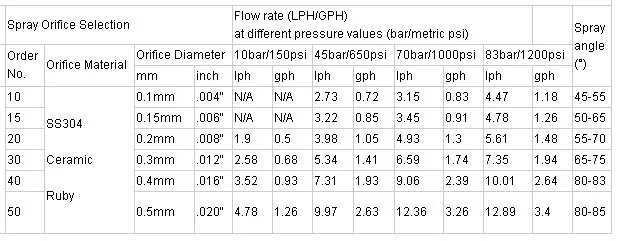

Orifice diameter: 0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.5mm, please remark which you want, if no remark, we will dispatch 0.2mm nozzle
0#,1010=0.1mm 1#,1510= 0.15mm 2#, 2010= 0.2mm 3#,3010= 0.3mm 4#,4010= 0.4mm 5#,5010= 0.5mm 6#, 6010= 0.6mm
50 pcs per lot
Product feature:
• High Pressure Water Mist Nozzle
• Anti-drop device and non-clogging
• Very small drops Water,3 micron --- 70 micron
• Inner with decomposed turbulent flow vane
• Orifice inserts, cores and strainers are easily removed for inspection or cleaning.
• The nozzle core can be SS,ceramic and rubber

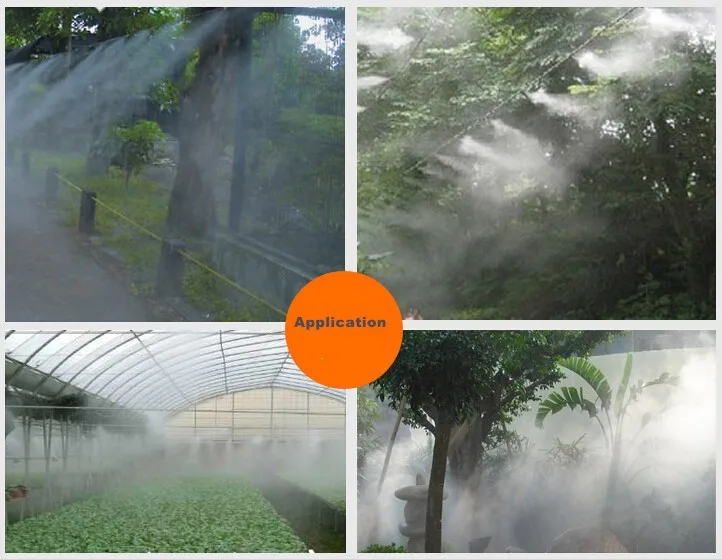

• Application
Wet cleaning Air humidifying
The chemical treatment Chemical sprays
Tobacco humidification Tablets coating
The liquid spraying Disinfect
Evaporative cooling flue gas Fruit spray wax
Parts of cooling Salt spray test
The workshop humidifying Artificial fog
Other places humidification

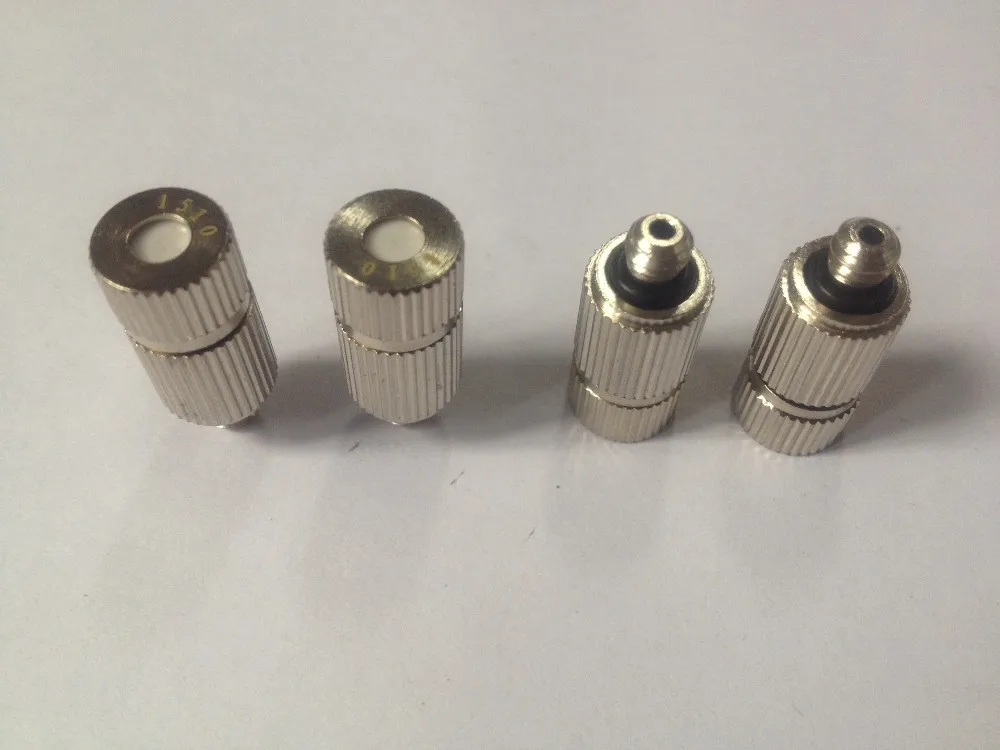

Product show:
FAQ
1,Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2,How to order?
You can select the model you want and order from Aliexpress directly or contact us for a customized model, we will draft an order specially for you.
3,How to pay?
We accept the payment via ESCROW, T/T (bank transfer) , Western Union and Paypal, please inquire us about the details in advance.
4,How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 5-7 working days.
5, How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, EMS,TNT etc)
6,How to return ?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed.
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
Company information
GL spray nozzle Ltc is a professional nozzle manufactor in China, we have more than 20 years experience on nozzle produce. GL spray nozzle has more than 250 workers now, and more than 3000 kinds of nozzles. Our customer is in more than 20 countries all round the world and our annual turnover is keeps increasing.
“Excellent quality, best service” is our slogan. We hope to cooperate with more customers for mutual development and benefits,welcome potential buyers to contact us.
Product introduction
1, For industrial purpose
a, Flat fan nozzle
b, Full cone and hollow cone nozzle
c, Square nozzle
d, Spiral nozzle
e, Mixing eductor
f, Wind jet nozzle
g, Air shower nozzle
h, Combine type nozzle
1, Dovetail nozzle
2, Two piece combo type
3, Three piece combo type
4, Adjustable ball base nozzle
5, Clamp nozzle, snap-on nozzle
6, Flange connection,Welding sleeve, PSMF and other accessories
...................
2, Misting nozzle
a, High pressure misting nozzle
b, Low pressure fine spray nozzle
c, Air atomizing nozzle ( Multi-spray nozzle, multi-connection type, customized )
d, Desulfurization and denitration spray gun
e, Spray gun
1, Lumina ST series( ST-5, ST-6,ST-7, ST-8, Multi- inlets)
2, Meiji A100 ( Multi-inlets)
3, FIne spray oil nozzle (Multi-inlets)
3,Wahing nozzle
a,Tank washing nozzle
1, Stationary tank washing nozzle
2, Rotating tank washing nozzle
3, High pressure washing nozzle
4, Rotating 360 degree pipeline cleaning nozzle
4, Agriculture nozzle
a, Agriculture irrigation nozzle
1, Three spray-head irrigation nozzle
2, One spray-head irrigation nozzle
3, Clamp and snap-on nozzle
b, Agriculture pesticide sprayer nozzle
c, Agriculture planting humidify nozzle
5, Environmental conditioning system
a, Publice place like recreation, leisure, catering
b, Humidification, cooling, dust control for workshop
c, Cooling for large machine set
d, Cooling, filtration,dilution for oil and petrochemical industry
f, Othre purpose
6, Non-standard customized
a, Produce accroding to your layout
b, Produce according to your original sample
c, Produce according to your requirements.
