Grid Tied Plug In Ground Mount LEAD & ADD-ON Home Solar Kit
These Panels are plug in ready and are the fastest way to step into solar requiring under thirty minutes from delivery to operation. Rather than dealing with installing a large and costly array, these panels can grow with your electrical and budget needs. They are extremely easy to move with you should you ever end up in a new house or apartment.
|
DimensionsEach unit when assembled is roughly 60" x 65". Panel itself is 60"x40" |

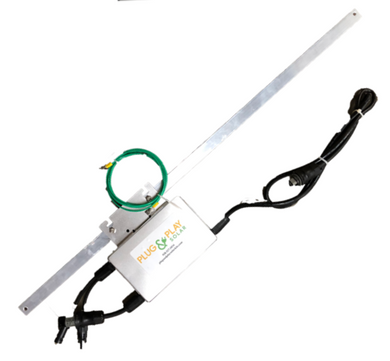

From Panel To PowerThe unit works by taking solar power produced by the panel and converts it over to power that is the same as what any of your home electronics and appliances use. Upon delivery, all you have to do is unbox it, place it facing the sun, connect two panels together and plug it into a dedicated wall outlet. The outlet you use to plug into must be on its own 15 or 20 amp breaker. The DC power from the panel is converted to AC power by means of a preinstalled microinverter. This microinverter outputs 120V and is ready to feed back into your panel, subsidizing the power being used by all of your household electronics. |
ProductionEach unit produces approximately 1 kWh per day** in most areas, but this depends on the location and amount of shading. This amount of electricity is enough to offset the usage of a basic energy star refrigerator. |
Ground MountThe ground mounted unit comes with four easy to attach aluminum legs that take 15 minutes to attach. The legs then need to be secured with either cinder blocks, sandbags, or ground screws to reduce the effect of wind and other elements. When the unit arrives you'll need two 7/16" wrenches to finish the assembly. |
Lead UnitThe Lead Unit includes a built in energy monitor, allowing wireless monitoring of your system from anywhere in your house. The wireless production monitor measures real-time power production and provides daily, weekly, and monthly energy production history. It also keeps track of cost savings and CO2 offset. The Lead Unit also comes with a 25' cord making it easy to reach your outdoor outlet from the ground or roof. Up to five add on units can be attached to the lead unit on the same wall outlet/circuit breaker. These units easily plug into the Lead Unit like Christmas lights and the lead unit’s monitor measures the combined output. |
The Lead Unit Includes:2x 275 Watt solar panel 2x 250 Watt microinverter 2x Aluminum ground mounting legs 2x Aluminum Cross bar for hardware attachment Wireless energy production monitor Pre-wired – includes a 25′ power cord for plugging into a standard 120Vac outlet. All equipment is UL listed Everything you need to go solar in minutes! |
|
|
|
*If checkout is completed, card is charged and item will be shipped as soon as possible.
**These systems are converting power from DC to AC so that it can safely be plugged into a wall outlet. As a result, there is always a roughly 20% loss in production occurring in the conversion from DC to AC. In perfect conditions (tilt, weather, panel facing direction, etc.) expect them to produce at 80% of the 250W limit of the microinverter.
Want to know more about how these units work and why they're the easiest to install unit on the market? Read the FAQ.
Please read more info HERE about the safety and installation concerns with the Plug and Play system.
Ground Mount Manual
Warranty and Return Information
Eligible for 26% federal tax credit
