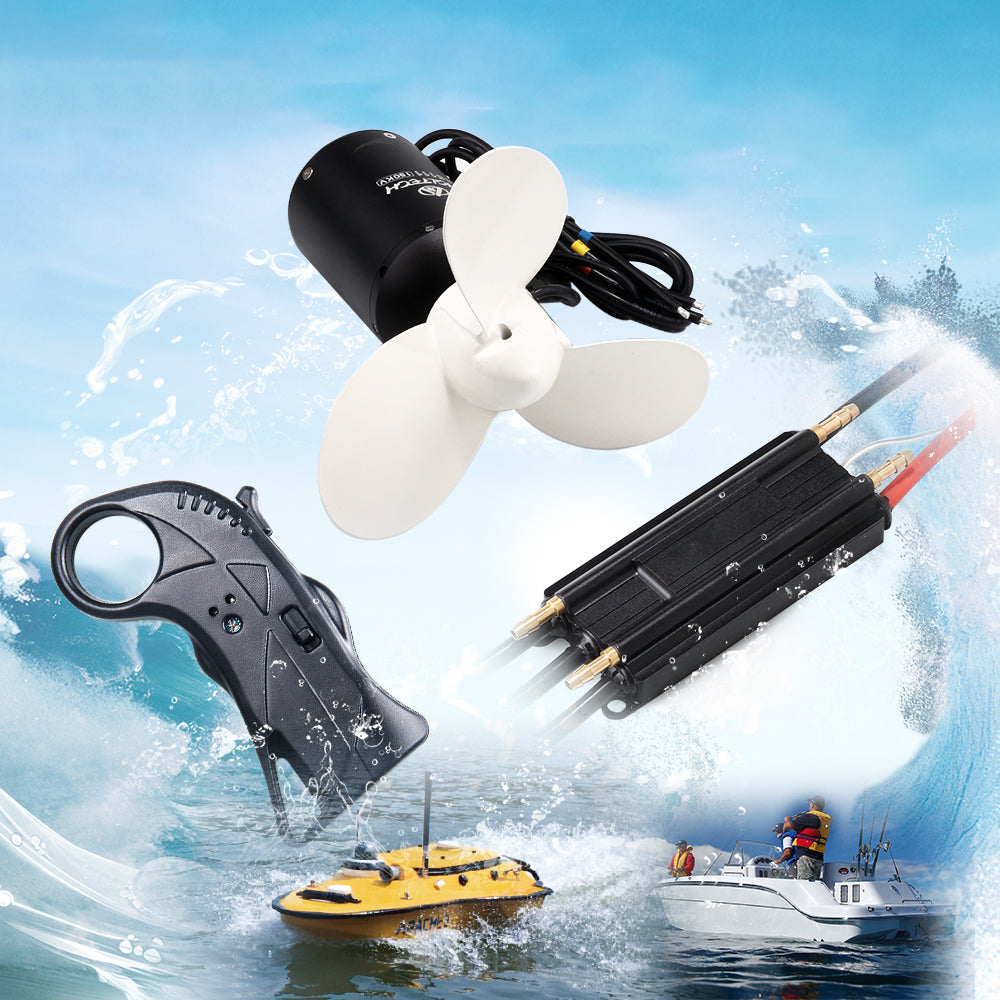

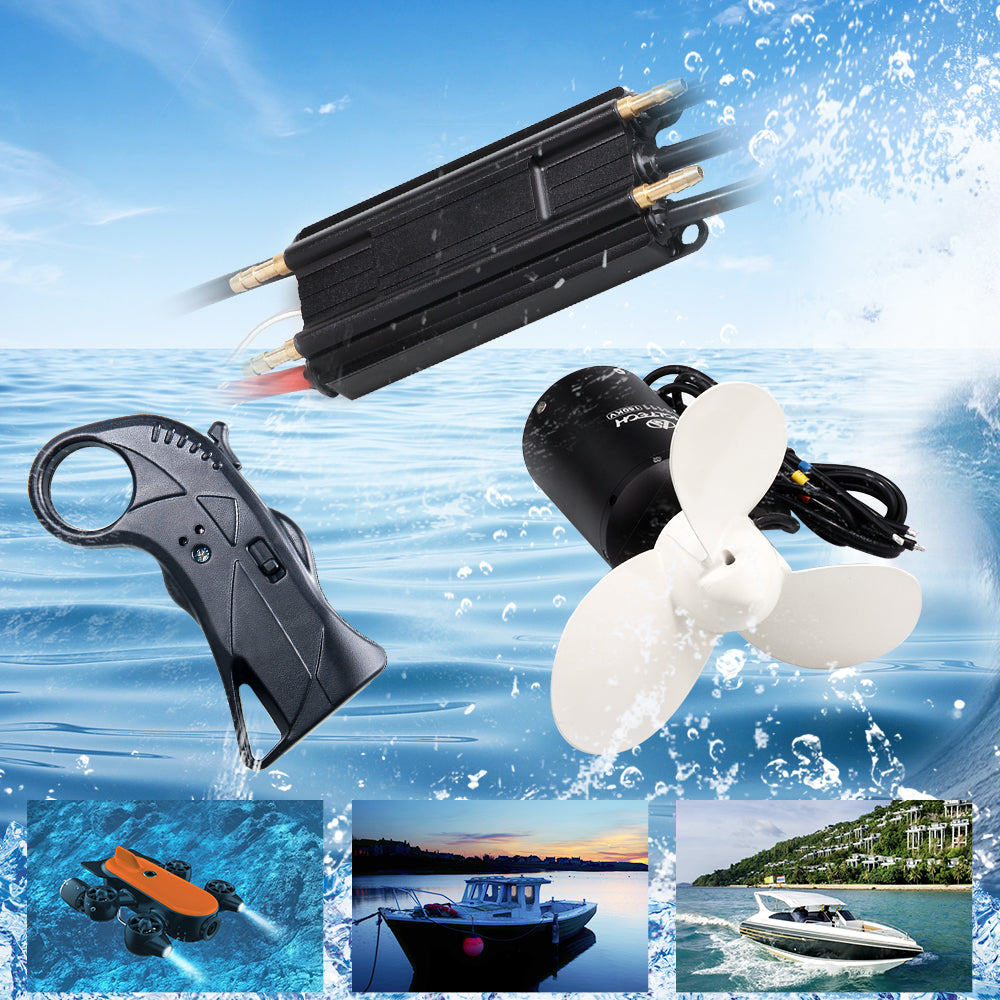

Sea Lion Watercooled 120A Electric Speed Controller + WH4 Waterproof Remote + 65111 Motor with Propeller for Efoil | Esurfboard | Hydrofoil | ROV | Robot

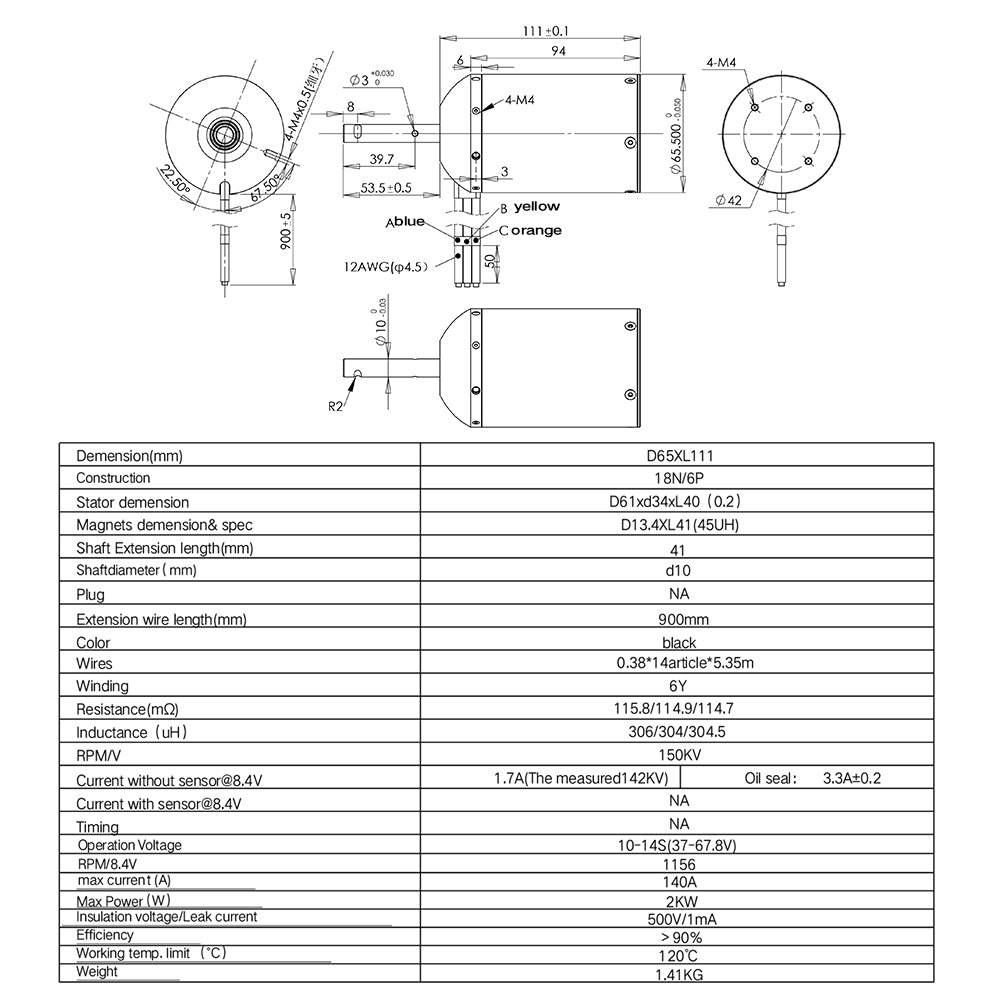

65111 motor Specification:
Model type: 65111
Motor dimension: 65*111mm
Shaft:10mm
Motor stator slot: 12
Motor pole: 12
Motor KV:150
Motor Wire: 12AWG wire
Maximum voltage: 14S
Maximum current 140A
No-load current: 1.7A 142KV
Maximum power: 2kw and 1.5kw continuous
Resistance:115.8/114.9/114.7mΩ
Waterproof level:IP68
Weight:1.41kg
Sea Lion 120A Brushless ESC
Feature
1 Output: Continuous current 120A, burst current 240A up to 10 Second.
2 Input: 5-12 cells LiPo.
3 BEC Output: No BEC
4 Water Cooling Pipe:4.6mm,Fully waterproof
5 Size: 105*48*23mm.
6 Weight: 230g
7 Power and motor line: 12# silicone wire 160mm,no connector signal line: white black with JR male 300mm
Function
1 Top quality electronic components to enhance the current endurance ability of the ESC.
2 Special designed for RC boat, with excellent start-up, acceleration and linearity features.
3 With water cooling heat-sink, the ESC is splash-proof
4 Bidirtion "Forward/Backward" or "Forward" selection
5 Multiple protection : Stall protection and Low voltage, Over-heat protection and lose signal
6 Multiple program methods supported: LCD Program Card or USBLINK with PC software. Very easy to program the ESC or update firmware online,the remote control can also be used to modify the parameters.

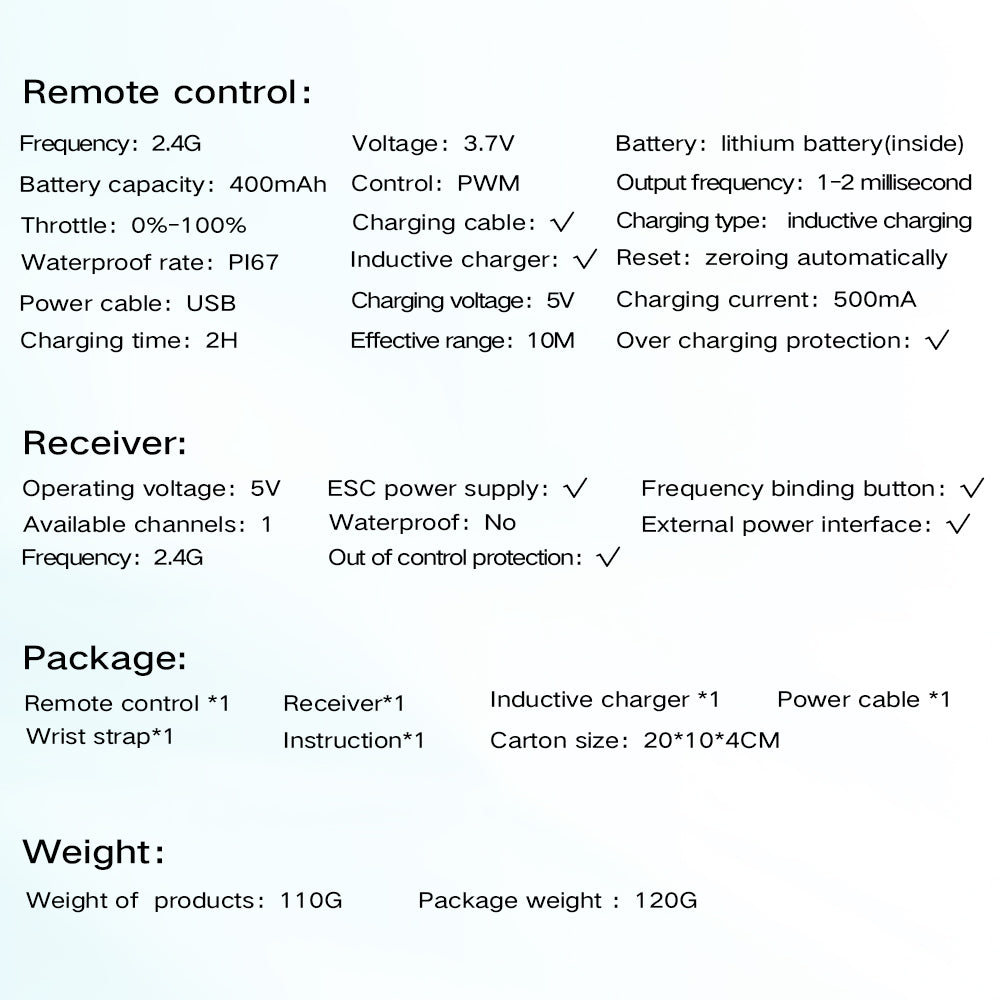

Remote control：
Frequency: 2.4G
Voltage: 3.7V
Battery: lithium battery( inside)
Battery capacity: 400 mAh
Type of control: PWM
Output frequency: 1-2 millisecond
Throttle: 0-100%
Reset: zeroing automatically
Waterproof rate: PI67
Charging type: inductive charging
Inductive charger: ✔
charging cable: ✔
Power cable: USB
Charging voltage: 5V
Charging current: 500MA
Charging time: 2 H
Over charging protection: ✔
Effective range: 10M
Receiver:
operating voltage:5V
ESC power supply: ✔
External power interface: ✔
Frequency binding button: ✔
Out of control protection: ✔
Waterproof: no
Available channels:1
Frequency: 2.4G
Package:
W4 Remote control *1
Receiver *1
Inductive charger *1
Power cable *1
Wrist strap *1
Instruction *1
Carton size: 20*10*4CM
Weight：
Weight of products：110G
Package weight ：120G
