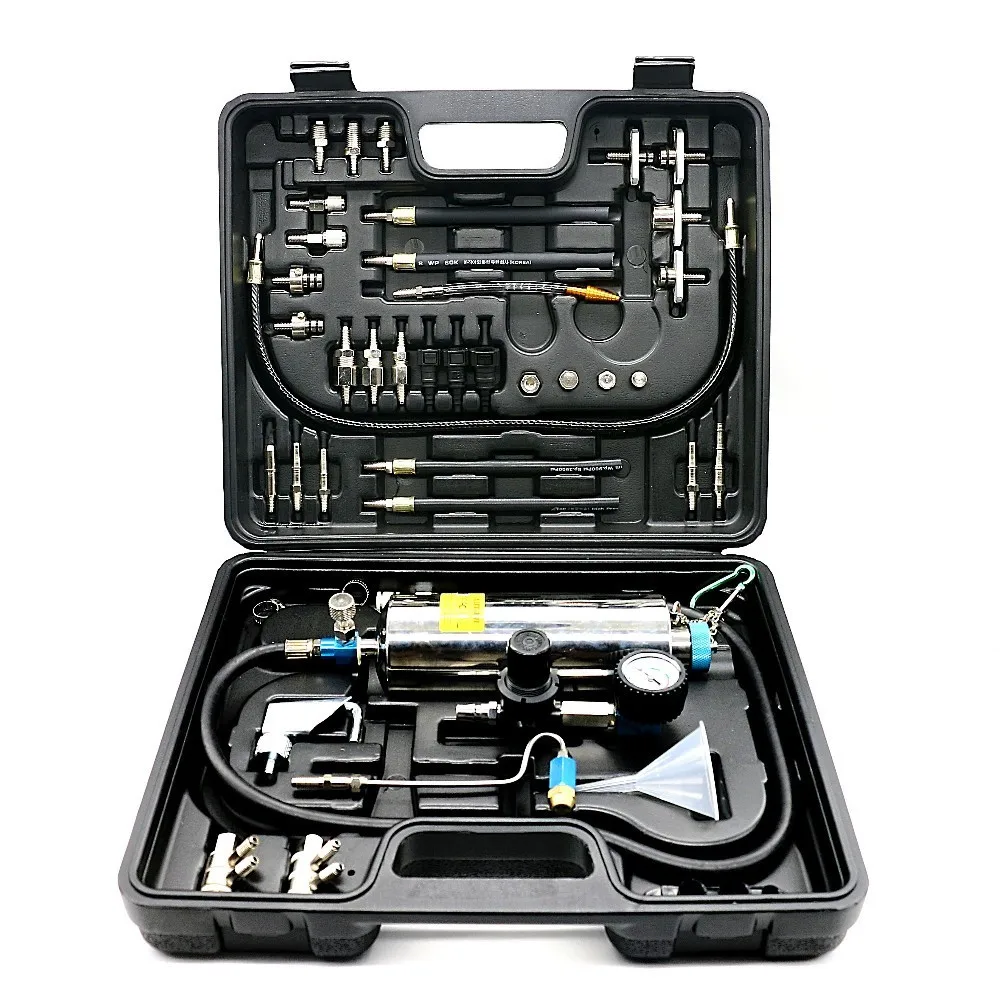

Hot Sale!!!Original AUTOOL C100 Auto Injector Cleaner Non-Dismantle Cleaner Petrol Injector Fuel System Throttle Valve Cleaner

EFI Model :

1. Find out the fuel return hose, disconnect it and plug it with suitable adaptor;

2. Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper

adaptor;

3. Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please

move the fuse

of the fuel pump so that the pump will not work;

4. Charge the cleaning fluid into the tank of the cleaner;

5. Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;

6. Check all connect point to make sure there is not leakage;

7. Start the engine to clean the fuel system.


To the Throttle Style:

To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.


The way to identify the inlet and return hose:

1. Generally speaking, inlet hose is bigger, return hose is samaller;

2. There is always a filter connected in the inlet hose side, and a buffer in the return side;

3. There is arrow on the hose to show the fuel flow direction.


NOTE:

To the throttle style system, the way of connection is the same, just adjust the pressure of the air source

1-5PSI
