Brand Name: EACHINE;Material: Metal,Plastic;Package Includes: Original Box,Batteries,Camera;Remote Control: No;State of Assembly: Almost Ready;Remote Distance: as description show;Dimensions: as description show;Power Source: Electric;Charging Voltage: 2S 3S battery;Charging Time: 30 MINS;Features: Model;Warranty: No;Warning: No;Plugs Type: as description show;Motor: Brushless Motor;Controller Battery: not included;Control Channels: 12 Channels & Up;Action Time: 3.5mins;Controller Mode: MODE1,MODE2;Age Range: 8-11 Years,12-15 Years,Grownups,> 14 years old;Model Number: Eachine Aurora100;Type: Helicopter;Aerial Photography: No;
Return:
Description:
Brand name: Eachine

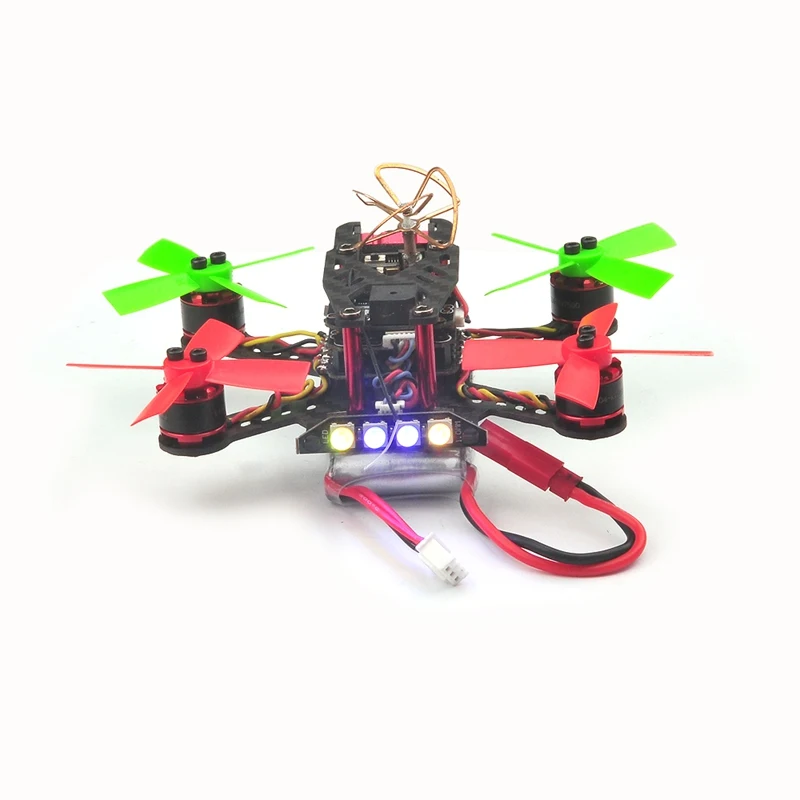

Item name: for aurora 100 Mini FPV Racing Brushless Drone BNF
Wheelbase: 100mm
Size: 120mm*120mm*65mm
Weight: 61.7g( battery not include)
Motor: Eachine 1104 7500KV brushless motor
ESC: 10A BLHELI_S 16.5 1-2S 4 in 1 ESC Dshot600
Propeller: 50mm 4-blades propeller
Receiver: Receiver: Frsky/DSMX/Flysky AFHDS2A (optional)
Camera: 600TVL HD CMOS 1/4 inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Flight controller: Minicube Betaflight F3 6DOF Flight controller built-in OSD
OSD: Betaflight OSD
Firmware of flight controller: Betaflight 3.1
Flight time: 3-4minutes
Rear LED Ready( LED_Strip function)
Buzzer Ready
Battery: 7.4V 450mah 80C lipo battery
Minicube F3 6DOF flight controller:
Size: 27mm*27mm*5mm
Mount hole: 20mm*20mm
Processor: STM32 F303 MCU
Sensor: SPI Sensor MPU6000
Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
Firmware version: Betaflight 3.1 Dshot ready
Target: OmnibusF3
Minicube 10A BLHELI_S 4 in 1 ESC Dshot600:
Size: 27mm*27mm*5mm
Mount hole: 20mm*20mm
Firmware version: BLHELI_S 16.5
BB2, 48MHZ Chip
Lipo Battery: 1-2S
Con. Current: 10A
top Current: 15A (10S)
BEC: 5V 0.1A
Programming: YES
Betaflight passtrough ready
Dshot600 ready(Default)
Support oneshot42 oneshot125 Multishot Dshot
Damped light on
Features:
Extremely light and more powerful
STM32 F303MCU + BLHELI_S ESC make your Operating feel more stabilly and silky
Adjustable Angle of Camera
Jaw-dropping flight performance
Betaflight support
Acro mode / Air mode /Angle mode support
Built-in OSD (Using F3 MCU controls OSD over SPI bus in DMA mode)
OSD Configuration has been include in BETAFLIGHT GUI
Radio Stick to control PID Tunes
BLEHELI_S pass-through ready
Telemetry RSSI Output ready
Notice:
1. BNF receiver (intergrated buzzer) option:
Compatible D8 modee SBUS receiver (RSSI ready)
Compatible Flysky 8CH AFHDS2A receiver
Compatible Specktrum DSM2/DSMX receiver
2. Compatible:
1). Frsky Receiver compatible with FRSKY ACCST, X9D(Plus)DJT/DFT/DHT
2). Flysky Receiver compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F.
3). DSM2/DSMX Receiver compatible with Satellite receiver.
Package include:
1 x Eachine for aurora 100 Frame kit
1 x Betaflight F3 6DOF flight controller build-in OSD
1 x Frsky/DSMX/Flysky AFHDS2A Receiver (optional)
4 x Eachine 1104 7500KV brushless motor
1 x Minicube 10A BLHELI_S 16.5 1-2S 4 in 1 ESC Dshot600
4 x 50mm 4-blades propeller CW
4 x 50mm 4-blades propeller CCW
1 x 600TVL HD CMOS 1/4 inch camera
1 x 5.8g 25MW 48CH NTSC/PAL VTX
1 x 7.4V 450mah 80C lipo battery (comes without charger)
1 x WS2812 LED Board
