Specification:
Brand name: Eachine
Model: Revenger55

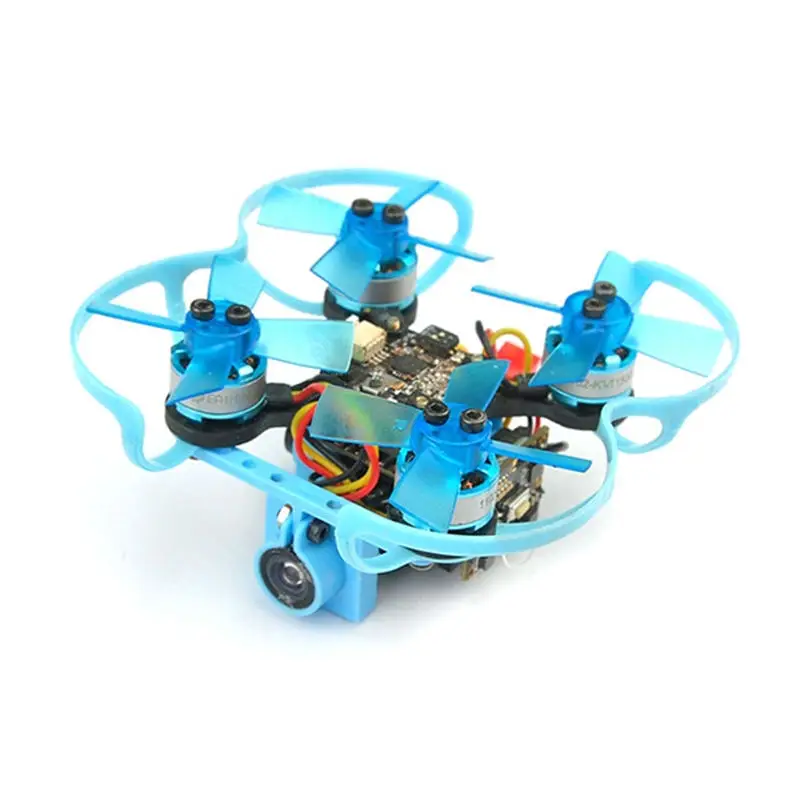

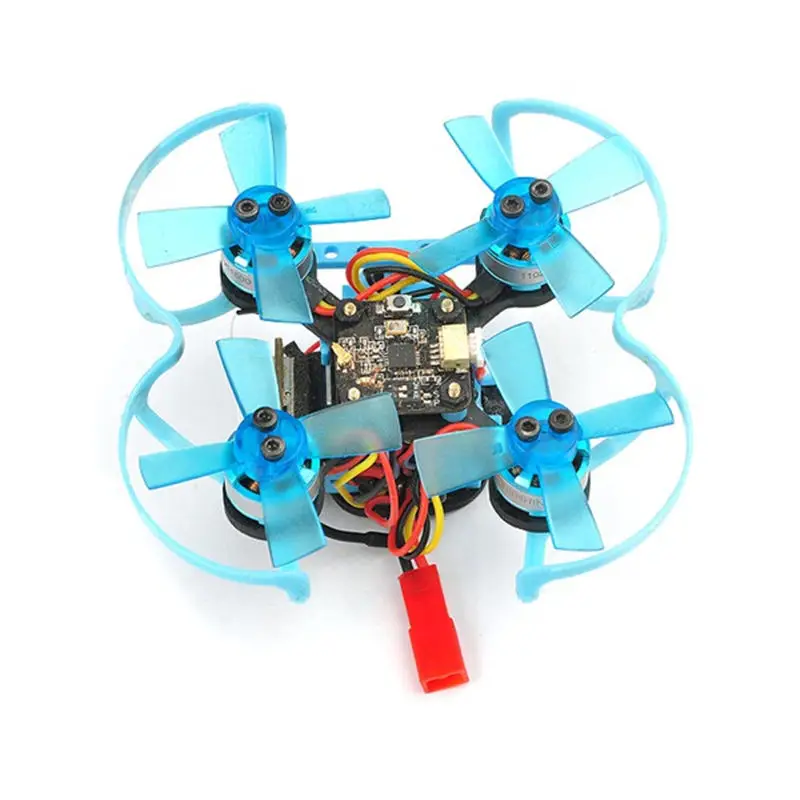

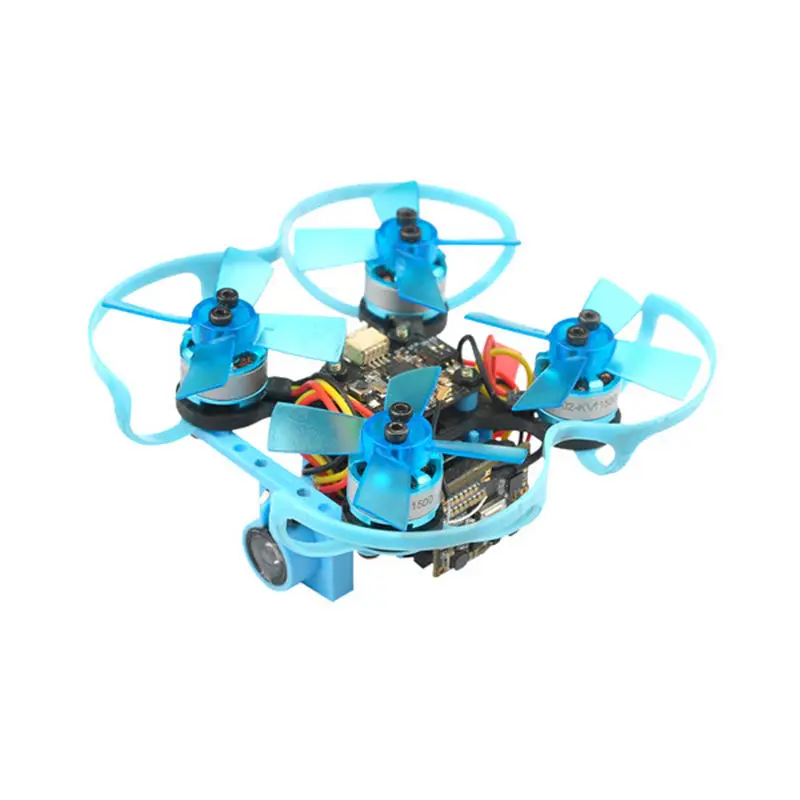

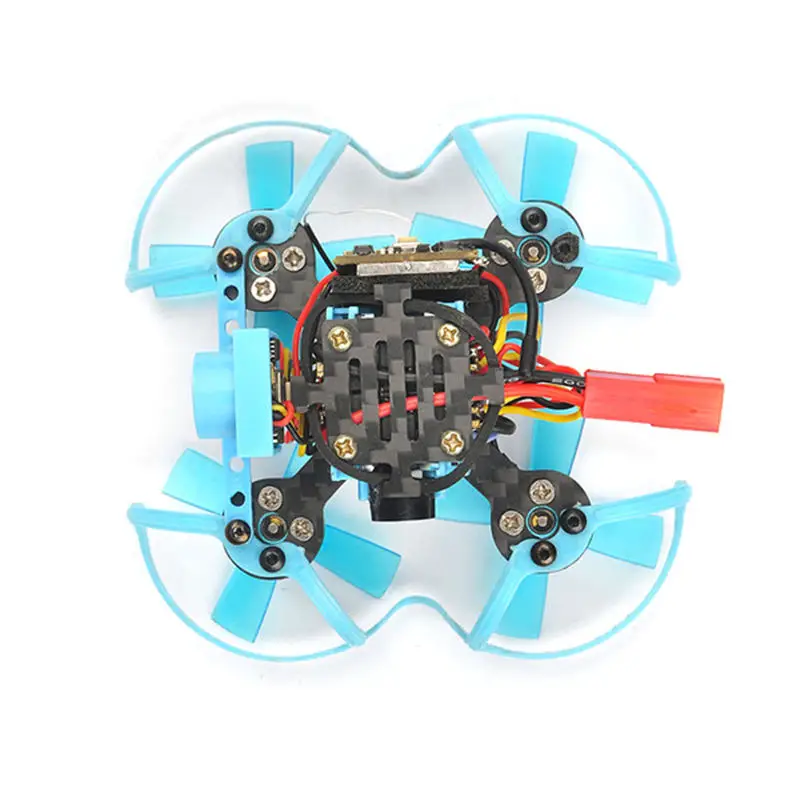

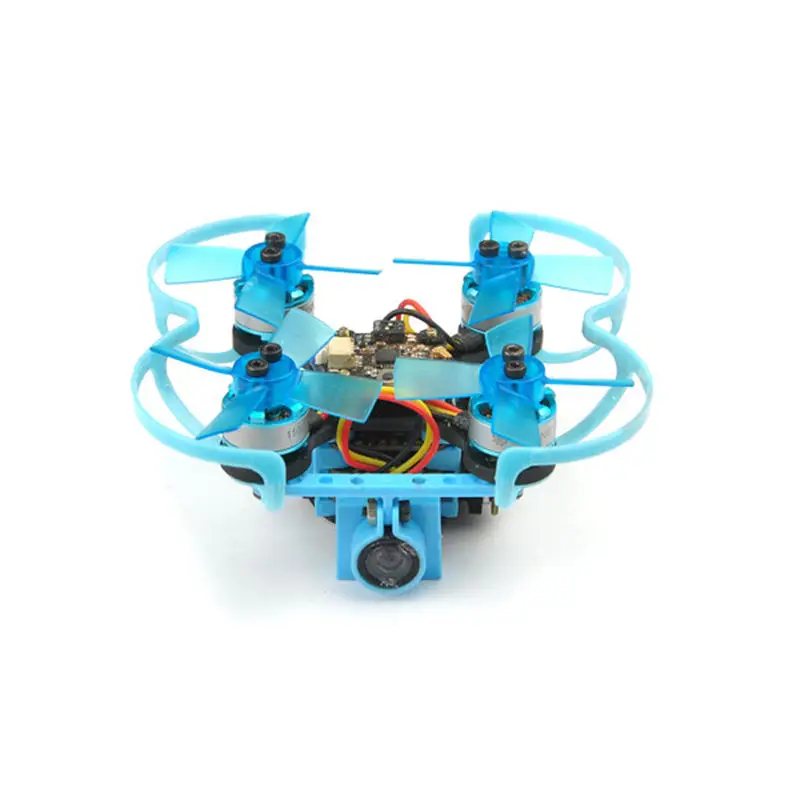

Item name: Eachine Revenger55 Micro 55mm FPV Racing Drone
Wheelbase: 55mm
Size: 82mm*82mm*37mm

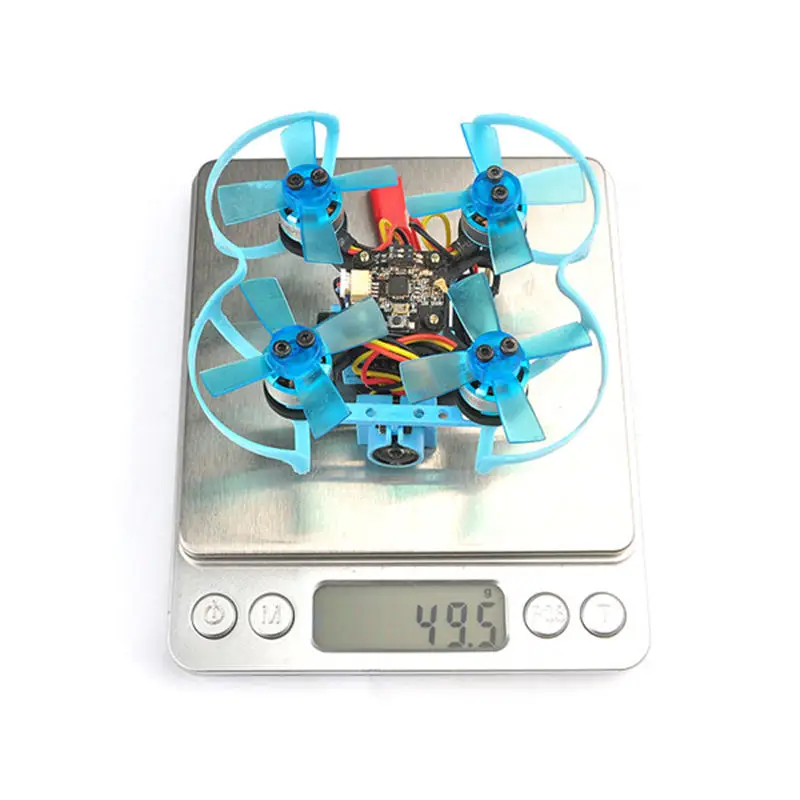

Weight: about 49.5g (battery not include)

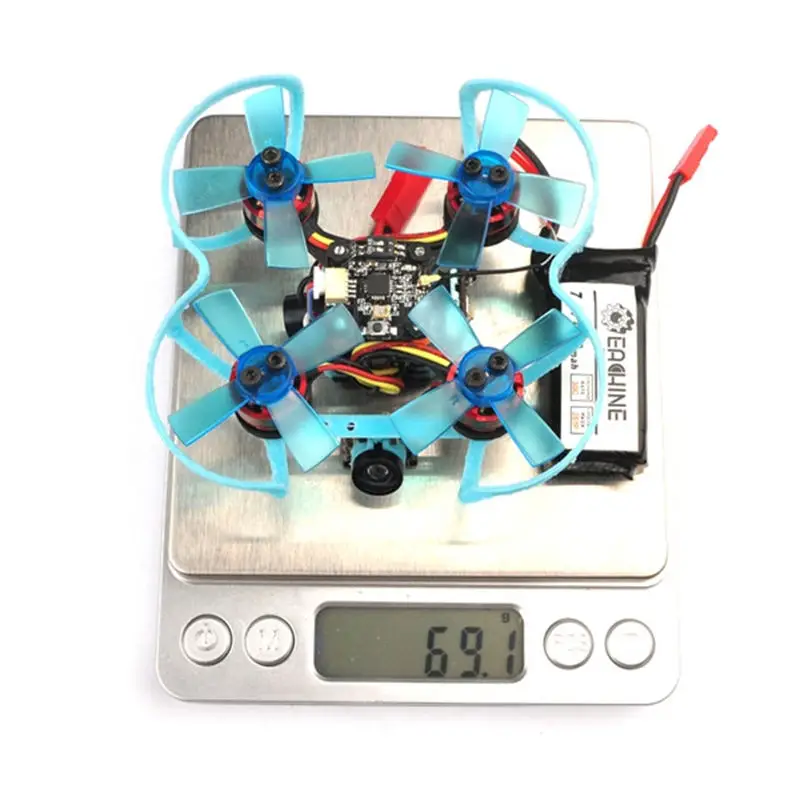

Take off weight: about 69.1g
Flight controller: F3 Flight controller
Motor: Eachine 1102 KV11500 brushless motor
Propeller: 38.1mm 4-blades propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Battery: 7.4V 400mah 40C lipo battery
Firmware of Flight controller: Betaflight 3.1
Flight time: 3minutes
Buzzer Ready
BNF Receiver Option:
- Original Frsky XSR-E receiver (Smartport ready)
- Compatible Frsky SBUS D8 mode receiver (RSSI Output)
- Compatible Flysky 8ch AFHDS2A receiver
- Compatible Specktrum For dsm2/For dsm x Compatible receiver
Flight controller Specification:
Size: 20mm*20mm*4mm
Mount hole: 15mm*15mm
Processor: STM32 F303 MCU
Sensor: SPI Sensor MPU6000
Firmware version: Betaflight 3.1 Dshot ready
Target: OmnibusF3
ESC specification:
6A BLHeli_S Dshot 2 In 1 ESC
Size: 20mm*20mm*4mm
Mount hole: 15mm*15mm
Firmware version: BLHELI_S 16.5
BB2, 48MHZ Chip
Lipo Battery: 2S
Con. Current: 6A
Max Current: 10A (10S)
Programming: YES
Betaflight passtrough ready
Dshot600 ready(Default)
Support oneshot42, oneshot125, Multishot and Dshot 150/300/600
Damped light on
Features:
-Extremely light and more powerful
-STM32 F303MCU + BLHELI_S ESC make your Operating feel more stabilly and silky
-Adjustable Angle of Camera
-Jaw-dropping flight performance
-Betaflight support
-Acro mode/Air mode/Angle mode support
-BLEHELI_S pass-through ready
Package included:
1* Eachine Revenger55 micro 55mm frame kit
1* Frsky D8 reciever/Frsky D16 reciever/Flysky 8ch AFHDS2A receiver/For dsm2/For dsm x receiver (option)
1* F3 flight controller
1* 6A BLHeli_S Dshot 2 In 1 ESC
4* Eachine 1102 KV11500 brushless motor
4* 38.1mm 4-blades propeller
1* 600TVL camera
1* 5.8g 25MW 48CH NTSC/PAL Video transmitter
1* battery
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2) Payment must be made within 15 days of order.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 15 days.

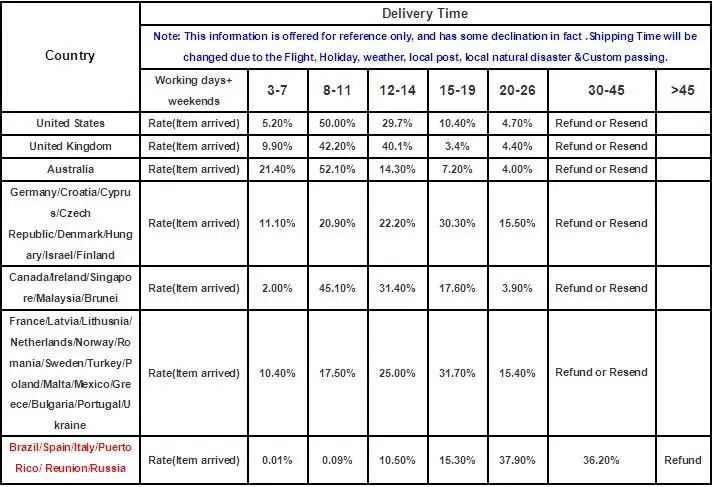

Item are shipped within 5 business days once full payment is settled.If you can't get your items in time,please contact to us first,we wil check and solve it for you soon.We will reply your mail within 24 hours normally. sometimes have a little delay due to the weekend or holiday.If you can't get our mail after 48 hours,please check your spam or contact to us with other mail address.
