Support DC current , AC Current , DC Voltage , AC Voltage Test
Overview:
Overview:
This is a pocket-sized 3 5/6-digit automatic digital meter.
It has stable performance, high precision, high reliability, clear reading and overload protection.
Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply.
Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.
The meter is easy to carry and is very popular among users.
The instrument's backlight can be turned on and off automatically after 15 seconds.
This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS.
It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.
Features:
| Function | |
| DC voltage DCV | √ |
| AC voltage ACV | √ |
| DC current DCA | √ |
| AC current ACA | √ |
| Resistor / Diode / On-Off Test / Capacitor | √ |
| Frequency F | √ |
| Square wave output | √ |
| NCV | √ |
| Full unit symbol | √ |
| Backlight manual/Auto off | √ |
| True RMS measurement | √ |
|
Temperature |
√ |
| Flashlight lighting | √ |
Specifications:
1.DC voltage (DCV)
|
Accuracy Range |
6000counts | Resolution |
| 6V |
± |
0.001V |
| 60V | 0.01V | |
| 600V | 0.1V | |
| 1000V |
± |
1V |
2.AC voltage(ACV)
|
Accuracy Range |
6000counts | Resolution |
| 6V |
± |
0.001V |
| 60V | 0.01V | |
| 600V | 0.1V | |
| 750V |
± |
1V |
3.DC current (DC A)
|
Accuracy Range |
6000counts | Resolution |
| 60A |
± |
0.01A |
| 600A | 0.1A |
4.AC current
|
Accuracy Range |
6000counts | Resolution |
| 60A | 0.01A | |
| 600A | 0.1A |
5.Resistance (Ω)
|
Accuracy Range |
6000counts | Resolution |
| 600Ω |
± |
0.1Ω |
| 6kΩ |
± |
1Ω |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1kΩ | |
| 40MΩ |
± |
10kΩ |
6.Diode and continuity test
| Range | display value | test condition |

|
Diode forward voltage drop | Forward DC current is about 1mA, open circuit voltage is about 3V |
| The buzzer sounds long and the resistance of the test is less than (50±20) Ω. | Open circuit voltage is about 3V, press "SELECT" for two-speed function switching |
7.Capacitance(C)
|
Accuracy Range |
6000counts | Resolution |
| 60nF |
± |
10pF |
| 600nF | 100pF | |
| 6uF | 1nF | |
| 60uF | 10nF | |
| 600uF | 100nF | |
| 6mF |
± |
1uF |
| 30mF | 10uF |
8.Frequency measurement
|
Accuracy Range |
6000counts | Resolution |
| 10Hz |
± |
0.01Hz |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHZ | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 10MHz | 10kHz |
9.Temperature measurement ( °C/°F)
|
Accuracy Range |
6000counts | Resolution |
| (-20-1000 )℃ |
± |
1℃ |
| (0-1832 )℉ |
± |
1℉ |
Package Includes:

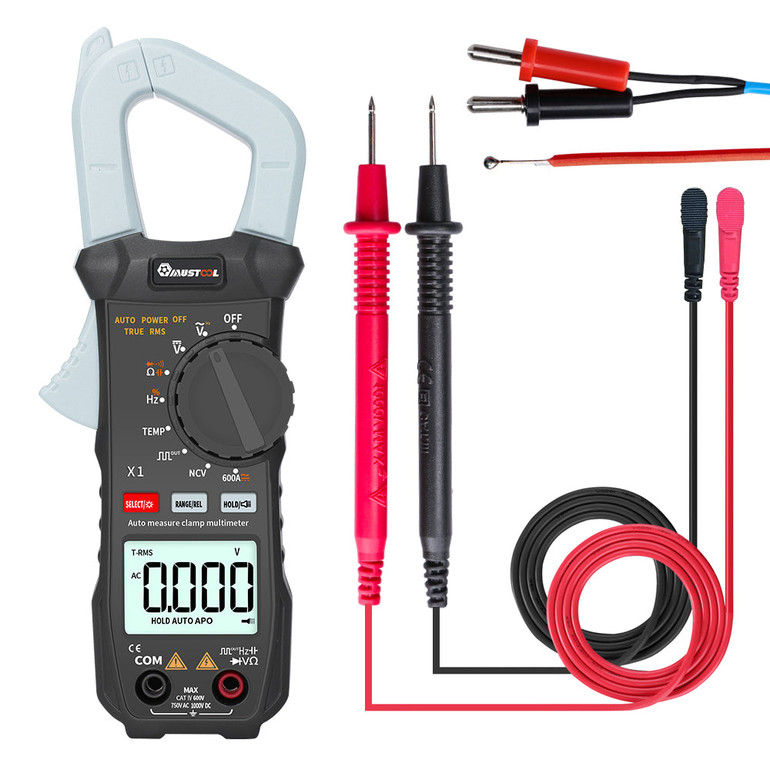

1 x MUSTOOL X1 Clamp Meter(battery not included)
1 x Test Leads
1 x Temperature Probe
1 x English User Manual
Detail Pictures:
