Language: English
Software Version: V2.1
Software Update: No
Hardware Version: Lastest
Item Type: Code Readers & Scan Tools
1.This is an auto diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.

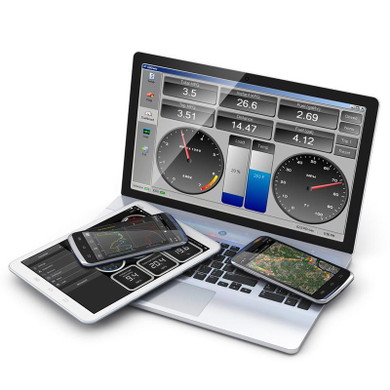

2.OBDII Scan Tool Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
3.The Automatic scanner is very user-friendly and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
4. To uninstall the program of Car Diagnostic Scanner, simply delete the entire contents of the folder where the program resides.
5.The Bluetooth scanner software supports four platforms - For DOS/Windows/Android. This product is a non-OEM, generic product.
Notice: This device can't work with the IOS system.

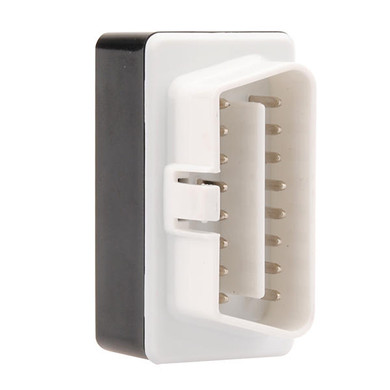

Mini Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols:
• Works with all OBD-II compliant vehicles
• Wireless (Bluetooth)
• Software included for Palm, PDA
• Software included for Windows PC
• Software included for Windows Smartphone
• Supports ISO 9141, KWP2000
• Supports SAE J1850
• Supports CAN bus
V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:
Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
SAE J1850 PWM (41.6 K baud)
SAE J1850 VPW (10.4 K baud)
ISO 9141-2 (5 baud init, 10.4 K baud)
ISO 14230-4 KWP (5 baud init, 10.4 k baud)
ISO 14230-4 KWP (fast init, 10.4 k baud)
ISO 15765-4 CAN (11 bit ID, 500 k baud)
ISO 15765-4 CAN (29 bit ID, 500 k baud)
ISO 15765-4 CAN (11 bit ID, 250 k baud)
ISO 15765-4 CAN (29 bit ID, 250 k baud)
Device type: Car Bluetooth read interface scanner
Interface type: Auto ELM327 V1.5 interface
V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:
1. Scantool.net
2. GM Mode 22 Scan Tool by Terry
3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
4. OBD Logger by Jonathan Senkerik
5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
6. obd2crazy.com
7. OBD2 Scantool by Ivan Andrewjeski
8. OBDII for ELM322 by David Huffman
9. pyOBD by Donor Sizemore for MacOSX and Linux
10. RDDTC by Pete Kalinski
11. Real Scan by Brent Harris
12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
13. OBD by WDT
V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others
