Description:

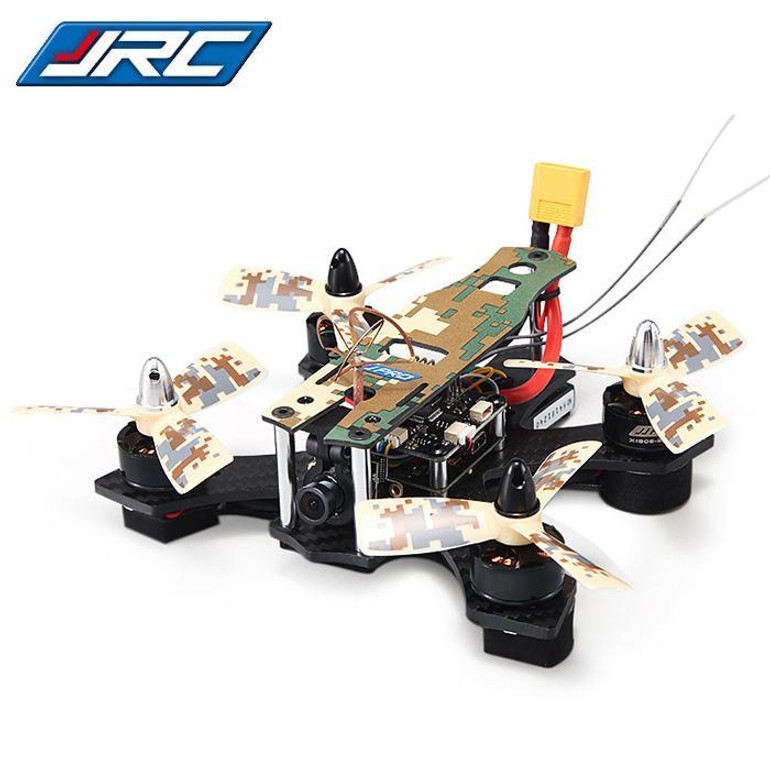

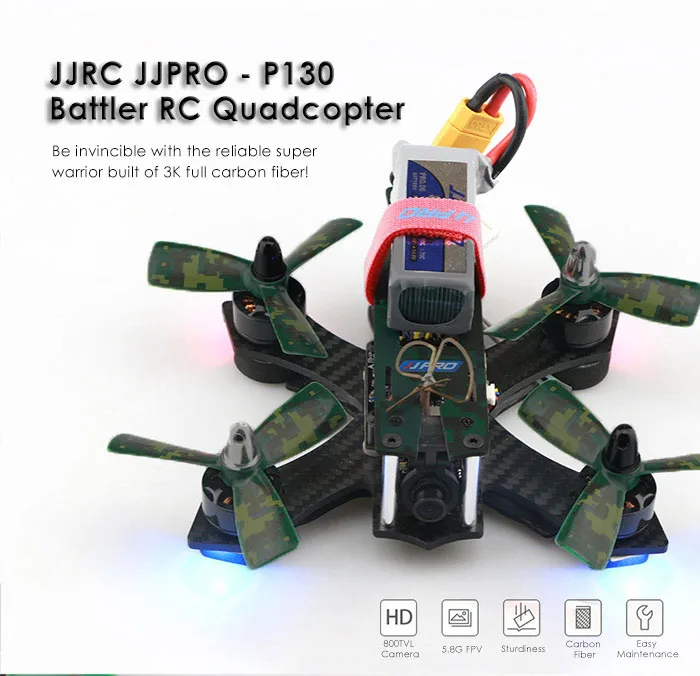

JJRC JJPRO - P130 Battler is a real warrior, standing out from the majority.
Firstly, this can be told from its aura of solemn camouflage, the color belongs to the army. Then, its unparalleled high-performance propulsion system and unprecedented flight controller. Finally, it impresses you with the 1000m extraordinarily long-distance control and spectacular responsiveness.
It is a perfect choice for the intermediate players.
Specifications:
Premium Carbon Fiber Airframe
- The dynamic camouflage color breaks the monotony of colors in a racing drone
- 3K full carbon fiber frame, extremely light and sturdy
- Considerate modular components, easy to maintain and dismantle
1806 2300KV Motor
- The 17g high-torque motor has a high-purity copper coil which significantly improves the efficiency
- High RPM bearings and rotors perform reliably, generating an amazing thrust of 200 - 350g
- Supports 2 - 3S LiPo, 13A maximum current, and 3 inch 3045 three-blade propeller
Flycolor 12A ESC
- Fairy Series 12A ESC for multicopters
- Innovative technology of current frequency conversion to drive MOSFET, being smaller, lighter and more efficient
- 8 kinds of motor timing ( 0 - 26.25 degree ) are available, offering you various choices of RPM and torque
- Original algorithms lead to fast processing speed, smooth and linear motor responses
- BLHeli firmware supports Oneshot and upgrades
- 12A maximum continuous current, 18A instantaneous current; supports 2 - 4S LiPo
- Excellent anti-blocking function
- Incorporates 5V 1A BEC and weighs 9.5g
NAZE32 SP Racing F3 DELUXE Flight Controller
- The state-of-the-art flight controller supports Oneshot ESC and more than 8-channel remote control
- Capable of running all the I/O ports at the same time
- Supports onboard black box flight logging and Oneshot ESCs

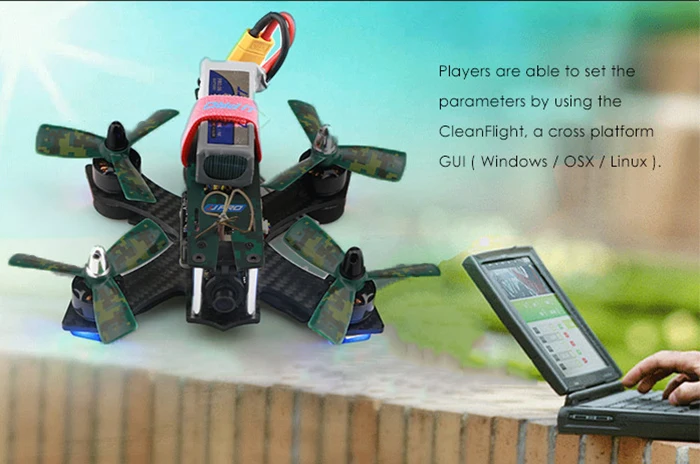

- With CleanFlight, configurable via a cross-platform GUI ( Windows / OSX / Linux )
- Developer-friendly debugging port ( SWD ) and boot mode selection
- Mini size, only 35 x 35mm, with a weight of 6g
Transmitter Receiver Set

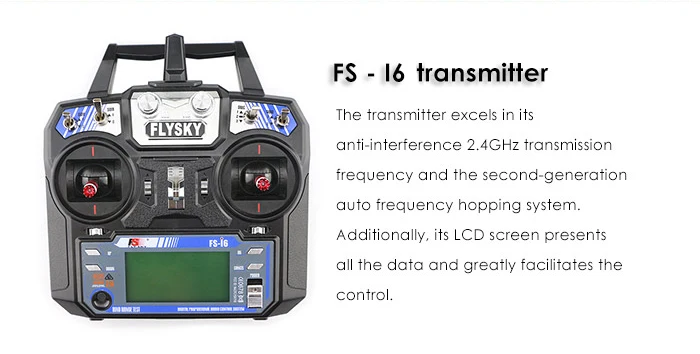

FS - I6 Transmitter
Channels: 6
RF range: 2.4055 - 2.475GHz
RF power: less than 20dBm
RF channels: 160
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Modulation type: GFSK
Resolution: 1024
Low voltage warning: yes, when lower than 4.2V
Data output: PS2 PPM
Antenna length: 26mm ( built-in dual antenna )
Weight: 392g
Power supply: 4 x 1.5AA ( 6V DC, not included ), nonchargeable
Display: 128 x 64px transflective STN positive screen with backlight, VA 73 x 39mm
Online update: yes
Size: 174 x 89 x 190mm
Color: black
Certificate: CE0678, FCC
FS - IA6 Receiver
Channels: 6
RF range: 2.4 - 2.48GHz
RF channel: 140
RF receiver sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation type: GFSK
Power: 4.0 - 6.5V DC
Antenna length: 26mm ( built-in dual antenna )
Weight: 7g
Size: 40.4 x 21.1 x 7.35mm
Certificate: CE0678, FCC
5.8G FPV Camera Set
Contents: camera, transmitter, antenna, and cable
Size: 18 x 16.5 x 8mm ( not including antenna )
Weight: 6.8g
- Camera
Sensor: 1/3 inch CMOS
Lens: M8 800TVL
FOV: 150 degree wide-angle
TV system: NTSC / PAL switchable
Voltage supply: 3.6 - 5.5V
Channels: 40 ( including RaceBand )
- Built-in FPV Transmitter
TV system: NTSC / PAL
Output power: 25W
Operating voltage: 3.6 - 5.5V
| General | |
| Brand | JJRC |
| Type | Flight Controller,ESC,Motor,Propeller,Body Frame,Camera Set,Transmitter Receiver Set,Power Distribution Board,Propeller Clip |
| Motor | |
| KV | 2300KV |
| Max. Continuous Current (A) | 13A |
| No. of Cells | 2 - 3S LiPo |
| Flight Controller | |
| Remote Controller Specifications | |
| Channel | 6-Channels |
| Remote Control | 2.4GHz Wireless Remote Control |
| Mode | Mode 2 (Left Hand Throttle) |
| Detailed Control Distance | 1000m |
| Transmitter Power | 4 x 1.5V AA battery(not included) |
| Camera | |
| Video Resolution | 800TVL ( horizontal resolution ) |
| Video Standards | PAL,NTSC |
| Electronic Speed Controller | |
| Battery | |
| Battery (mAh) | 11.V 850mAh |
| Flying Time | about 5mins |
| Charging Time. | less than 120 minutes |
| Propeller | |
| Balance Charger | |
| Transmitter | |
| Charger Informations | |
| Dimension and Weight | |
| Product weight | 1.0000 kg |
| Package weight | 1.2000 kg |
| Product size (L x W x H) | 36.50 x 20.00 x 9.00 cm / 14.37 x 7.87 x 3.54 inches |
| Package size (L x W x H) | 44.50 x 27.00 x 12.00 cm / 17.52 x 10.63 x 4.72 inches |
| Package Contents | |
| Package Contents | 1 x Airframe, 4 x Motor, 4 x ESC, 1 x Flight Controller, 1 x PDB, 4 x LED Light, 1 x FPV Camera Set, 1 x Battery Set, 8 x Three-blade Propeller, 1 x Propeller Puller, 1 x Transmitter Receiver Set, 1 x Charger |
