FQA:
It’s Original Xiaomi?
Yes, this is 100% Original Xiaomi brand, we are Xiaomi authorized exclusive store.
The Xiaomi Router 3 is English language?
Yes, Xaiomi Router 3 is English version, it’s English language, and with a English Instruction Manual. ( Note: the packing is Chinese)
Can I upgrade the router to latest version?
The Router 3 is the latest English version, don\'t need to upgrade again.
The Xiaomi router 3 Support ADSL?
No, don’t Support ADSL.
The Xiaomi Router Support SIM Card?
No, don’t Support SIM Card.
How to set up the Xaiomi router 3?
Scan QR code on the specification, according to the prompt operation, it\'s very simple.
Time of shipment?
We have in stock, Usually we will ship out within 24 hours.
With Tracking number?
Yes, package with a effective tracking number.

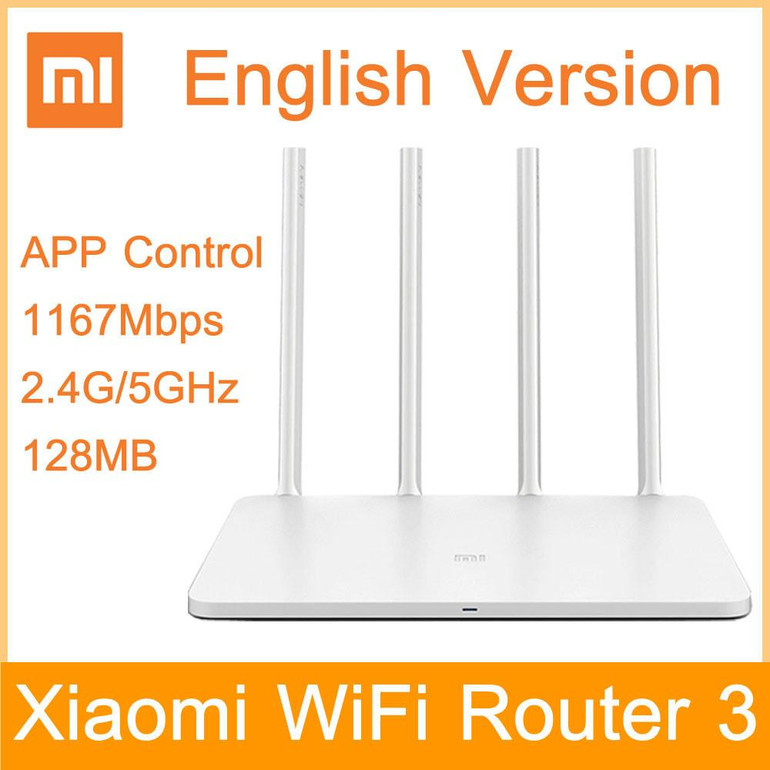

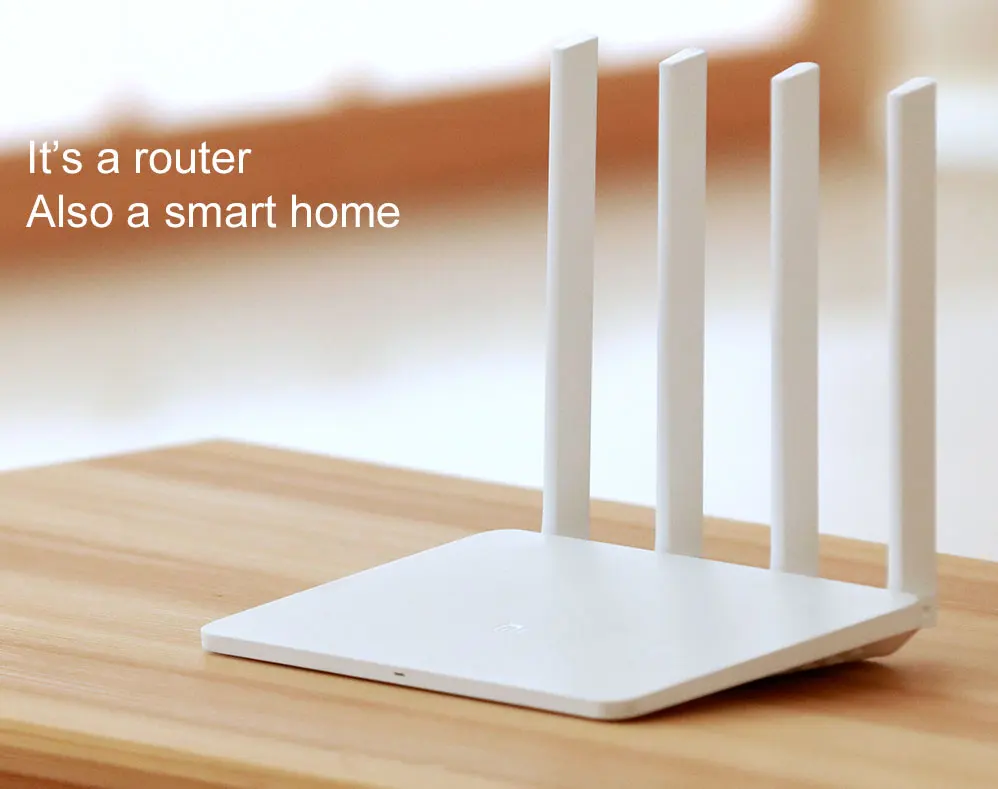

Main Features:
4 external omni-directional multi vibrator high gain antenna separate 2.4GHz and 5GHz antenna. 802.11ac dual band concurrent, 3 times faster than ordinary WiFi, WiFi signal is stronger with more coverage, 128MB large Flash configuration, exclusive App easy to use and funny, anywhere convenient to manage.
- Processor: MT7620A
- ROM: 128MB SLC Nand Flash
- Memory: 128MB DDR2
- 2.4G WiFi : 2X2 (IEEE support 802.11N protocol, the highest rate of up to 300Mbps)
- 5G WiFi: 2X2 (IEEE support 802.11AC protocol, the highest rate of up to 867Mbps)
- Antenna : An omnidirectional multi vibrator high gain antenna 4 (2.4G 5dBi 2 5G - maximum gain maximum gain of 6dBi 2)
- 2.4GHz and 5GHz dual frequency
- Protocol standard: IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
- Wireless security: WPA-PSK/WPA2-PSK encryption, wireless access control (black list), SSID hide.
Machine interface
1*USB 2 interface (DC output:5V/1A)
2*10/100M LAN (Auto MDI/MDIX) adaptive
1*10/100M WAN (Auto MDI/MDIX) adaptive
1*red / Blue / yellow lights LED
1*system restore factory settings button
1*power input interface

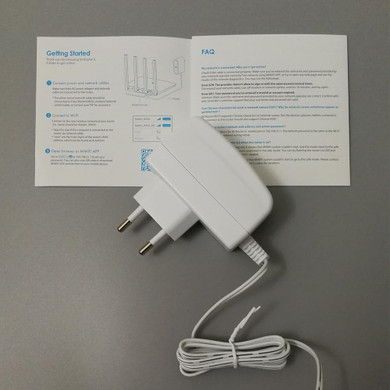

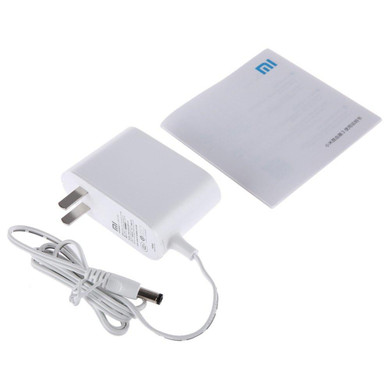

Package include:
1 x Xiaomi Router 3
1 x Power (12V/1A)*1
1 x English Instruction Manual
A new four antenna design, 802.11ac dual band concurrent, 3 times faster than ordinary WiFi, 128MB large Flash configuration, exclusive App easy to use and funny, anywhere convenient to manage
Antenna as a core component, is particularly important for the quality of router signal. We used 4 external omni-directional multi oscillator high gain antenna for the Mi router. This antenna design in the dual frequency performance enhancement is particularly good, 2.4GHz maximum gain of 5GHz, 5dBi is up to 6dBi, the signal gain is more than ever before.
As home Internet equipment is increasing, the stability of the router is particularly important. Our breakthrough mi router 3 Internal Flash capacity upgrade to 128MB, 8 times the upgrade of the general router not only bring up to 126 Internet equipment Connection, but also for the stable operation of more functional plug-ins to provide a guarantee, effectively reduce the number of times the router to restart.
Internet control
Network world is too exciting. If you are worried that your children may addict to the net world, you can set fixed time for the child\'s access to the Internet through the router App equipment , and plan scientific and rational schedule.
WiFi- anti freeloader
If a new device connects to your router, your App will receive a message notification. If it is not an equipment from your family, you can easily pull the stranger into blacklist to protect security of your WiFi at home.
Anti leakage
Automatic interception of local area network virus / Trojan network request, to prevent the virus / Trojan upload user privacy data
Anti crack
Automatic intercept any attempts to crack the router device. Prevent tampering with the router configuration and protect network security
Anti virus
Automatic detect if there is a risk of virus for the terminal download file
Anti hijacking
Prevent router domain name resolution
Be hijacked to phishing sites, Trojan sites
Anti malicious web site
Automatically block the presence of malicious code of the site. Prevent the use of browser vulnerabilities implanted virus and protect the system security
Manage your router anytime and anywhere.
Please download the App from Google Play/App Store or by scanning the QR code below;
PC/Mac client can be downloaded from miwifi .com.
| Hardware Configuration | Processor | MT7620A |
| ROM | 128MB SLC Nand Flash | |
| Memory | 128MB DDR2 | |
| 2.4G WiFi | 2X2 (IEEE support 802.11N protocol, the highest rate of up to 300Mbps) | |
| 5G WiFi | 2X2 (IEEE support 802.11AC protocol, the highest rate of up to 867Mbps) | |
| Antenna | An omnidirectional multi vibrator high gain antenna 4 (2.4G 5dBi 2 5G maximum gain maximum gain of 6dBi 2) | |
| Cooling system | Natural cooling | |
| Wireless Parameter | 2.4GHz and 5GHz dual frequency | |
| Do not support beamforming | ||
| Wireless Channel | 2.4GHz Channel : 1,2,3,4,5,6,7,8,9,10,11,12,13 | |
| 5GHz Channel: 149,153,157,161,165 | ||
| 5GHz DFS Channe: 36,40,44,48,52,56,60,64 | ||
| Modulation Mode | 11b : DSSS : DBPSK(1Mbps),DQPSK(2Mbps), CCK(5.5/11Mbps) | |
| 11a/g : OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps), | ||
| 11n : MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. | ||
| Rate: MCS0~MCS15 | ||
| 11ac : MIMO-OFDM:BPSK, QPSK,16QAM,64QAM,256QAM. | ||
| Rate: MCS0~MCS9 (support 2 spatial streams) | ||
| Receiving sensitivity | 11Mbps:≤-90dBm,54 Mbps:≤-72dBm, | |
| HT20 MCS7:≤-69dBm, | ||
| HT40 MCS7:≤-66dBm, | ||
| VHT20 MCS8:≤-65dBm, | ||
| VHT40 MCS9:≤-60dBm, | ||
| VHT80 MCS9:≤-58 dBm | ||
| Software Parameters | operating system | OpenWRT customized intelligent router operating system MiWiFi ROM, Android, iOS, Web Windows, OS X system management software based on Router |
| Support language | English / Simplified Chinese(English Only Android and IOS APP) | |
| senior management | For advanced users / developers to provide root access router and provi de native toolchain and SDK | |
| Wireless security | WPA-PSK/WPA2-PSK encryption, wireless access control (black list), SSID hide. | |
| Open platform | Support thunder, Sogou plug-in, plug- in development tools provide third party developers | |
| Management Applications | support Web / Windows / Android / MacOS / iOS | |
| Machine interface | 1*USB 2 interface (DC output:5V/1A) | |
| 2*10/100M LAN (Auto MDI/MDIX) adaptive | ||
| 1*10/100M WAN (Auto MDI/MDIX) adaptive | ||
| 1*red / Blue / yellow lights LED | ||
| 1*system restore factory settings button | ||
| 1*power input interface | ||
| Product Accessories | Manual*1 | |
| Warranty service card *1 | ||
| Power (12V/1A)*1 | ||
| Protocol standard | IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u | |
| Certification Standard | GB9254-2008 YD/T993-1998 GB4943.1-2011 | |
| Work Environment | Working environment temperature | 0-40 degree Celsius |
| Working humidity | 10%-90%RH (not condensed) | |
| Storage temperature | -40-70 degree Celsius | |
| Storage humidity | 5%-90%RH (not condensed) | |
| Consumption | 12W (MAX) | |
| Warranty | 1 year | |
