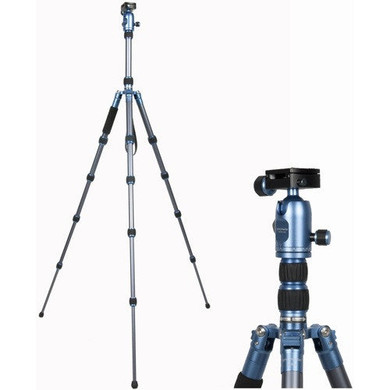

The PROMASTER XC-M 525 tripod's 5-section, transverse legs fold 180° making the entire unit just over 15" long for storage and travel. Yet, fully extended it reaches an incredible working height of nearly 6'! Each leg's angle and length are independently adjustable, allowing the XC-M 525 to properly support your camera on uneven ground. Its dual-action ball head is strong, precise, and lightweight with an independent pan control. It has an integrated memory lock for repeatable tension control and uses ProMaster's dovetail quick release system for a fast camera connection.
The XC-M 525 is more than just a tripod, it's part of an expansive modular system.
FEATURES:
- Built-in monopod
- Transverse 180° folding legs

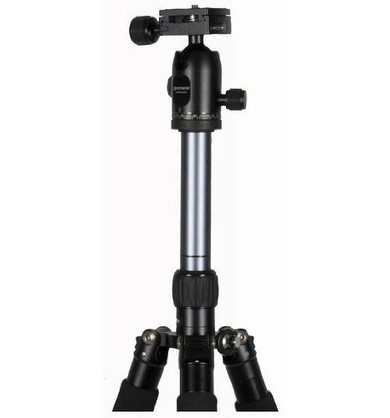

- Dual-action ball head with tension memory lock
- Independently adjustable leg angles
- 2-Stage, reversible center column
- Bubble levels on tripod and ball head
- Retractable weight hook
- ProMaster dovetail Q/R system (arca-swiss compatible)

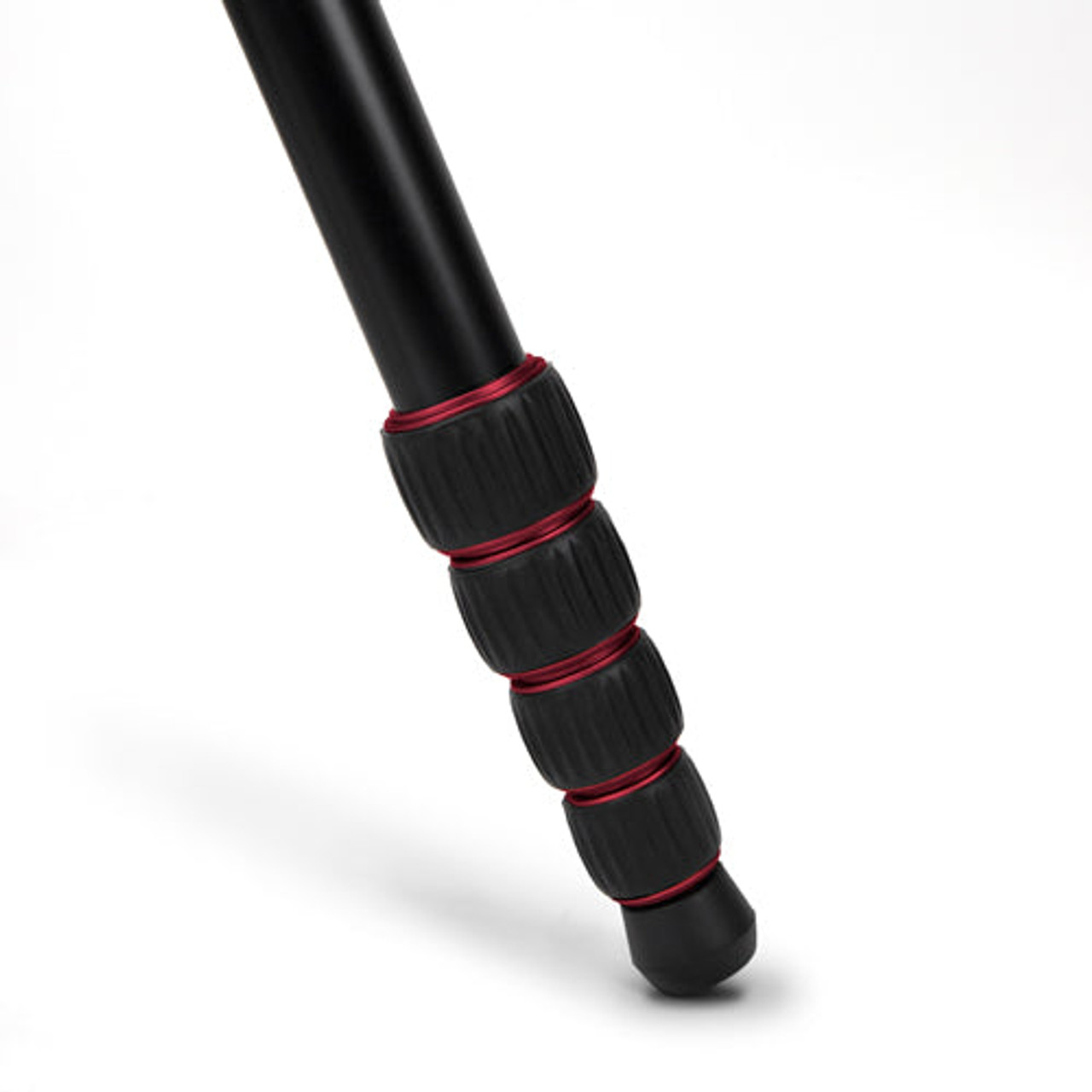

- Soft, comfortable grips on touch points
- Modular design is expandable & customizable
KIT SPECIFICATIONS
-
Maximum Working Height: 70 3/8" / 178.8 cm
-
Maximum Height with Column Down: 54 1/4" / 137.8 cm
-
Minimum Working Height: 15 1/8" / 38.4 cm *Minimum working height can be improved to 6 1/4" / 15.88 cm by adding a 3531 XC-M 525 Ground Level Adapter (sold separately)
-
Folded Length: 15" / 38.1 cm
-
Maximum Load: 17 lbs 10 oz / 8 kg
-
Weight: 3 lbs 4 7/8 oz / 1.5 kg
-
Cold Weather Performance: -4° F / -20° C
- 5-Section Aluminum Legs
* Kit specifications include tripod with head attached
BALL HEAD SPECIFICATIONS
-
Height: 3 1/4" / 8.3 cm
-
Base Diameter: 1 13/16" / 4.6 cm
-
Weight: 8 5/8 oz / 245 grams
TRIPOD LEG SPECIFICATIONS
-
Maximum Working Height: 67 1/8" / 170.5 cm
-
Maximum Height with Column Down: 51" / 129.5 cm
-
Minimum Working Height: 11 7/8" / 30.1 cm
- Leg Angles: 20° / 50° / 80° / 180°
- Platform Diameter: 1 9/16" / 4 cm
-
Folded Length: 15" / 38.1 cm
-
Weight: 2 lbs 12 1/4 oz / 1.25 kg
For storage, protection, and transport use the following tripod case options:
- ProMaster TC-16 (product 4987) - when the tripod is fully folded in it's transverse leg position
- ProMaster TC-21 (product 5344) or TC-24 (product 5001) - when the tripod is collapsed but head and column are in their normal, photography position. Please note: the TC-21 is a great fit when the ball head is moved to its vertical position, making it just a smidge shorter. Otherwise the TC-24 is a great fit with ample room.
