Supply Voltage: 5V;Condition: Used;Operating Temperature: -40-+85;Type: Voltage Regulator;is_customized: Yes;Application: Computer;Dissipation Power: 10W;Model Number: 0.28VO;Brand Name: TZT teng;Operating voltage: 4.0 - 40V;Detection voltage: 0.0 - 100V;Operating Current: <20mA;Dimensions: 30*11.7*9.2 mm;Working temperature: -10-65;

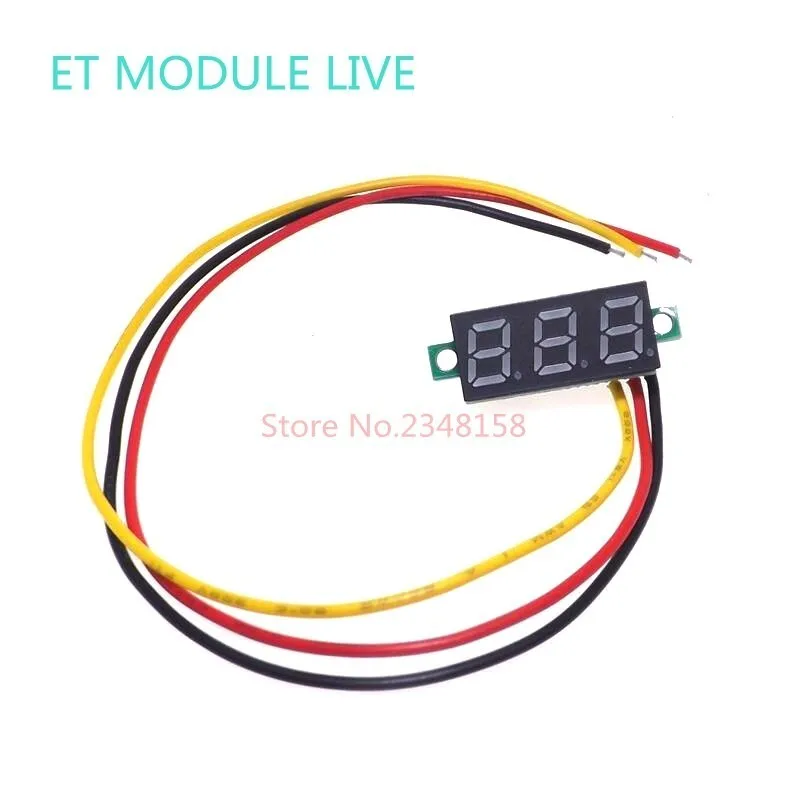

0.28 Inch Mini Digital Voltmeter
The delivery default red You need to specify the color and formats, please click on the picture fllow:
The voltmeter is small, only 0.28 inches, range DC DC0-100V, 2 and 3-wire generic products, to break the routine voltmeter, is the latest design, can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn. Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.
Feature:
1. product stability, high measurement accuracy
2. Overall standard size, easy installation
3. Power supply protection circuit using a polar
NOTE: Three-line voltage range 0-100V, but also for the use of second-line voltage is within 40V, otherwise there is a danger of burning.
Technical Parameters:
Operating voltage: 4.0 ~ 40V (with a reverse polarity protection function)
Detection voltage: 0.0 ~ 100V
Operating Current: <20mA
Display: 0.28 "LED, red green blue yellow (colors)
Dimensions: 30 × 11.7 × 9.2 mm (length*width*height)
Installation hole: 23 × 10 mm
Measurement rate: ≥200mS / times
Accuracy: 3 ‰
Extreme working conditions
Low operating voltage: + 4.0V
Maximum working voltage: + 40V
Working temperature: -10 ~ + 65
Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
