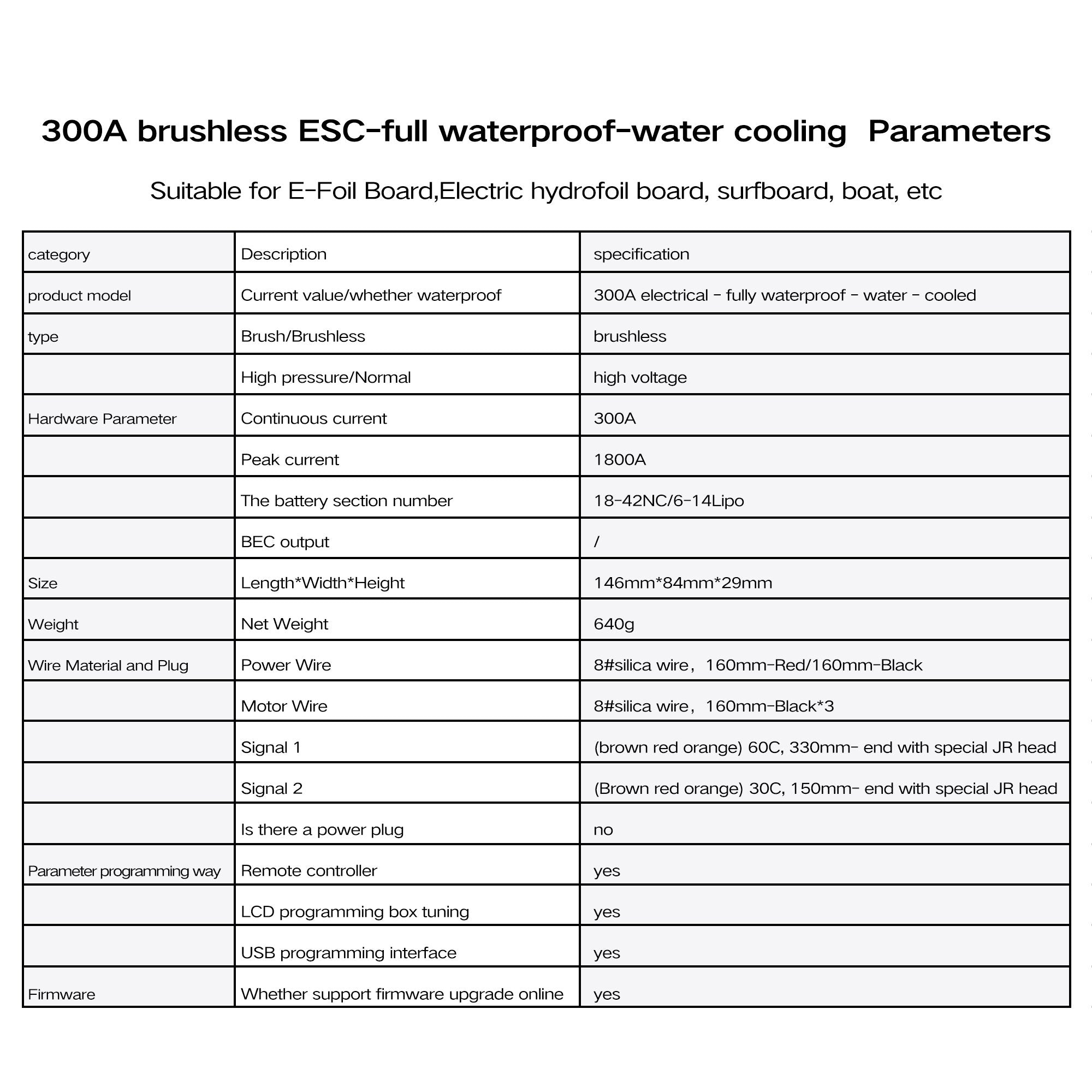

Parameters
Suitable for E-Foil Board,Electric hydrofoil board, surfboard, boat, etc
|
category |
Description |
specification |
|
product model |
Current value/whether waterproof |
300A electrical - fully waterproof - water - cooled |
|
type |
Brush/Brushless |
brushless |
|
|
High pressure/Normal |
high voltage |
|
Hardware Parameter |
Continuous current |
300A |
|
|
Peak current |
1800A |
|
|
The battery section number |
18-42NC/6-14Lipo |
|
|
BEC output |
/ |
|
Size |
Length*Width*Height |
146mm*84mm*29mm |
|
Weight |
Net Weight |
640g |
|
Wire Material and Plug |
Power Wire |
8#silica wire，160mm-Red/160mm-Black |
|
|
Motor Wire |
8#silica wire，160mm-Black*3 |
|
|
Signal Wire |
(brown red orange) 60C, 330mm- end with special JR head |
|
|
Signal 2 |
(Brown red orange) 30C, 150mm- end with special JR head |
|
|
Is there a power plug |
no |
|
Parameter programming way |
Remote controller |
yes |
|
|
LCD programming box tuning |
yes |
|
|
USB programming interface |
yes |
|
Firmware |
Whether support firmware upgrade online |
yes |
|

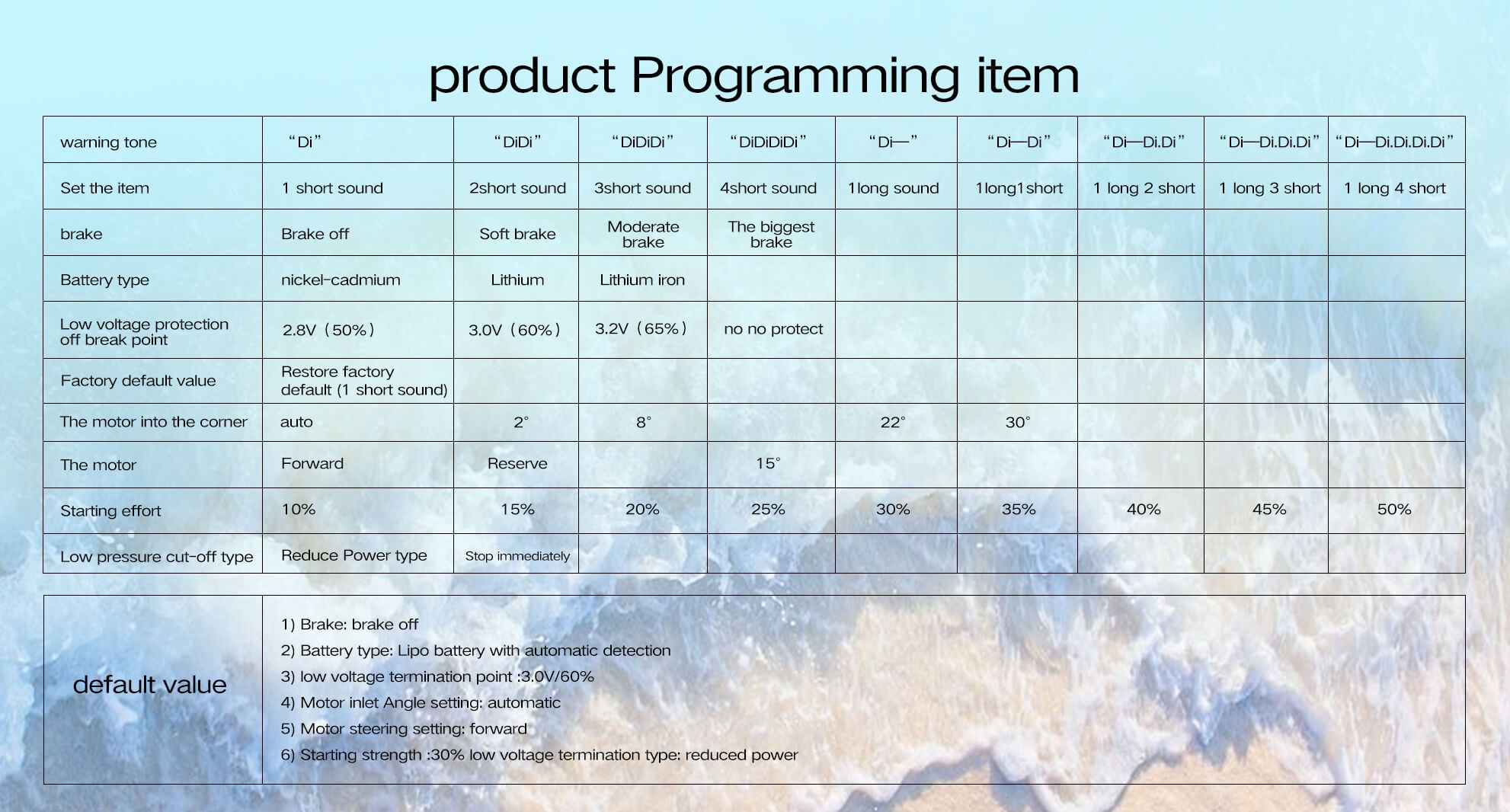

product item |
warning tone |
“Di” |
“DiDi” |
“DiDiDi” |
“DiDiDiDi” |
“Di—” |
“Di—Di” |
“Di—Di.Di” |
“Di—Di.Di.Di” |
“Di—Di.Di.Di.Di” |
|
Set the item |
1 short sound |
2short sound |
3short sound |
4short sound |
1long sound |
1long1short |
1 long 2 short |
1 long 3 short |
1 long 4 short |
|
|
brake |
Brake off |
Soft brake |
Moderate brake |
The biggest brake |
|
|
|
|
|
|
|
Battery type |
nickel-cadmium |
Lithium |
Lithium iron |
|
|
|
|
|
|
|
|
Low voltage protection off break point |
2.8V（50%） |
3.0V（60%） |
3.2V（65%） |
no no protect
|
|
|
|
|
|
|
|
Factory default value |
Restore factory default (1 short sound) |
|
|
|
|
|
|
|
|
|
|
The motor into the corner |
auto |
2° |
8° |
15° |
22° |
30° |
|
|
|
|
|
The motor |
Forward |
Reserve |
|
|
|
|
|
|
|
|
|
Starting effort |
10% |
15% |
20% |
25% |
30% |
35% |
40% |
45% |
50% |
|
|
Low pressure cut-off type |
Reduce Power |
Stop immediately |
|
|
|
|
|
|
|
|
|
default value |
Brake: brake off Battery type: Lipo battery with automatic detection low voltage termination point :3.0V/60% Motor inlet Angle setting: automatic Motor steering setting: forward 6) Starting strength :30% low voltage termination type: reduced power |
|||||||||
Product features:
Ultra high reliability and durability
All aluminum metal shell, the appearance of more exquisite texture. The solid hardware foundation combined with more advanced software enables the electric modulation to provide extreme violence output and significantly reduce the probability of electrical modulation damage under high load. The protection of voltage undervoltage, overtemperature and throttle out of control escorts the electric modulation. Industrial-grade MCU and optimized code have fast response speed and smooth overall operation; Ultra-smooth and accurate throttle linear, remote signal loss protection; Reliability, durability and practicality are greatly improved.
Stable and reliable heat dissipation system
Custom-made heat sink and copper sheet heat conduction technology, with good thermal conductivity and water cooling module, and add a water pipe at the MOS tube on the power plate, to build a super-high and reliable heat dissipation system, to ensure that the electrical control is always in the best heat dissipation state.
Industrial grade full waterproof design
Full waterproof level, water cooling design, excellent heat dissipation effect; Full protection of electrical modulation, even in various extreme environments, can easily cope with.
Safe power on and overtemperature protection
When the power is switched on, no matter the throttle lever of the remote control is in any position, the motor will not start immediately to prevent sudden rotation of the motor; When the temperature exceeds 110℃, the output power will be automatically reduced. Output recovers when the temperature is below 110℃.
